Description
Features

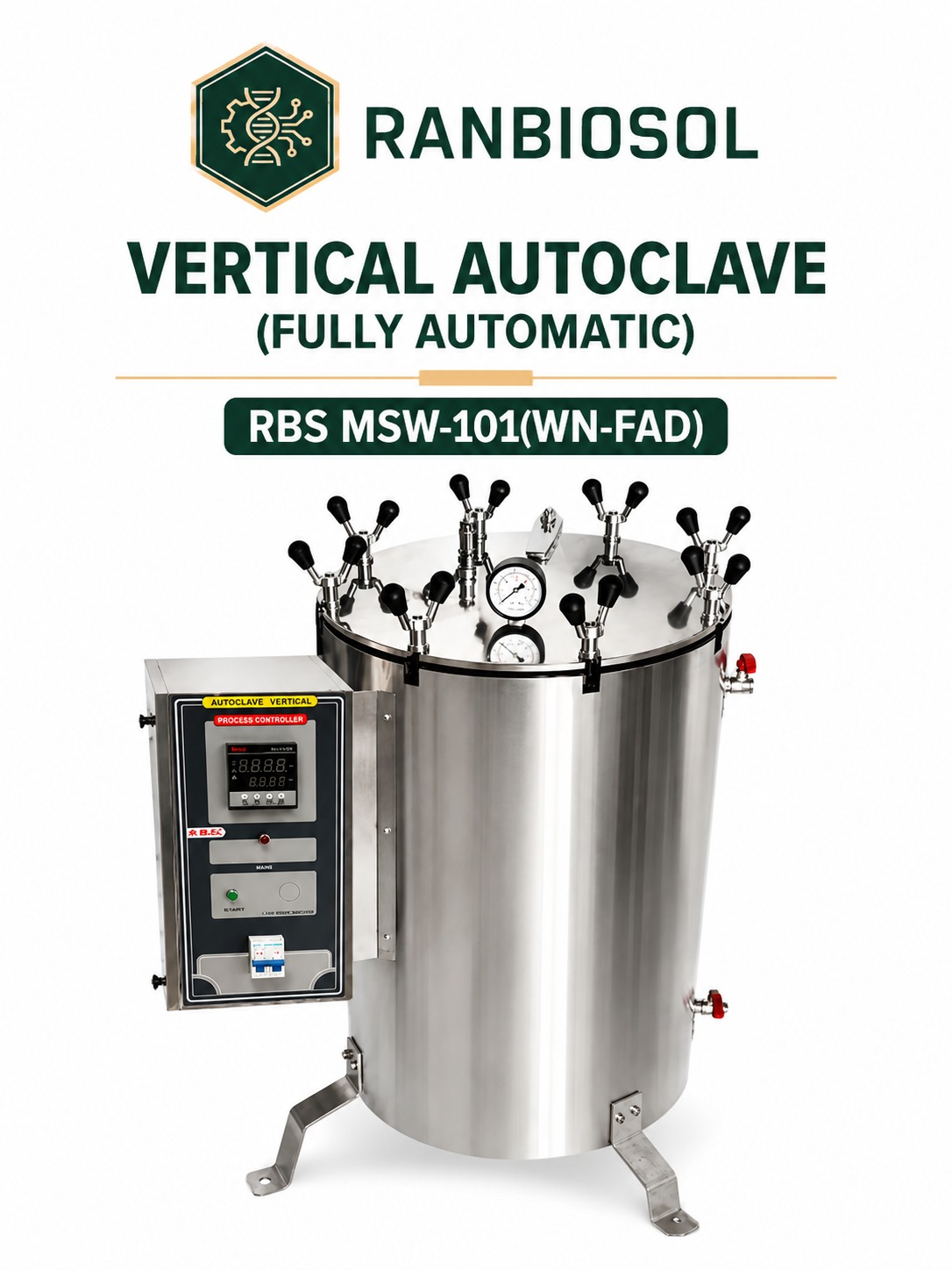

- MAC Fully Automatic Vertical Autoclave are most ideal for critical applications requiring assured and reliable total destruction of all living micro-organisms.
- These are fully automatic models requiring no human intervention till a full sterilization cycle is over.
- An Ideal tool for Laboratories, hospitals, nursing homes, R & D labs etc.
- Heaters cover stand and carrier/bucket are made of Stainless Steel.
- With outer wall, inner chamber and lid made of stainless steel.
- Lid is closed through WING NUT CLOSING ARRANGEMENT and is supplied with a stainless steel basket but fitted with drain valve and mains cord.
- Mounted on mild steel support legs.
- Lid is fitted with Pressure Gauge, Spring Loaded Safety Valve, Manual Exhaust Valve, Vacuum Breaker-cum-Purge Valve as a safety device and water level indicator.
- Drain Valve facilitates easy cleaning of the chamber.
- All internal joints are argon arc welded, ground and polished to give crevice free internals.
- Operating range from 15 to 20 psi pressure (adjustable).
- Audio visual alarm and heater cut off in case of low water for the safety of the heater elements.
- Industrial grade energy efficient heaters reduce power bills drastically.
- Accurate temperature control with user leve flexibility. Display process and set values simultaneously.
- Microprocessor based automatically fuzzy logic control system with alphanumeric digital backlit LCD display.
- Automatic steam purging and exhaust.
- Fitted with AUTOMATIC DIGITAL MINUTE TIMER which starts automatically when set/desired value of temperature is achieved. When the set time period is over the heaters get switched off automatically with alarm for cycle end.
- To work on 220/230Volts, 50/60 Hz AC supply.
Technical Specifications & Ordering Informations
| Model | RBS AVF-28(WN) | RBS AVF-43(WN) | RBS AVF-64(WN) | RBS AVF-91(WN) | RBS AVF-135(WN) | RBS AVF-210(WN) |
|---|---|---|---|---|---|---|
| Inner Dimensions (Dia x Height) | Ø250x450mm | Ø300x500mm | Ø350x550mm | Ø400x600mm | Ø450x710mm | Ø550x760mm |
| Capacity | 28/22 Ltrs. | 43/40 Ltrs. | 64/53 Ltrs. | 91/78 Ltrs. | 135/113 Ltrs. | 210/187 Ltrs. |
| Heater Load | 2.0 KW | 3.0 KW | 3.0 KW | 4.0 KW | 4.0 KW | 5.0 KW |
| Controller (PLC Based) | µProcessor Based Fully Automatic Fuzzy Logic Control System | |||||
| Display | 16×2 line Alphanumeric Digital LCD with backlet display with Set Value (SV) and Process Value (PV) | |||||
| Timer (Auto Time Control) & Buzzer | Fitted with AUTOMATIC DIGITAL MINUTE TIMER which starts automatically when set/desired value of temperature is achieved. When the set time period is over the heaters get switched off automatically with alarm for cycle end. | |||||
| Sterilizing Pressure | 1.2 kgf /cm² (15 psi) at 121°C | |||||
| Operating Pressure | From 15psi to 22 psi (Adjustable) | |||||
| MOC (Pressure Vessel) | Stainless Steel (SS-304) | |||||
| MOC (External Wall) | Stainless Steel | |||||
| MOC (Top Lid) | Thick machined Stainless Steel plate | |||||
| Basket | Stainless Steel (SS-304) | |||||
| Power Supply | 220/230V AC, 50/60Hz | |||||
