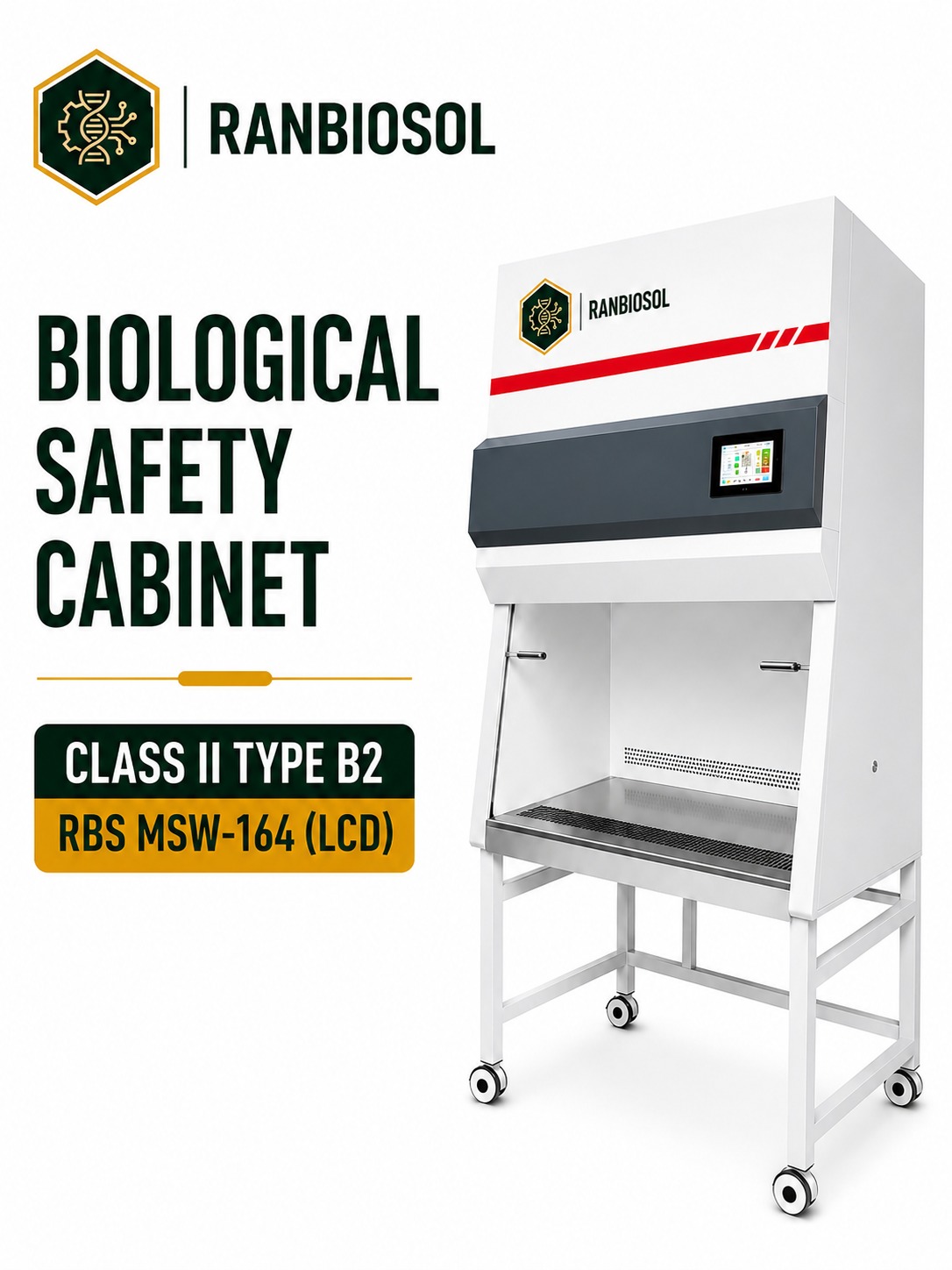

Description
Features
- 100% air exhaust
- Negative pressure air surrounding all biological contaminated parts
- Class II, Type B2 cabinets are total exhaust cabinets, widely used in toxicology laboratories and similar applications where chemical effluent is present and clean air is essential.
- No recirculation within the work area
- Room air enters through a blower/motor in the top of the cabinet and passes through a HEPA supply filter into the work area as vertical unidirectional airflow
- Descending air is pulled through the base of the cabinet through perforated front and rear grilles
- Near 100% of the air is pulled into the facility exhaust system for appropriate treatment
- Hard-connected to an exhaust system
- Negative pressure surrounds the work area with double-wall plenums for protection
- Air drawn through pre-filter passes through highly effective HEPA filters (EU–14 Grade, efficiency >99.999% at 0.3 μ)
- Prefilter conforms to EU-4/G-4 Grade, efficiency 90% down to 10 micron
- Mounted on heavy tubular stand with lockable castors
- Aerodynamic airflow grills maintain safety and prevent blockage
- UV and fluorescent interlock available
- Ergonomic sloped front window for comfortable head and elbow rest
- Counterbalanced sash for smooth operation
- CLASS-II design ensures personnel, product, and environment protection
Exhaust System
Integral heavy-duty blower system exhausts 100% potentially contaminated air outside the cabinet.
Drain Trough with Valve
Easy to clean trough at base for offloading liquid spillage.
Upper & Front Cover
Removable covers simplify filter, blower, and control panel maintenance.
Decontamination by UV Lamp
UV lamp (253.7 nm) interlocked with sash and blower. Timer option available for controlled decontamination cycles.
Front Window/Sash
Toughened transparent glass for clear inside view.
Electric Supply Socket
Splash-proof sockets provided for convenience of using small electrical devices inside the cabinet.
Material of Construction
Work table: Stainless Steel (SS-304). Cabinet: Cold Rolled Steel powder coated or Stainless Steel (SS-304).
Front Airflow Intake Grid
Aerodynamically designed front airflow intake grid eliminates potential turbulence and contamination.
Drain Trough with Valve
Easy to clean trough at base for offloading liquid spillage.
Splash Proof Electric Supply Socket
Splash-proof sockets provided for convenience of using small electrical devices inside the cabinet.
Floor Stand
Heavy-duty tubular pipe, powder coated, with leveler.
Controller
Microprocessor Based Digital Controller with LCD display and air velocity sensor.
Technical Specifications & Ordering Informations
| Model (Cabinet: CRC) | RBS STERIMAX-2 (B2-CRC-LCD) | RBS STERIMAX-3 (B2-CRC-LCD) | RBS STERIMAX-4 (B2-CRC-LCD) | RBS STERIMAX-6 (B2-CRC-LCD) |
|---|---|---|---|---|
| Model (Cabinet: SS) | RBS STERIMAX-2 (B2-SS-LCD) | RBS STERIMAX-3 (B2-SS-LCD) | RBS STERIMAX-4 (B2-SS-LCD) | RBS STERIMAX-6 (B2-SS-LCD) |
| Inner Dimensions (W*D*H) | 600x610x675mm | 900x610x675mm | 1200x610x675mm | 1780x610x675mm |
| MOC | Internal Working Table : Stainless steel (SS-304). Exterior Cabinet : Cold Rolled Steel Duly Powder Coated or Stainless Steel (SS-304) (as ordered) | |||
| Controller | Microprocessor Based Digital Controller with LCD display with air velocity sensor | |||
| Pre Filter | Mounted on aluminium frame, Prefilter are made from Non-Woven Synthetic with HDPE mesh and Al expanded mesh on air leaving side; conforms to EU-4/G-4 Grade, with efficiency of 90% down to 10 micron. These filters can be cleaned by compressed air & also washable. Air drawn through pre-filter is made to pass through highly effective HEPA (High Efficiency Particular Air) filters. The prefilter fitted extends the life of HEPA filter drastically. | |||
| Exhaust Filter | Air drawn through pre-filter is made to pass through highly effective HEPA (High-Efficiency Particular Air) filters. The prefilter fitted extends the life of the HEPA filter drastically. Fitted with HEPA Filter made from water-resistant, fire retardant, imported micro fine glass fibre media; conforms to EU – 14 Grade, with an efficiency rating better than 99.999% for 0.3 μ. These filters are designed to accommodate higher air flow volume. | |||
| Supply/Main Filter | Fitted with HEPA Filter made from water resistant, fire retardant, imported micro fine glass fibre media; conforms to EU – 14 Grade, with an efficiency rating better than 99.999% for 0.3 μ. These filters are designed to accommodate higher airflow volume. | |||
| Sash Lift | Can be lifted and adjusted manually | |||
| Electrical Socket | Electrical Socket is provided for using small electrical devices | |||
| Heavy Duty Exhaust System | Standard fitted to the system for 100% exhaust | |||
| Power Supply | 220/230 Volts AC supply | |||
Options
- Magnehelic Gauge (extra cost)
- Electronic Filter choke alarm
- TFT Touch Screen Display Controller with air velocity sensor
- Medical lockable castor
- Gas Burner
- Exhaust ducting per running feet
- Virus burn out
- Motorized sash lift (extra cost)
