Description
Description

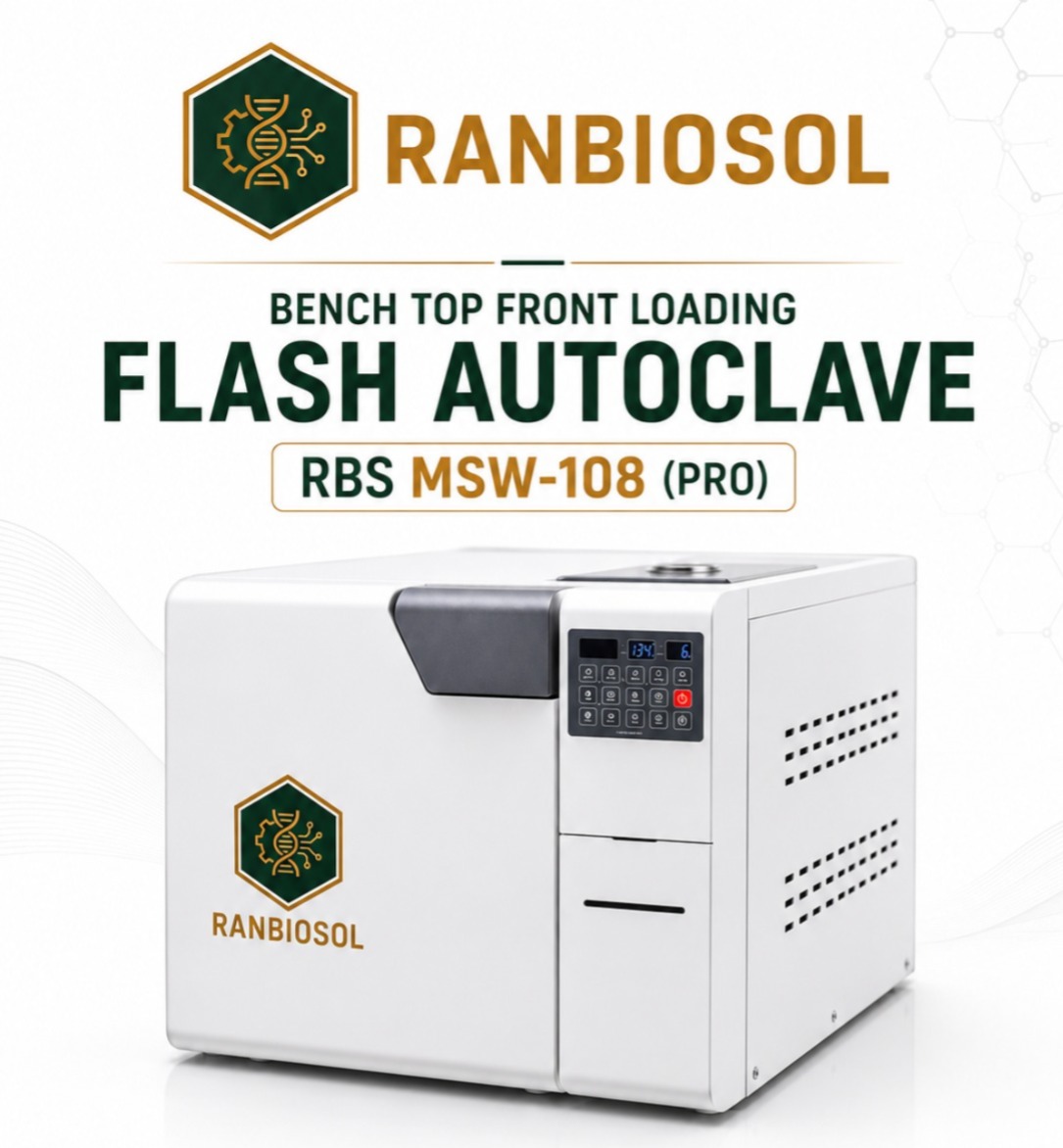

- “Ranbiosol” Table Top Front Loading Autoclave continues the thorough, stable and durable performance characteristics.
Efficiency
- Utilisation of an intelligent systems for faster sterilization cycle.
Built in Printer
- Provided with built in thermal printer.
Control Management and Monitoring
- Completely microprocessor controlled, constant management and monitoring of autoclave functions and parameters. Provision of Pre vacuum cycles to remove air from the chamber.
Main Feature
- Class B autoclaves, 1950W steam generator, fresh water tank & waste water tank, Vacuum Pump.
Program
- Universal 134, Solid 134, Universal 121, Solid 121°C. B&D / Helix Test, Vacuum Test.
Standard Accessories with the instruments
- 3 trays, 1 tray rack, 1 tray handle, 1 draining hose.
Control System
- This table top autoclave has different pre program cycles of autoclaving different wrapped and unwrapped equipment / materials ie metal solid instruments, hollow metal instruments, rubber, plastic, textile.
Safety Features
- Safety valve to release excess pressure to prevent accident. Short circuit safety protection.
Power Supply
- Power supply : Supply voltage range 220-240 Volts, 50/60 Hz, Single phase.
For Any Load Type
- Class B steam sterilizer can be used sterilize any load, such as the instruments of hollow, porous or solid.
Technical Specifications & Ordering Informations
| CYCLE | 134°C Universal | 134°C Solid | 121°C Universal | 121°C Solid | B – D / Helix Test | Vacuum Test |
|---|---|---|---|---|---|---|
| TEMPERATURE | 134°C | 134°C | 121°C | 121°C | 134°C | Vacuum to – 80 kPa, holding 15 min |
| HOLDING TIME (MIN) | 4 | 4 | 20 | 20 | 3.5 | Vacuum to – 80 kPa, holding 15 min |
| PRE-VACUUM TIMES | 3 | 1 | 3 | 1 | 3 | Vacuum to – 80 kPa, holding 15 min |
| DRYING TIME (MIN) | 15 | 5 | 15 | 5 | 4 | Vacuum to – 80 kPa, holding 15 min |
| CYCLE TYPE | B | S | B | S | Test Program | Test Program |
| TECHNICAL SPECIFICATIONS & ORDERING INFORMATIONS | ||||||
| MODEL | Inner Dimensions (Dia x Ht) in mm | Capacity | Operating Parameters | Class | Type | |
| #BTFA-23N | Ø250x450mm | 23 Ltrs. | 121°C – 134°C | N | With Thermal Cycle Only | |
| #BTFA-23B | Ø250x450mm | 23 Ltrs. | 121°C – 134°C | B | With Thermal & Vacuum Cycle | |
| #BTFA-45B | Ø319x617mm | 45 Ltrs. | 121°C – 134°C | B | With Thermal & Vacuum Cycle | |
Option
- Stand for Capacity 23 Ltrs. to cost extra.
- Stand for Capacity 45 Ltrs. to cost extra.
- Sealer for packing reels with cutter blade. (Manual)
