Hot Air Oven

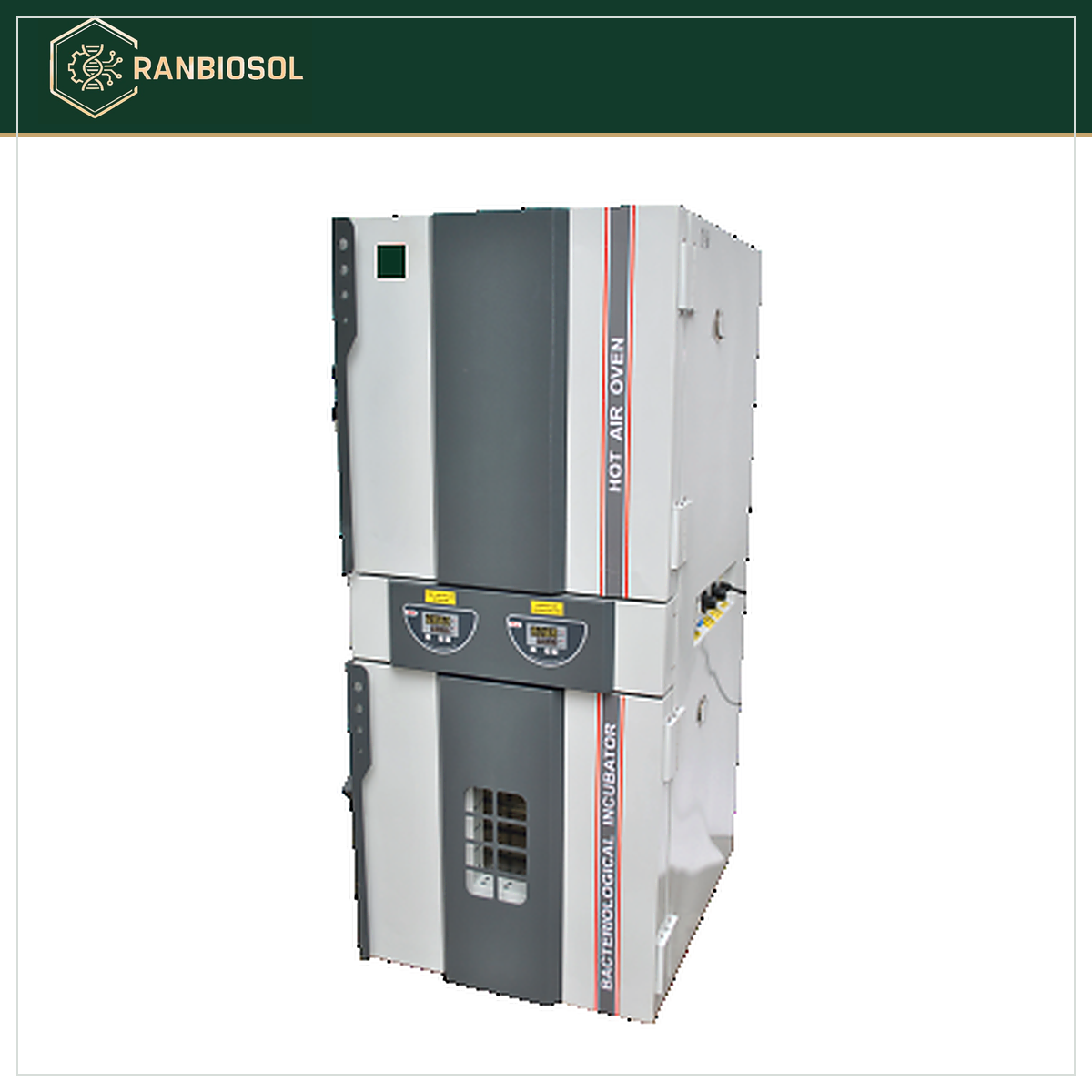

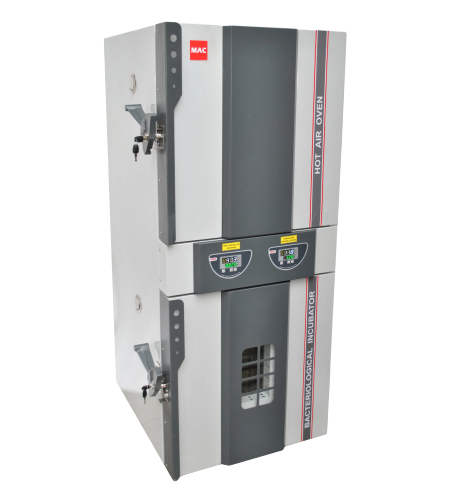

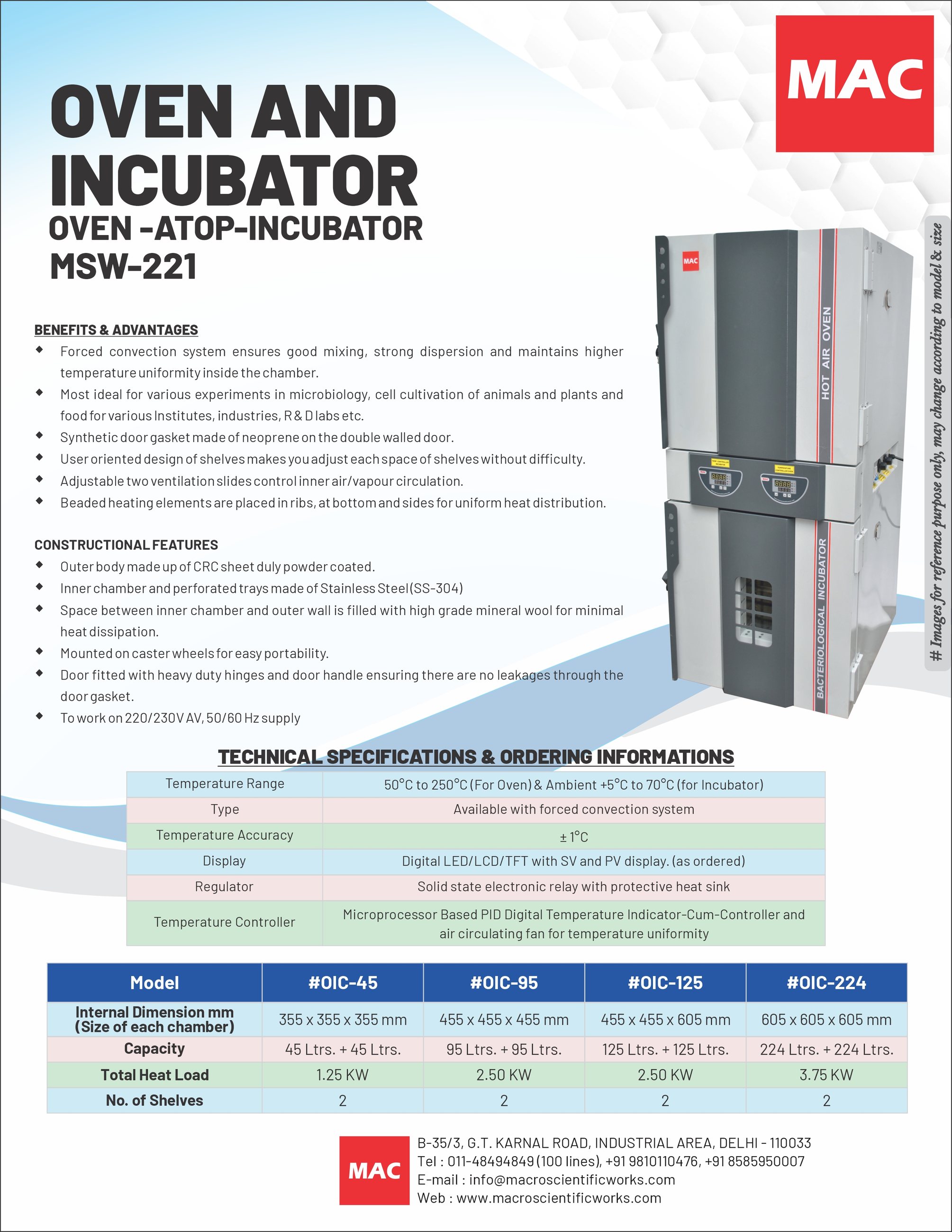

OVEN AND INCUBATOR COMBINED (OVEN-ATOP-INCUBATOR) “MAC” MSW-221

Name: OVEN AND INCUBATOR COMBINED (OVEN-ATOP-INCUBATOR) “MAC” MSW-221
SKU: MSW-221

This is a small description

Product details

Features and construction

Forced convection system ensures good mixing, strong dispersion and maintains higher temperature uniformity inside the chamber.
Most ideal for various experiments in microbiology, cell cultivation of animals and plants and food for various Institutes, industries, R & D labs etc.
Synthetic door gasket made of neoprene on the double walled door.
User oriented design of shelves makes you adjust each space of shelves without difficulty.
Adjustable two ventilation slides control inner air/vapour circulation.
Beaded heating elements are placed in ribs, at bottom and sides for uniform heat distribution.

Outer body made up of CRC sheet duly powder coated.
Inner chamber and perforated trays made of Stainless Steel (SS-304)
Space between inner chamber and outer wall is filled with high grade mineral wool for minimal heat dissipation.
Mounted on caster wheels for easy portability.
Door fitted with heavy duty hinges and door handle ensuring there are no leakages through the door gasket.
To work on 220/230V AV, 50/60 Hz supply
Temperature Range : 50°C to 250°C (For Oven) & Ambient +5°C to 70°C (for Incubator)
Type : Available with forced convection system.
Temp. Accuracy : ± 1°C
Display : Digital LED/LCD/TFT with SV and PV display. (as ordered)
Regulator : Solid state electronic relay with protective heat sink.
Temp. Controller : Microprocessor Based PID Digital Temperature Indicator-Cum-Controller and air circulating fan for temperature uniformity.

Technical data

MODEL	Internal Dimension mm (Size of each chamber)	Capacity	Total Heat Load	No. of Shelves
#OIC-45	355x355x355	45 ltrs + 45 ltrs	1.25 KW	2
#OIC-95	455x455x455	95 ltrs + 95 ltrs	2.50 KW	2
#OIC-125	455x455x605	125 ltrs + 125 ltrs	2.50 KW	2
#OIC-224	605x605x605	224 ltrs + 224 ltrs	3.75 KW	2
