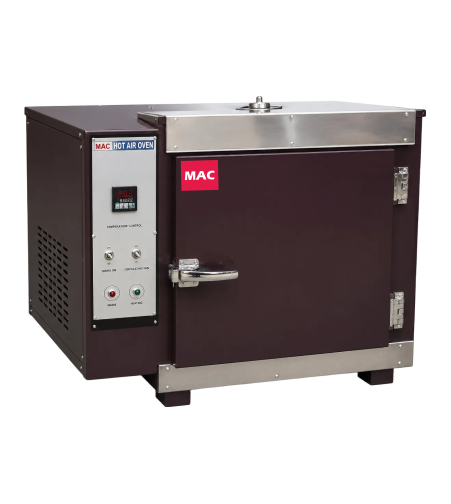

Hot Air Oven

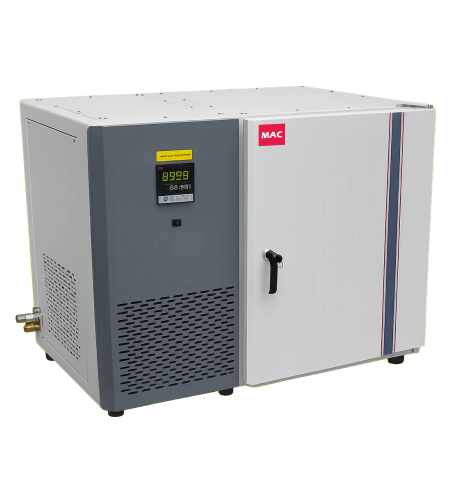

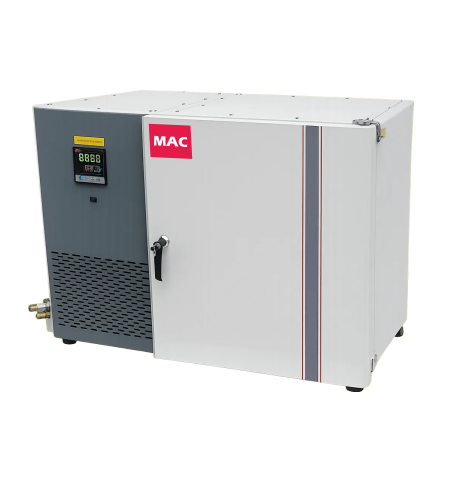

OVEN UNIVERSAL HIGH TEMPERATURE MSW-213
Specially Designed for heavy duty Industrial and Laboratory drying/digestion/curing applications reqiuring temperature range upto 600 Deg. C.
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
BENEFITS & ADVANTAGES
- Forced convection system ensures good mixing, strong dispersion and maintains higher temperature uniformity inside the chamber.
- Most ideal for various experiments in microbiology, cell cultivation of animals and plants and food for various laboratories, industries, R & D labs, etc.
- Synthetic door gasket made of neoprene on the double-walled door.
- User-oriented design of shelves makes you adjust each space of shelves without difficulty.
- Adjustable two ventilation slides control inner air/vapor circulation.
- Beaded heating elements are placed in ribs, at bottom and sides for uniform heat distribution.
CONSTRUCTION FEATURES
- Outer wall is made of CRC Sheet duly powder coated.
- Inner chamber and perforated trays made of Stainless Steel (SS-304)
- Space between the inner chamber and the outer wall is filled with high-grade mineral wool for minimal heat dissipation.
- Air ventilators are also provided on the sides of the unit.
- Bigger sized units mounted on caster wheels for easy portability.
- Door fitted with heavy-duty hinges and door handle ensuring there are no leakages through the door gasket.
- Fitted with Air Circulation fan as a standard feature.
- To work on 220/230V AV, 50/60 Hz supply
options
- Microprocessor Based Digital LCD Display, in lieu of standard controllerto cost extra.
- With TFT Touch Screen Display Controller, in lieu of standard controllerto cost extra.
Technical data
Specifications and models
TEMPERATURE RANGE UPTO Upto 300˚C
| Model | Internal Dimension (WXDXH) (mm) | Capacity |
|---|---|---|
| #OHT-45 | 355x355x355 | 45 ltrs |
| #OHT-95 | 455x455x455 | 95 ltrs |
| #OHT-125 | 455x455x605 | 125 ltrs |
| #OHT-224 | 605x605x605 | 224 ltrs |
| #OHT-252 | 605x455x910 | 252 ltrs |
| #OHT-336 | 605x605x910 | 336 ltrs |
Temperature Range
OVHT: 50˚C to 300˚C ( +2˚C)
MOC-Inner
Stainless Steel (SS-304)
MOC-Outer
Made of mild steel sheet duly powder coated
Temp. Controller
Microprocessor based PID Digital Temperature Controller
Display
Digital LED with SV and PV display
Type
Available with forced convection system (standard feature)
Regulator
Solid state electronic relay with protective heat sink
Safety Device
Over temperature limiter switch prevents overheating
TEMPERATURE RANGE UPTO Upto 390˚C
| Model | Internal Dimension (WXDXH) (mm) | Capacity |
|---|---|---|
| #OMHT-45 | 355x355x355 | 45 ltrs |
| #OMHT-95 | 455x455x455 | 95 ltrs |
| #OMHT-125 | 455x455x605 | 125 ltrs |
| #OMHT-224 | 605x605x605 | 224 ltrs |
| #OMHT-252 | 605x455x910 | 252 ltrs |
| #OMHT-336 | 605x605x910 | 336 ltrs |
Temperature Range
OMHT: 50˚C to 390˚C ( +2˚C),
MOC-Inner
Stainless Steel (SS-304)
MOC-Outer
Made of mild steel sheet duly powder coated
Temp. Controller
Microprocessor based PID Digital Temperature Controller
Display
Digital LED with SV and PV display
Type
Available with forced convection system (standard feature)
Regulator
Solid state electronic relay with protective heat sink
Safety Device
Over temperature limiter switch prevents overheating
TEMPERATURE RANGE UPTO Upto 450˚C
| Model | Internal Dimension (WXDXH) (mm) | Capacity |
|---|---|---|
| #OVHT-45 | 355x355x355 | 45 ltrs |
| #OVHT-95 | 455x455x455 | 95 ltrs |
| #OVHT-125 | 455x455x605 | 125 ltrs |
| #OVHT-224 | 605x605x605 | 224 ltrs |
| #OVHT-252 | 605x455x910 | 252 ltrs |
| #OVHT-336 | 605x605x910 | 336 ltrs |
Temperature Range
OHHT: 50˚C to 450˚C ( +2˚C)
MOC-Inner
Stainless Steel (SS-304)
MOC-Outer
Made of mild steel sheet duly powder coated
Temp. Controller
Microprocessor based PID Digital Temperature Controller
Display
Digital LED with SV and PV display
Type
Available with forced convection system (standard feature)
Regulator
Solid state electronic relay with protective heat sink
Safety Device
Over temperature limiter switch prevents overheating
