Hot Air Oven

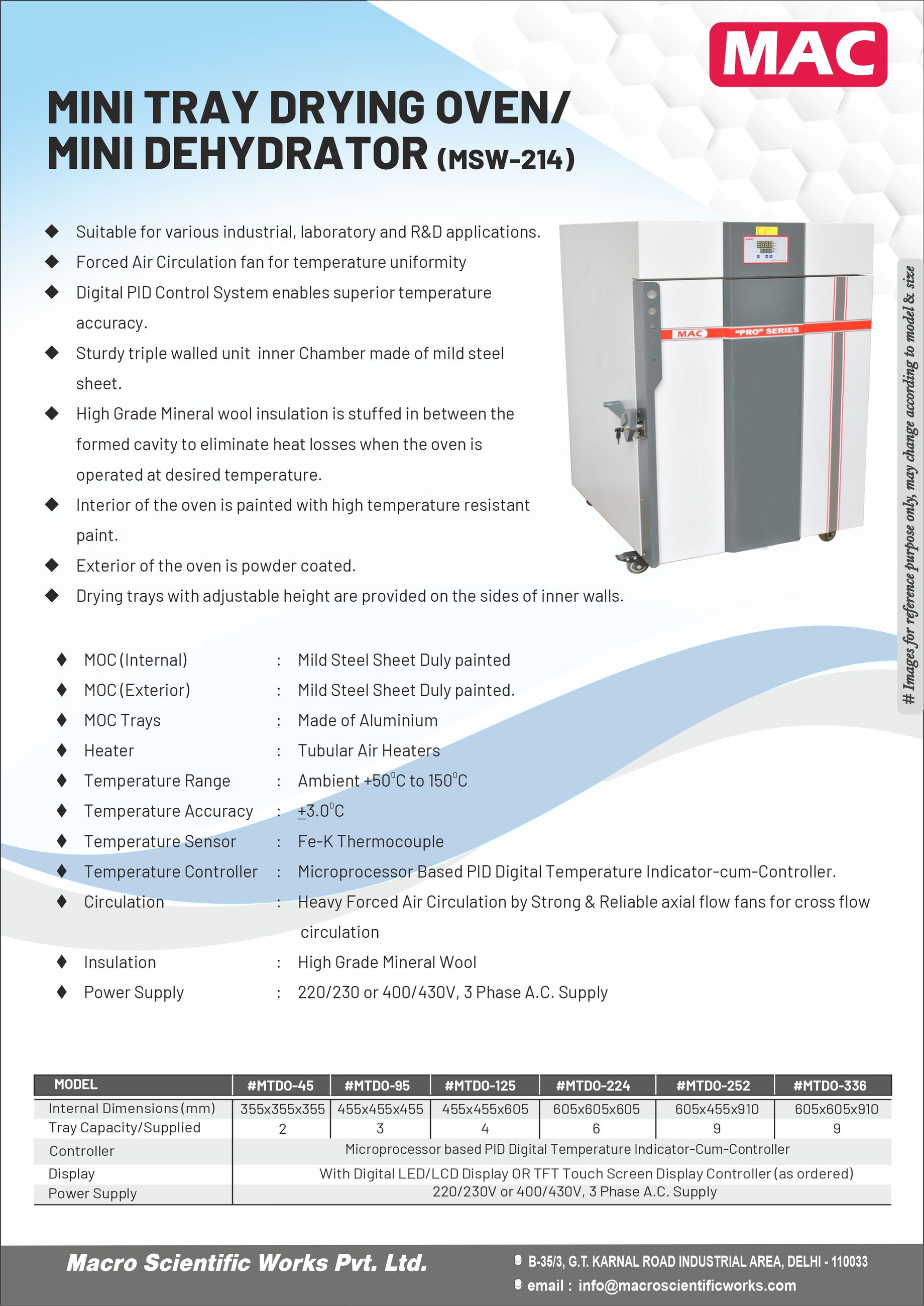

MINI TRAY DRYING OVEN / MINI DEHYDRATOR “MAC” MSW-214
Specially designed for drying of seeds, leafs, fruit and vegetables etc having temperature range from 50 deg. C to 150 deg. C.
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
APPLICATIONS & CONSTRUCTIONAL FEATURES
- Suitable for various industrial, laboratory and R&D applications.
- Forced Air Circulation fan for temperature uniformity.
- Digital PID Control System enables superior temperature accuracy.
- Sturdy triple-walled inner chamber made of mild steel sheet.
- High-Grade Mineral wool insulation is stuffed in between the formed cavity to eliminate heat losses when the oven is operated at the desired temperature.
- Interior of the oven is painted with high-temperature resistant paint.
- Exterior of the oven is powder coated.
- Drying trays with adjustable height are provided on the sides of inner walls.
TECHNICAL SPECIFICATION & ORDERING INFORMATIONS
- MOC (Internal): Mild Steel Sheet Duly painted
- MOC (Exterior): Mild Steel Sheet Duly painted.
- MOC Trays: Made of Aluminium
- Heater: Tubular Air Heaters
- Temperature Range: Ambient 50˚C to 150˚C
- Temperature Accuracy: ±3˚C
- Temperature Sensor: Fe-K Thermocouple
- Temperature Controller: Microprocessor Based Digital Temperature Indicator-Cum-Controller with LED OR LCD Display OR TFT Touch Screen Display Controller (Option)
- Circulation: Heavy Forced Air Circulation by Strong & Reliable axial flow fans for cross flow circulation
- Insulation: High-Grade Mineral Wool
- Power Supply: 220/230 or 400/430V, 3 Phase A.C. Supply
Technical data
Specifications and models
MICROPROCESSOR DIGITAL CONTROLLER WITH LED DISPLAY
| Model | #MTDO-95(LED) | #MTDO-125(LED) | #MTDO-224(LED) | #MTDO-252(LED) | #MTDO-336(LED) |
|---|---|---|---|---|---|
| Display Type | LED | LED | LED | LED | LED |
| Internal Dimension (WxDxH) (in mm) | 455x455x455 | 455x455x605 | 605x605x605 | 605x455x910 | 605x605x910 |
| Tray Capacity / Supplied | 3 | 4 | 6 | 9 | 9 |
MICROPROCESSOR DIGITAL CONTROLLER WITH LCD DISPLAY
| Model | #MTDO-95(LCD) | #MTDO-125(LCD) | #MTDO-224(LCD) | #MTDO-252(LCD) | #MTDO-336(LCD) |
|---|---|---|---|---|---|
| Display Type | LCD | LCD | LCD | LCD | LCD |
| Internal Dimension (WxDxH) (in mm) | 455x455x455 | 455x455x605 | 605x605x605 | 605x455x910 | 605x605x910 |
| Tray Capacity / Supplied | 3 | 4 | 6 | 9 | 9 |
TFT TOUCH SCREEN DISPLAY CONTROLLER
| Model | #MTDO-95(TFT) | #MTDO-125(TFT) | #MTDO-224(TFT) | #MTDO-252(TFT) | #MTDO-336(TFT) |
|---|---|---|---|---|---|
| Display Type | TFT | TFT | TFT | TFT | TFT |
| Internal Dimension (WxDxH) (in mm) | 455x455x455 | 455x455x605 | 605x605x605 | 605x455x910 | 605x605x910 |
| Tray Capacity / Supplied | 3 | 4 | 6 | 9 | 9 |
