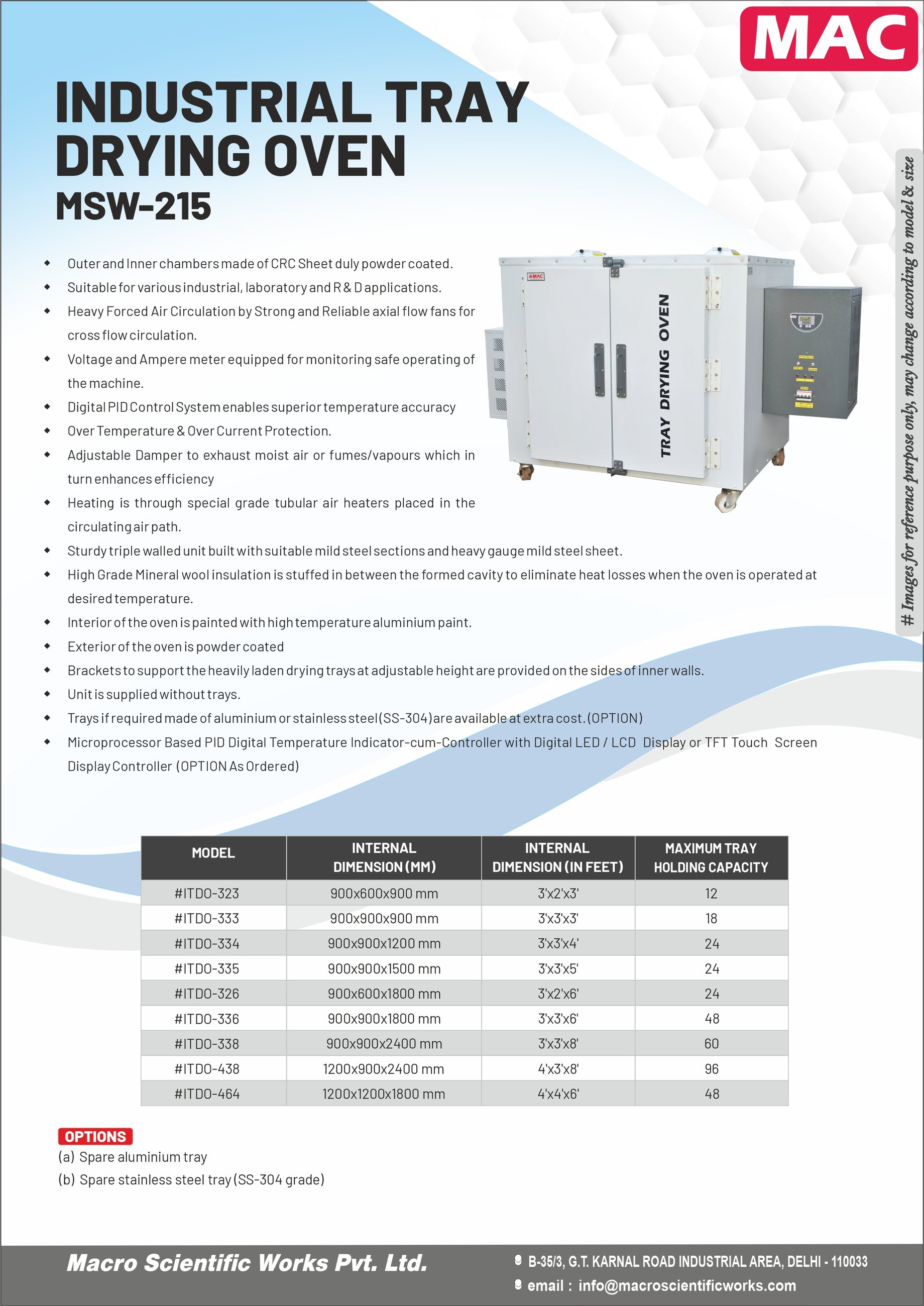

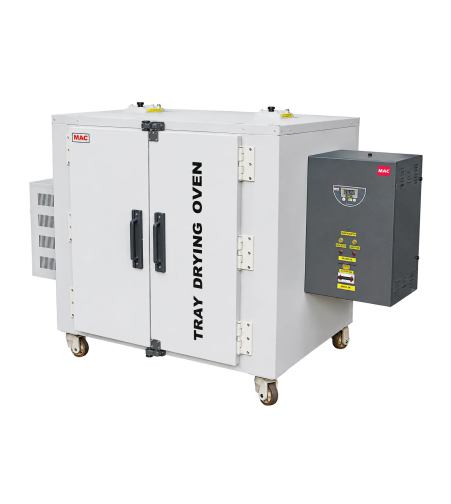

INDUSTRIAL TRAY DRYING OVEN “MAC” MSW-215

Name: INDUSTRIAL TRAY DRYING OVEN “MAC” MSW-215
SKU: MSW-215

Designed for heavy duty Industrial and Laboratory drying/digestion/curing applications reqiuring temperature range upto 250 deg. C.

Product details

Features and construction

Suitable for various industrial, laboratory and R & D applications.
Heavy Forced Air Circulation by Strong and Reliable axial flow fans for cross flow circulation.
Voltage and Ampere meter equipped for monitoring safe operating of the machine.
Digital PID Control System enables superior temperature accuracy
Over Temperature & Over Current Protection.
Adjustable Damper to exhaust moist air or fumes/vapors which in turn enhances efficiency
Heating is through special grade tubular air heaters placed in the circulating air path.
Sturdy triple-walled unit built with suitable mild steel sections and heavy gauge mild steel sheet.
High-Grade Mineral wool insulation is stuffed in between the formed cavity to eliminate heat losses when the oven is operated at the desired temperature.
Interior of the oven is painted with high-temperature aluminum paint.
Exterior of the oven is powder-coated
Brackets to support the heavily laden drying trays at adjustable height are provided on the sides of inner walls.
Unit is supplied without trays.
Temperature Range from 50°C to 250°C.
Trays, if required made of aluminum or stainless steel (SS-304), are available at extra cost.
Temperature Controller: Microprocessor Based Digital Temperature Indicator-Cum-Controller with LED OR LCD Display OR TFT Touch Screen Display Controller (Option)

Technical data

MICROPROCESSOR DIGITAL CONTROLLER WITH LED DISPLAY

Model	#ITDO-323(LED)	#ITDO-333(LED)	#ITDO-334(LED)	#ITDO-335(LED)	#ITDO-326(LED)	#ITDO-336(LED)	#ITDO-338(LED)	#ITDO-438(LED)	#ITDO-464(LED)
INNER DIMENSIONS (WXDXH) (in mm)	900x600x900	900x600x900	900x900x1200	900x900x1500	900x600x1800	900x900x1800	900x900x2400	1200x900x2400	1200x1800x1200
INNER DIMENSIONS (WXDXH) (in Feet)	3’ x 2’ x 3’	3’ x 2’ x 3’	3’ x 2’ x 4’	3’ x 2’ x 5’	3’ x 2’ x 6’	3’ x 3 x 6’	3’ x 3’ x 8’	4’ x 3’ x 8’	4’ x 6’ x 4’
Maximum Tray Holding Capacity	12	12	24	24	24	48	60	96	48

MICROPROCESSOR DIGITAL CONTROLLER WITH LCD DISPLAY

Model	#ITDO-323(LCD)	#ITDO-333(LCD)	#ITDO-334(LCD)	#ITDO-335(LCD)	#ITDO-326(LCD)	#ITDO-336(LCD)	#ITDO-338(LCD)	#ITDO-438(LCD)	#ITDO-464(LCD)
INNER DIMENSIONS (WXDXH) (in mm)	900x600x900	900x600x900	900x900x1200	900x900x1500	900x600x1800	900x900x1800	900x900x2400	1200x900x2400	1200x1800x1200
INNER DIMENSIONS (WXDXH) (in Feet)	3’ x 2’ x 3’	3’ x 2’ x 3’	3’ x 2’ x 4’	3’ x 2’ x 5’	3’ x 2’ x 6’	3’ x 3 x 6’	3’ x 3’ x 8’	4’ x 3’ x 8’	4’ x 6’ x 4’
Maximum Tray Holding Capacity	12	12	24	24	24	48	60	96	48

TFT TOUCH SCREEN DISPLAY CONTROLLER

Model	#ITDO-323(TFT)	#ITDO-333(TFT)	#ITDO-334(TFT)	#ITDO-335(TFT)	#ITDO-326(TFT)	#ITDO-336(TFT)	#ITDO-338(TFT)	#ITDO-438(TFT)	#ITDO-464(TFT)
INNER DIMENSIONS (WXDXH) (in mm)	900x600x900	900x600x900	900x900x1200	900x900x1500	900x600x1800	900x900x1800	900x900x2400	1200x900x2400	1200x1800x1200
INNER DIMENSIONS (WXDXH) (in Feet)	3’ x 2’ x 3’	3’ x 2’ x 3’	3’ x 2’ x 4’	3’ x 2’ x 5’	3’ x 2’ x 6’	3’ x 3 x 6’	3’ x 3’ x 8’	4’ x 3’ x 8’	4’ x 6’ x 4’
Maximum Tray Holding Capacity	12	12	24	24	24	48	60	96	48
