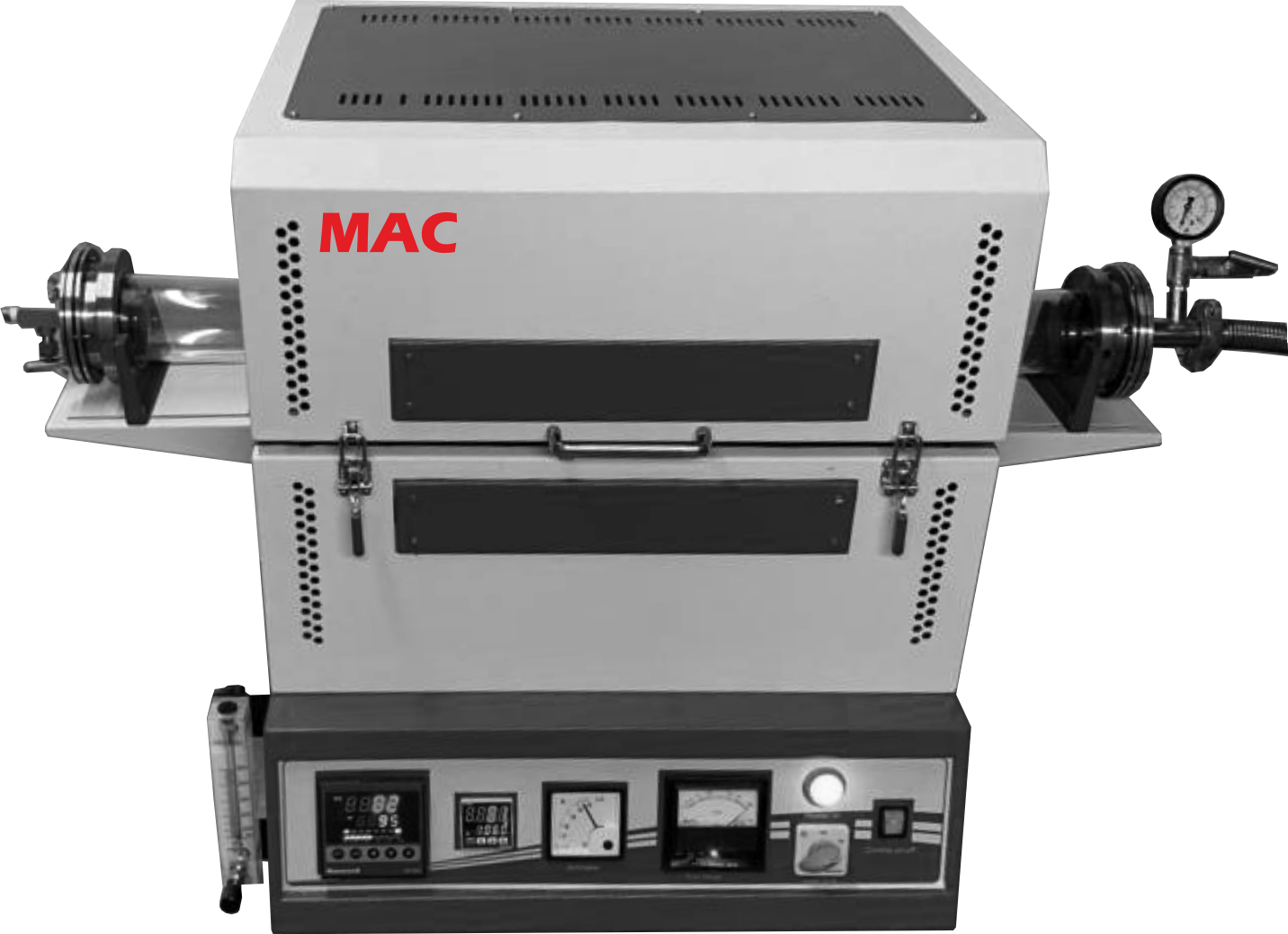

SPLIT TUBE FURNACE “MAC” MSW-253(SF)
This is a small description
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
features
- Whole body is made up of mild steel duly powder coated with high quality Kanthal heater embedded in fiber board.
- Insulated with non carcinogenic crystalline vacuum formed fiber boards.
- Ceramic fiber board radiation shields are used.
- Stainless Steel flanges for gas purging and vacuum ports are provided.
- Temperature is controlled with the help of Microprocessor Based PID Digital Temperature Indicator cum Controller.
- The furnace is hinged on one side and opens in two halves at other.
- Maximum operating temperature 1050°C or 1150°C or 1350°C or 1400°C.
- Type : Split tubular furnace.
- Heater Type : Free radiating.
- Rate of Heating : 10°C/min (average).
- Thermocouple : K-type with inconel protective sheath.
- Control Zone : Single zone
- Body construction : Steel with Anti Corrosion Coating.
- Power : Single Phase, 230 V, 4 KW
- Cooling mode : Dual Body Fan Cooling.
- Port Connections : SS flanges for gas purging / vacuum.
- Radiation shield : Ceramic Fiber based.
Control Panel
- Controller shall be Microprocessor Based PID Digital Temperature Indictor-cum-Controller.
- Soft Start / Soft Stop, Power Tuned, Three (3) Limit Switches Configuration, Thyrister with power limiting feature, Inbuilt Thyristor Triggering.
- Safety Features : Shall have the protective features viz. Thermocouple break, Over Current etc.
- Furnace movement : The split furnace shall be hinged on one side and it opens in two halves (split type)
Technical data
Specifications and models
| Model | #STF-10H (60-250) | #STF-10H (90-300) | #STF-11H (60-250) | #STF-11H (90-300) | #STF-13H (60-250) | #STF-13H (90-300) | #STF-14H (60-250) | #STF-14H (90-300) |
|---|---|---|---|---|---|---|---|---|
| Maximum Working Temperature | 1050°C | 1050°C | 1150°C | 1150°C | 1350°C | 1350°C | 1400°C | 1400°C |
| Work Tube Type | Quartz | Quartz | Quartz | Quartz | Alumina | Alumina | Alumina | Alumina |
| Hot Zone Size (OD x L) | 60 x 250 | 90 x 300 | 60 x 250 | 90 x 300 | 60 x 250 | 90 x 300 | 60 x 250 | 90 x 300 |
| Heater | Metallic | Metallic | Metallic | Metallic | SiC | SiC | SiC | SiC |
| Thermocouple | K | K | K | K | R | R | R | R |
