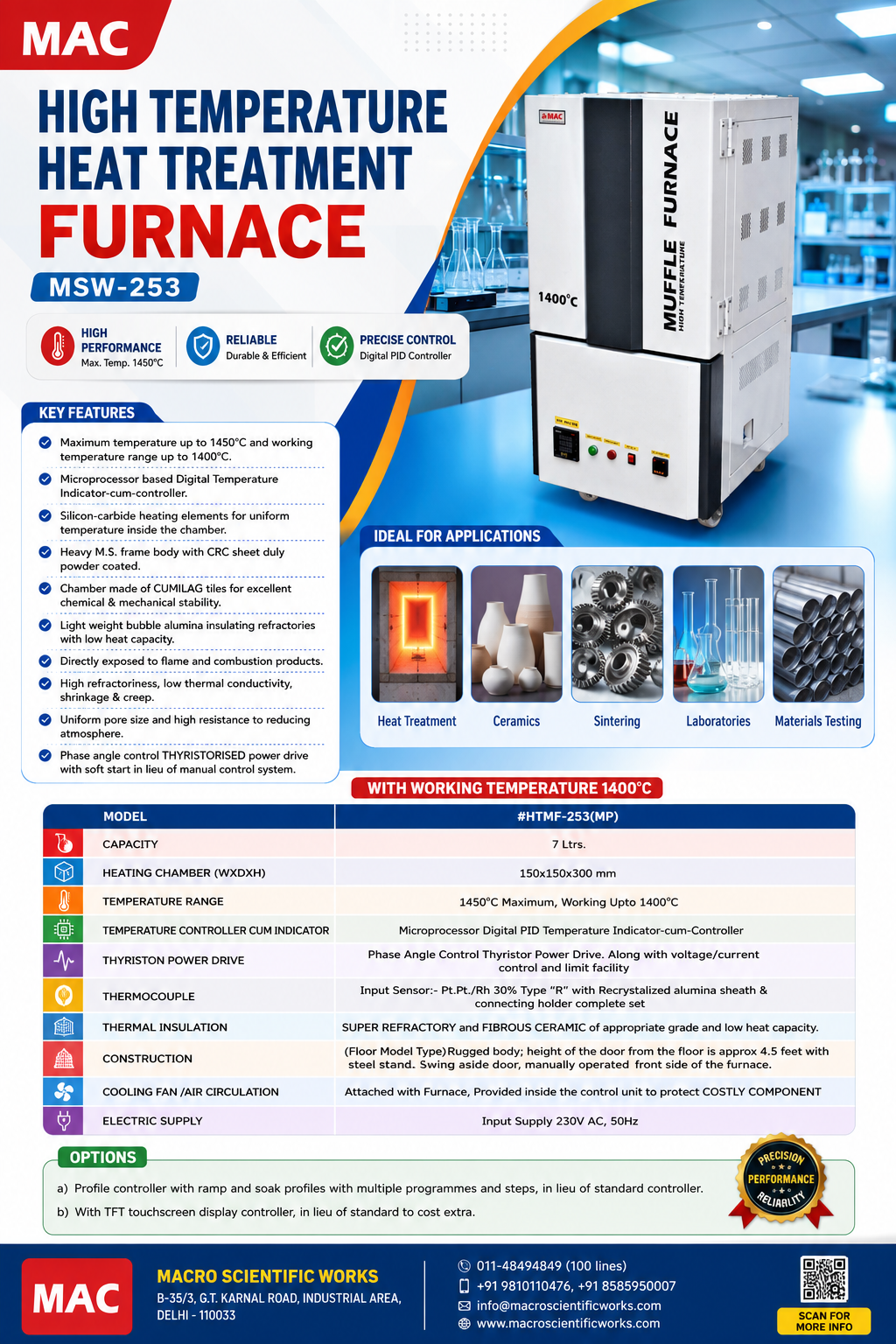

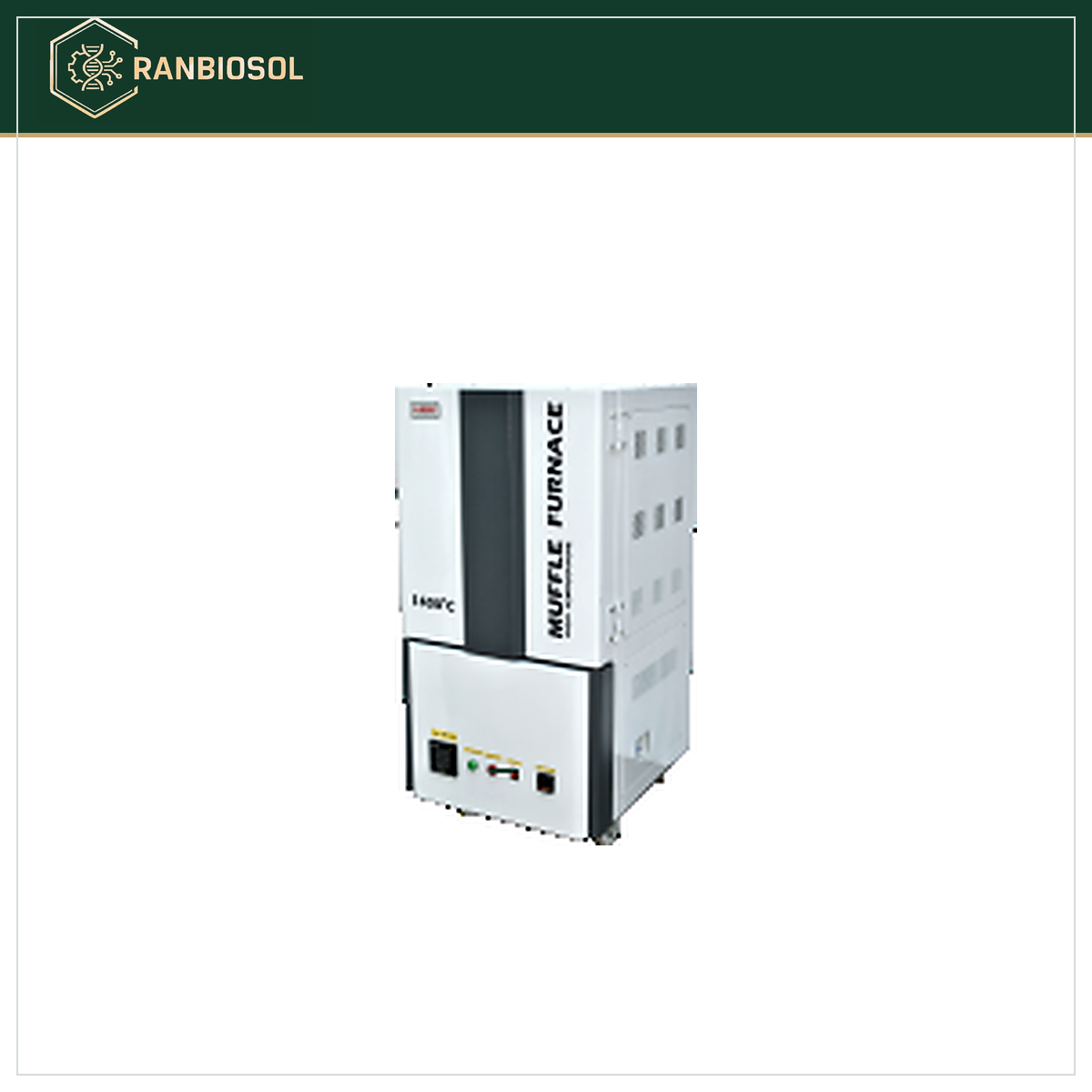

HIGH TEMPERATURE HEAT TREATMENT FURNACE MSW-253

features

• Most useful where high temperature curing is required with maximum temperature upto 1450°C and working temperature range upto 1400°C.
• Fitted with Microprocessor Based Digital Temperature Indicator-cum-controller.
• Silicon-carbide heating elements are fitted for uniform temperature inside the chamber.
• Body mounted on a heavy M.S. frame covered with CRC Sheet duly powder coated.
• Fitted with chamber made of CUMILAG tiles exhibit unique combination of chemical, mechanical stability and insulating properties.
• These are suitable for applications at high service temperatures.
• Bubble alumina range of insulating refractories are of light weight, have good load bearing capacity, and low heat capacity.
• These can be directly exposed to flame, and combustion products.
• Our furnaces have some very unique features:-
• * Very high refractoriness, structural strength
• * Low thermal conductivity, shrinkage and creep.
• High resistance to reducing atmosphere and Uniform pore size.
• Distribution and Control through a phase angle control THYRIOSTORISED POWER DRIVE with Soft Start in lieu of Manual Control System, and a multitap solid state step down transformer.

options

• Profile controller with ramp and soak profiles with multiple programmes and steps, in lieu of standard controller to cost extra.
• With TFT Touch Screen Display Controller, in lieu of standard controller to cost extra.

MODEL

CAPACITY

HEATING CHAMBER (WXHXD)

THYRISTON POWER DRIVE

TEMPERATURE CONTROLLER CUM INDICATOR

TEMPERATURE RANGE

THERMOCOUPLE

THERMAL INSULATION

CONSTRUCTION

COOLING FAN/AIR CIRCULATION

ELECTRIC SUPPLY
