WATER BATH

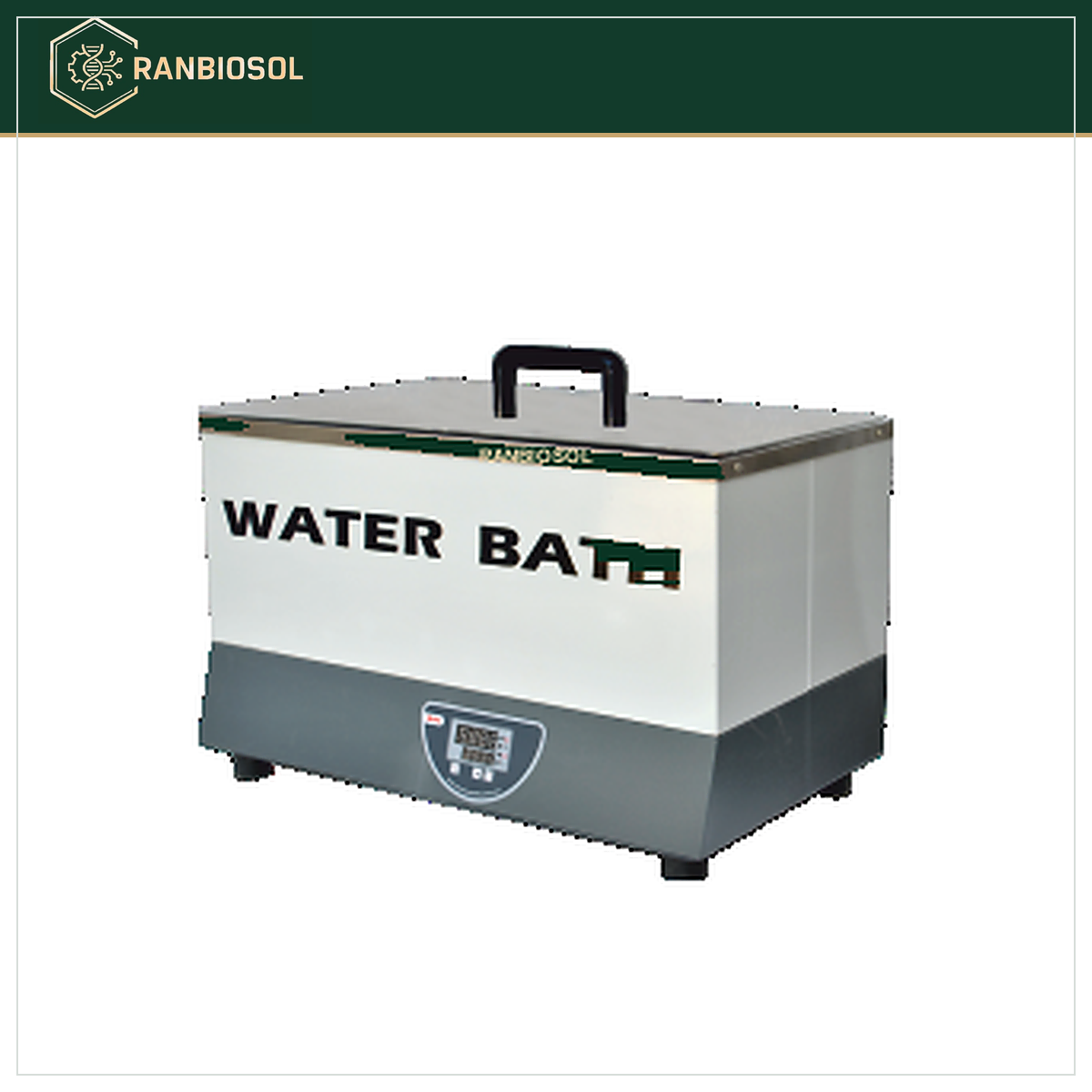

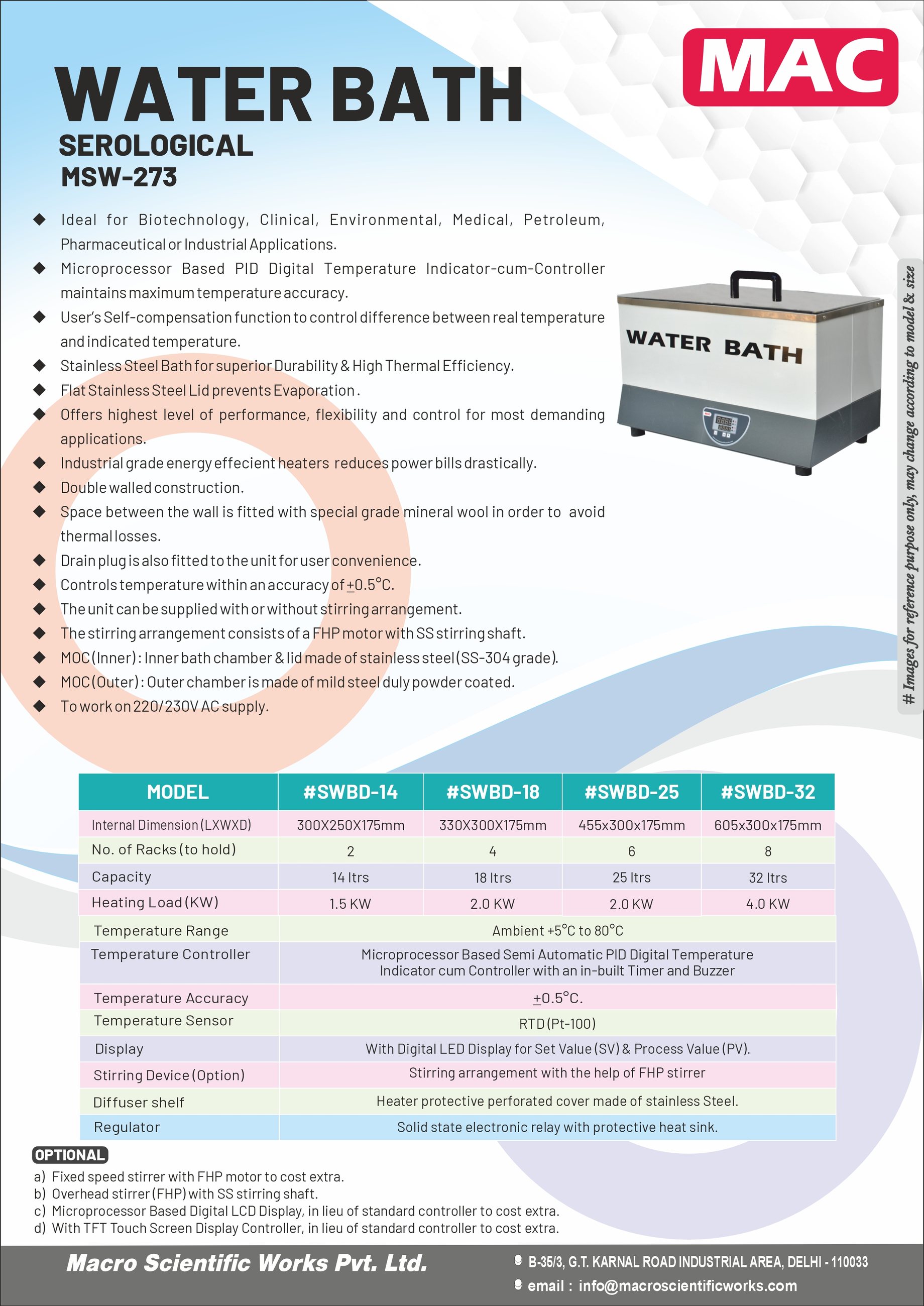

SEROLOGICAL WATER BATH “MAC” MSW-273
This is a small description
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
features
- Ideal for Biotechnology, Clinical, Environmental, Medical, Petroleum, Pharmaceuticals or Industrial Applications.
- Microprocessor Based PID Digital Temperature Indicator-cum-Controller maintains maximum temperature accuracy.
- User’s Self-compensation function to control difference between real temperature and indicated temperature.
- Stainless Steel Bath for superior Durability & High Thermal efficiency.
- Flat Stainless Steel Lid prevents evaporation.
- Offers highest level of performance, flexibility and control for most demanding applications.
- Industrial grade energy efficient heaters reduces power bills drastically.
- Double walled construction.
- Space between the walls is fitted with special grade mineral wool in order to avoid thermal losses.
- Drain plug is also fitted to the unit for user convenience.
- Controls temperature within an accuracy of ±0.5°C.
- MOC (Inner): Inner bath chamber and lid made of Stainless Steel (SS-304 grade).
- MOC (Outer): Outer chamber is made of CRC Sheet duly powder coated.
- To work on 220/230V AC supply.
Option
- Circulating arrangement with FHP motor to cost extra.
- Microprocessor Based Digital LCD Display, in lieu of standard controller to cost extra.
- With TFT Touch Screen Display Controller, in lieu of standard controller to cost extra.
Technical data
Specifications and models
| Model | Internal Dimension | No. of Racks | Capacity | Heat Load |
|---|---|---|---|---|
| #SWBD-14 | 300 x 250 x 175 mm | 2 | 14 Ltrs. | 0.5+0.5 KW |
| #SWBD-18 | 300 x 300 x 175 mm | 4 | 18 Ltrs. | 1.0+1.0 KW |
| #SWBD-25 | 455 x 300 x 175 mm | 6 | 25 Ltrs. | 1.5+1.5 KW |
| #SWBD-32 | 605 x 300 x 175 mm | 8 | 32 Ltrs. | 1.5+1.5 KW |
Temperature Range
Ambient +5°C to 80°C
Temperature Controller
SEMI AUTOMATIC DIGITAL TEMPERATURE INDICATOR-CUM-CONTROLLER with an in-built DIGITAL TIMER and buzzer
Temperature Accuracy
±0.5°C
Temperature Sensor
RTD (Pt-100)
Temperature Display
With Digital LED Display for Set Value (SV) & Process Value (PV)
Stirring Device (Option)
Available with or without stirring arrangement with the help of FHP stirrer
Diffuser Shelf
Heater protective perforated cover made of stainless Steel (SS-304).
Regulator
Solid state electronic relay with protective heat sink.
