WATER BATH

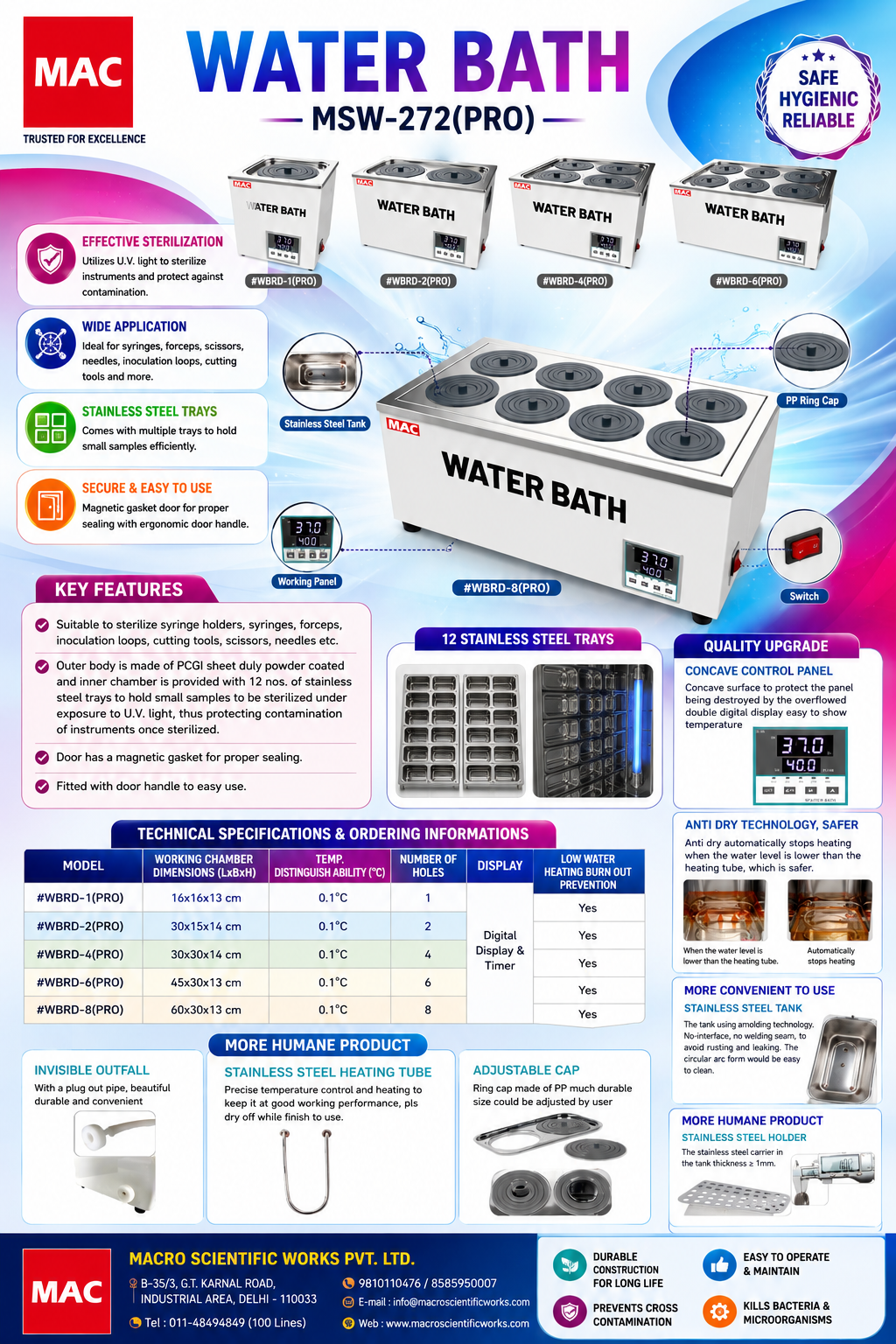

WATER BATH "MAC" MSW-272(PRO)
This is a small description
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
Description
- Anti-dry technology.
- Concave surface to avoid liquid.
- No interface, no welding seam. Stainless steel material.
- Size of hole can be customized/ adjusted.
- Bi-integral A/D converter.
- Temperature Range : RT - 99.9°C.
- Anty-dry Technology : Automatically stop heating when the water level is lower than the heating tube, which is safer.
- Concave Control Panel : Concave surface to protect the panel being destroyed by the overflowed. Double digital display easy to show temperature.
- Stainless Steel Tank : The Tank using amolding technology. No interface, no welding seam to avoid rusting and leaking. The circular arc form would be easy to clean.
- Stainless Steel Heating Tube : Precise temperature control and heating. To keep it at good working performance, pls dry off while finished to use.
- Stainless Steel Holder : The stainless steel carrier in the tank, the thickness is more than 1 mm.
- Adjustable Cap : Ring cap made of PP, much durable and better sealing. The hole size could be adjusted by the user.
- Invisible Outfall : With a plug-out pipe, beautiful and durable and convenient.
Technical data
Specifications and models
| Model | Working Chamber Dimensions | Temperature Distinguish Ability °C | Number of Holes | Display | Low Water Heating Burn Out Prevention |
|---|---|---|---|---|---|
| #WBRD-1(PRO) | 160x160x130 mm | 0.1°C | 1 | Digital Display & Timer | YES |
| #WBRD-2(PRO) | 300x150x140 mm | 0.1°C | 2 | Digital Display & Timer | YES |
| #WBRD-4(PRO) | 300x300x140 mm | 0.1°C | 4 | Digital Display & Timer | YES |
| #WBRD-6(PRO) | 450x300x130 mm | 0.1°C | 6 | Digital Display & Timer | YES |
| #WBRD-8(PRO) | 600x300x130 mm | 0.1°C | 8 | Digital Display & Timer | YES |
