Hot Air Oven

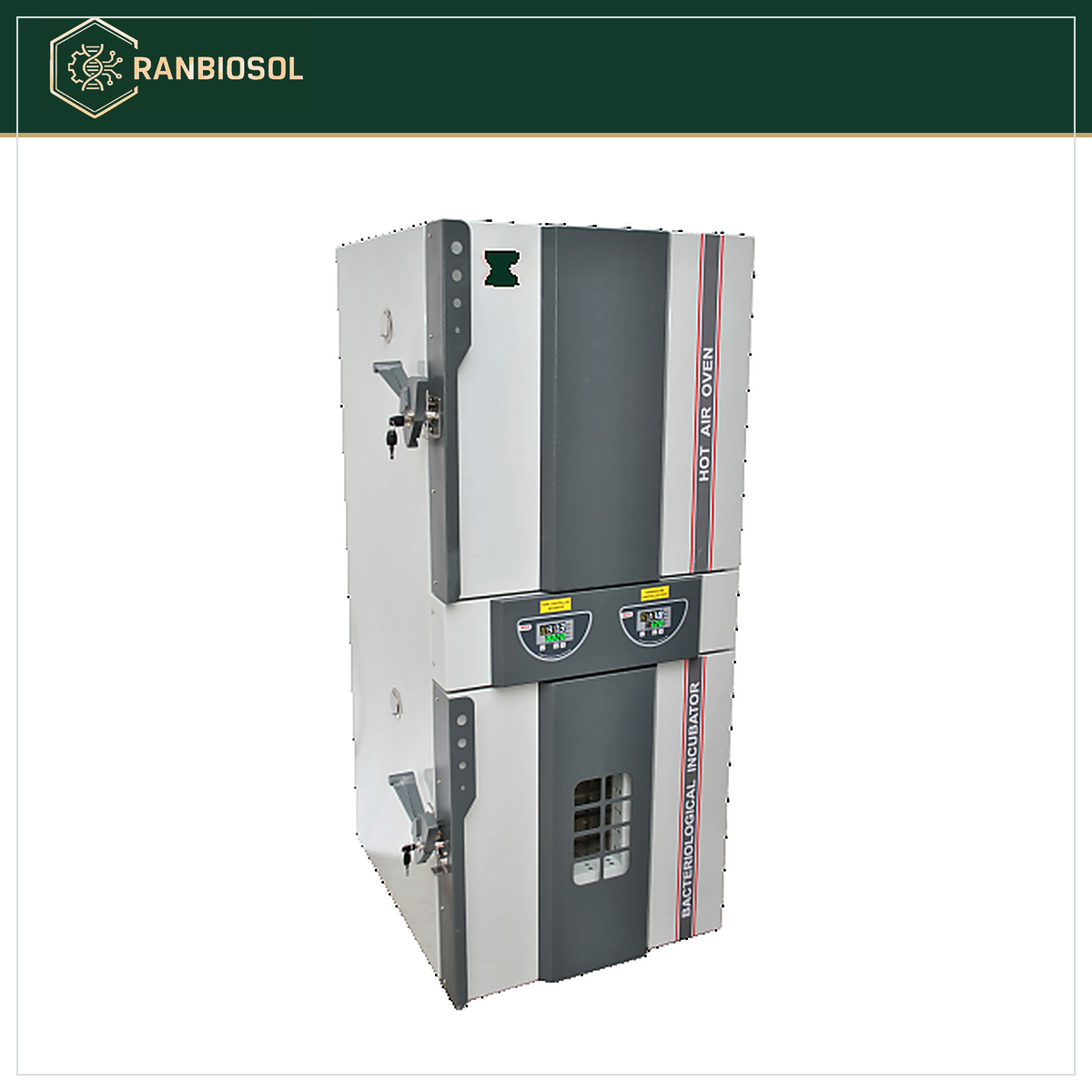

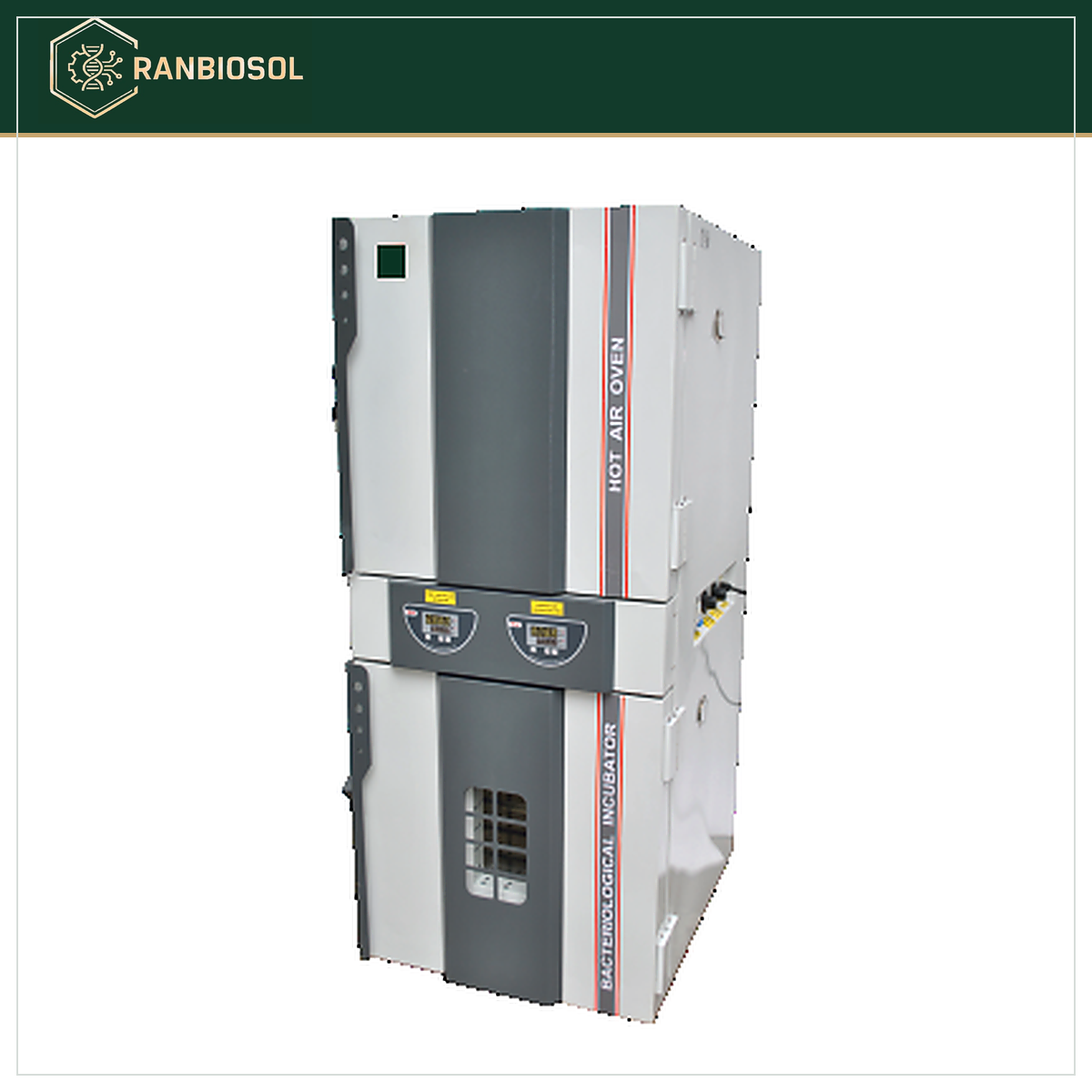

OVEN AND INCUBATOR COMBINED (OVEN-ATOP-INCUBATOR) RBS MSW-221
This is a small description
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
BENEFITS & ADVANTAGES
- Forced convection system ensures good mixing, strong dispersion and maintains higher temperature uniformity inside the chamber.
- Most ideal for various experiments in microbiology, cell cultivation of animals and plants and food for various Institutes, industries, R & D labs etc.
- Synthetic door gasket made of neoprene on the double walled door.
- User oriented design of shelves makes you adjust each space of shelves without difficulty.
- Adjustable two ventilation slides control inner air/vapour circulation.
- Beaded heating elements are placed in ribs, at bottom and sides for uniform heat distribution.
CONSTRUCTIONAL FEATURES
- Outer body made up of CRC sheet duly powder coated.
- Inner chamber and perforated trays made of Stainless Steel (SS-304)
- Space between inner chamber and outer wall is filled with high grade mineral wool for minimal heat dissipation.
- Mounted on caster wheels for easy portability.
- Door fitted with heavy duty hinges and door handle ensuring there are no leakages through the door gasket.
- To work on 220/230V AV, 50/60 Hz supply
- Temperature Range: 50°C to 250°C (For Oven) & Ambient +5°C to 70°C (for Incubator)
- Type: Available with forced convection system.
- Temp. Accuracy: ± 1°C
- Display: Digital LED/LCD/TFT with SV and PV display. (as ordered)
- Regulator: Solid state electronic relay with protective heat sink.
- Temp. Controller: Microprocessor Based PID Digital Temperature Indicator-Cum-Controller and air circulating fan for temperature uniformity.
Technical data
Specifications and models
| MODEL | #RBS OIC-45 | #RBS OIC-95 | #RBS OIC-125 | #RBS OIC-224 |
|---|---|---|---|---|
| Internal Dimension mm (Size of each chamber) | 355x355x355 | 455x455x455 | 455x455x605 | 605x605x605 |
| Capacity | 45 ltrs + 45 ltrs | 95 ltrs + 95 ltrs | 125 ltrs + 125 ltrs | 224 ltrs + 224 ltrs |
| Total Heat Load | 1.25 KW | 2.50 KW | 2.50 KW | 3.75 KW |
| No. of Shelves | 2 | 2 | 2 | 2 |
