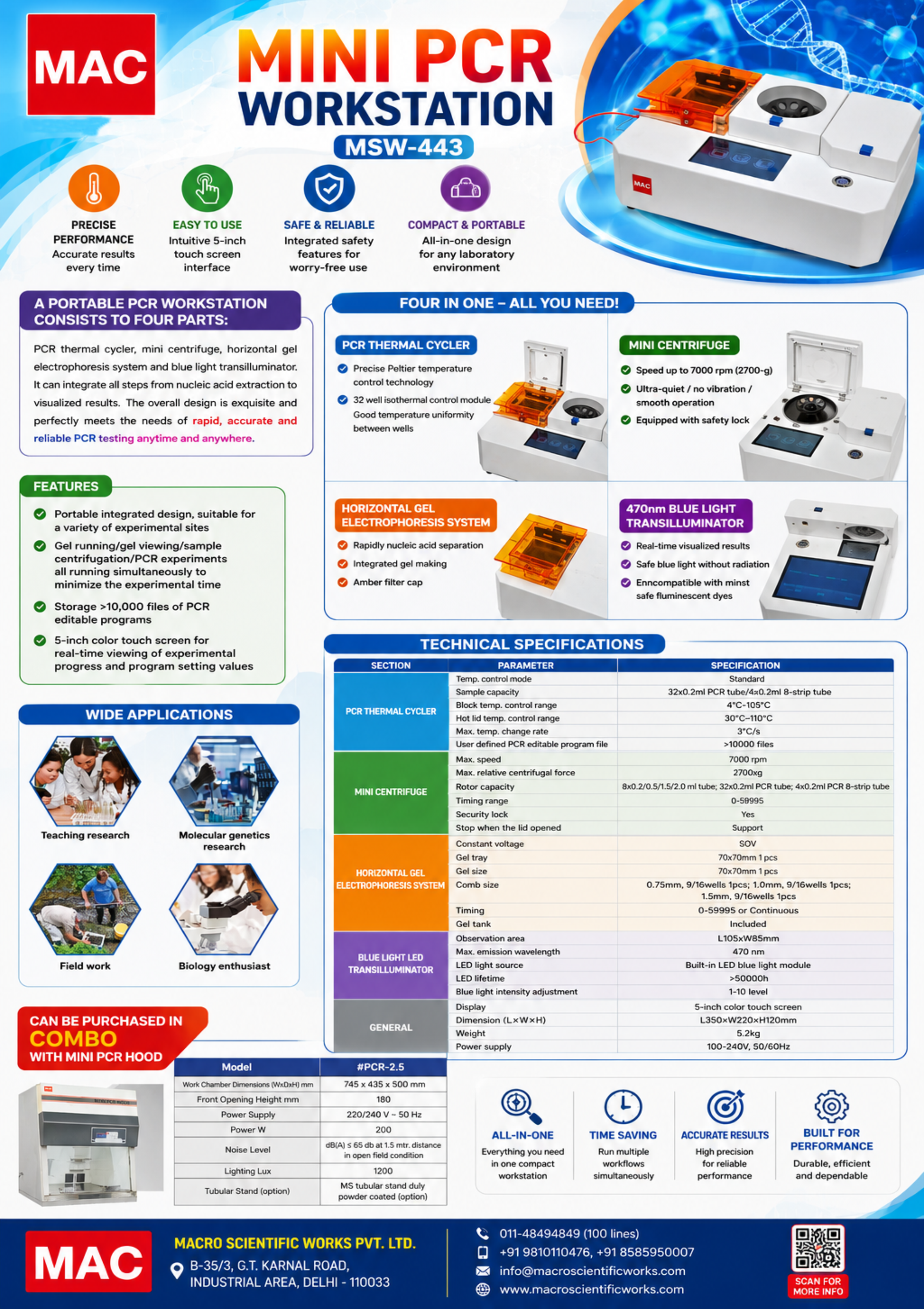

MINI PCR WORKSTATION “MAC”
MINI PCR WORKSTATION “MAC” MSW-443
This is a small description
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
470nm Blue Light Transilluminator
- Real-time visualization of DNA bands with 10-step adjustable brightness—safe, efficient, and ideal for sensitive detection without DNA damage.
Horizontal Gel Electrophoresis System
- Accelerated nucleic acid separation with integrated gel casting and imaging—streamlines the workflow from gel preparation to result interpretation.
Mini Centrifuge
- Compact yet powerful with variable speed from 1000 to 7000 rpm, compatible with multiple tube formats including PCR strip tubes and microcentrifuge tubes—ensuring versatility in sample preparation..
32-Well PCR Thermal Cycler
- High-precision isothermal control module with temperature ramp rate up to 3°C/sec, ensuring consistent and reproducible amplification across all wells.
5-Inch Full-Color Touchscreen Interface
- User-friendly interface with intuitive navigation and programming, enabling seamless control over all integrated modules through a single display.
Intelligent System Integration
- Multi-tasking enabled via advanced microcontroller-based orchestration—allowing simultaneous centrifugation, electrophoresis, and PCR to drastically reduce experiment turnaround time.
Technical data
Specifications and models
Model
#MPW-443
PCR THERMAL CYCLER
Color Touch Screen Display Controller 32x0.2ml PCR tube/ 4x0.2ml 8-strip tube Temp. Range :4°C-105°C
MINI CENTRIFUGE
Speed : 7000 rpm Rotor Cap. : 8x0.2/0.5/1.5/2ml tube 32x0.2ml PCR tube 4x0.2ml 8-strip tube Timing Range: 0-59995
HORIZONTAL GEL ELECTROPHORESIS SYSTEM
Gel Tray : 70x70mm Gel Size : 70x70mm Timing Range: 0-59995.
TRANSILLUMINATOR
Observation Area : L105xW85mm Wavelength: 470nm Intensity adjustment : 1-10 level
