MINI PCR HOODS

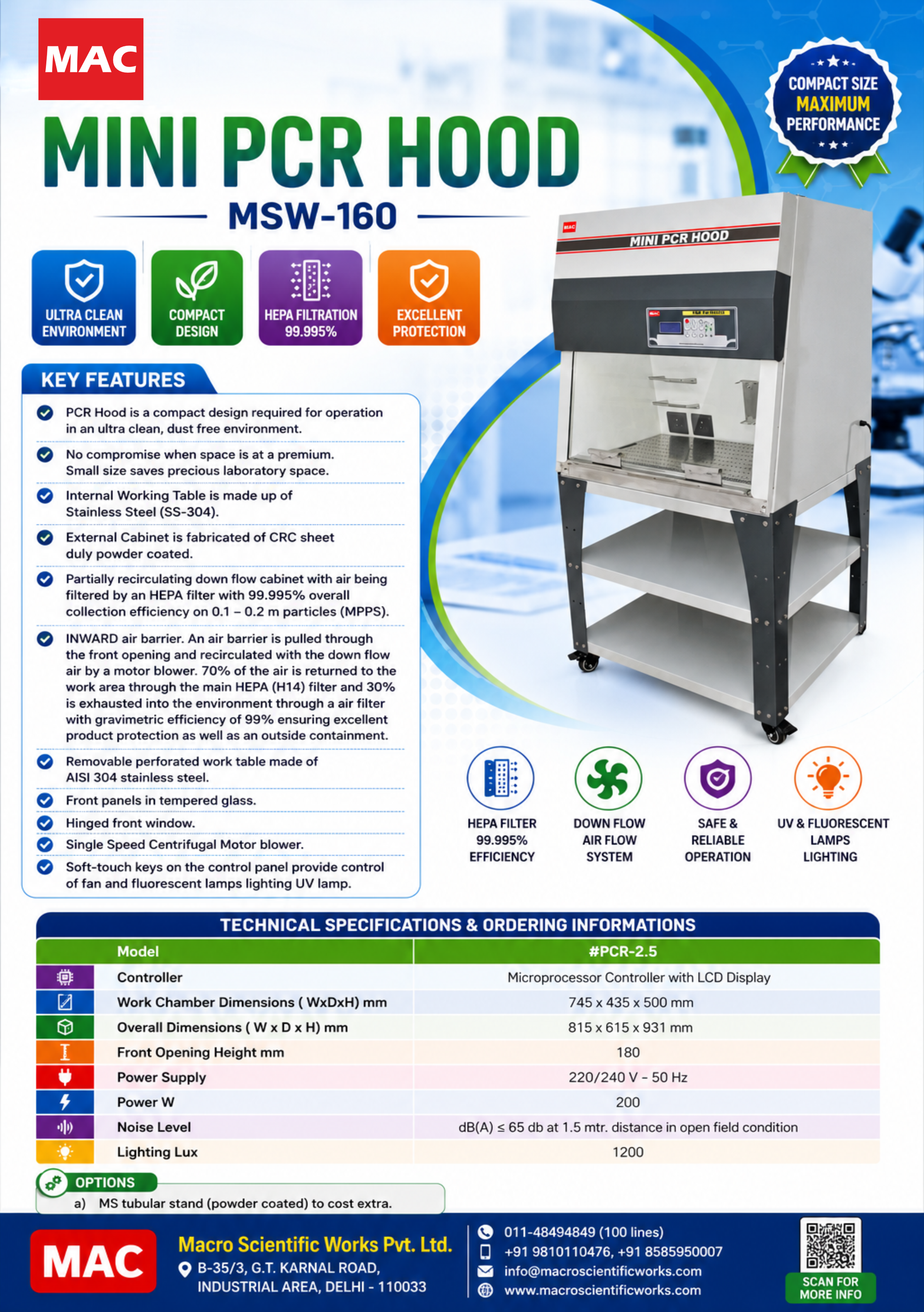

MINI PCR HOOD “MAC” MSW-160

Name: MINI PCR HOOD “MAC” MSW-160
SKU: MSW-160

Specially designed for containment of DNA carry over and neutralization prevents cross contamination down from previous amplified DNA fragments.

Product details

Features and construction

PCR Hood is a compact design required for operation in an ultra clean, dust free environment.
No compromise when space is at a premium. Small size saves precious laboratory space.
Internal Working Table is made up of Stainless Steel (SS-304).
External Cabinet is fabricated of CRC sheet duly powder coated.
Partially recirculating downflow cabinet with air being filtered by an HEPA filter with 99.995% overall collection efficiency on 0.1 – 0.2 m particles (MPPS).
INWARD air barrier. An air barrier is pulled through the front opening and recirculated with the downflow air by a motor blower. 70% of the air is returned to the work area through the main HEPA (H14) filter and 30% is exhausted into the environment through a air filter with gravimetric efficiency of 99% ensuring excellent product protection as well as an outside containment.
Removable perforated work table made of AISI 304 stainless steel
Front panels in tempered glass
Hinged front window
Single Speed Centrifugal Motor blower
Microprocessor based digital controller with LCD display with air velocity sensor.
Soft-touch keys on the control panel provide control of fan and fluorescent lamps lighting UV lamp.

PCR Hood is a compact design required for operation in an ultra clean, dust free environment.
No compromise when space is at a premium. Small size saves precious laboratory space.
Internal Working Table is made up of Stainless Steel (SS-304).
External Cabinet is fabricated of CRC sheet duly powder coated.
Partially recirculating downflow cabinet with air being filtered by an HEPA filter with 99.995% overall collection efficiency on 0.1 – 0.2 m particles (MPPS).
INWARD air barrier. An air barrier is pulled through the front opening and recirculated with the downflow air by a motor blower. 70% of the air is returned to the work area through the main HEPA (H14) filter and 30% is exhausted into the environment through a air filter with gravimetric efficiency of 99% ensuring excellent product protection as well as an outside containment.
Removable perforated work table made of AISI 304 stainless steel
Front panels in tempered glass
Hinged front window
Single Speed Centrifugal Motor blower
Soft-touch keys on the control panel provide control of fan and fluorescent lamps lighting UV lamp.

MS tubular stand (powder coated) to cost extra.
Microprocessor based digital controller with LCD display with air velocity sensor.
TFT Touch Screen Display Controller with air velocity sensor.

Technical data

Model	Work Chamber Dimensions (W x D x H) mm	Overall Dimensions (W x D x H) mm	Front Opening Height (mm)	Controller	Power Supply	Power W	Noise Level	Lighting Lux	Tubular Stand (option)
#PCR-2.5	745 x 435 x 500 mm	815 x 615 x 931 mm	180	Microprocessor based digital controller with LCD display with air velocity sensor.	220/240 V - 50 Hz	200	dB(A) ≤ 65 db at 1.5 mtr. distance in open field condition	1200	MS tubular stand duly powder coated (option)
