PRO SERIES
LABORATORY ANALYTICAL BALANCE “MAC” MSW-903
This is a small description
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
Wide Range of Application

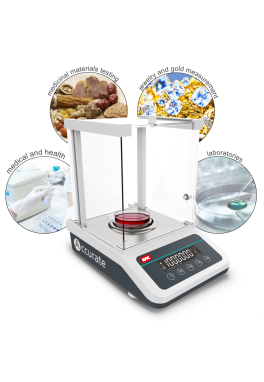

- Widely used in medical and health, medicinal materials testing, school and enterprises, laboratories, jewelry and gold measurement.
Humanization Design

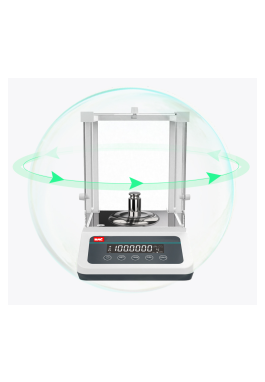

- 360° glass windshield for more accurate measurement results.
Description

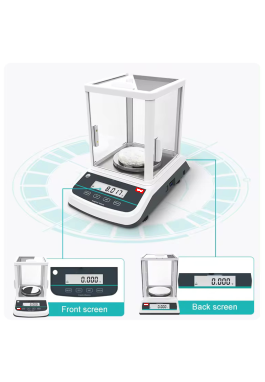

- Accurate and Stable + Dual Screen Display : Fully enclosed glass windshield, effectively reduce the impact of the environment on the weighing result, more accurate results.
- Standard RS-232 Connector : Could be connected with printers, computers and other external equipment, easy data processing, simplify the process.

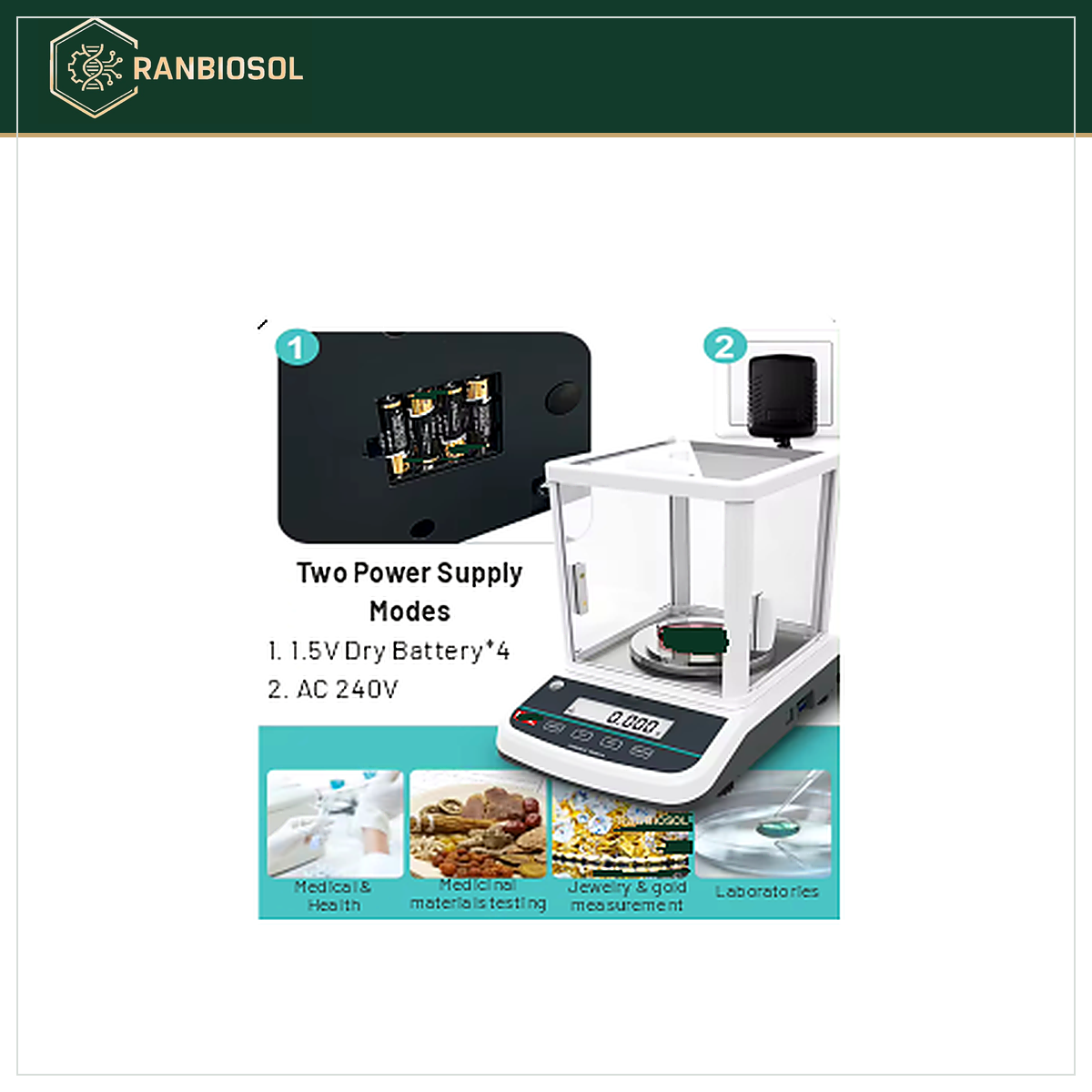

- DC and AC dual-use, Wider Application Range : Can be plugged in or used with batteries, widely uses in medical and health care, medicine testing, schools and enterprises, laboratories, Jewellary and gold measurement, etc.
- Power Saving Mode : Built-in power saving mode, can set the automatic screen off time, Energy saving and environmental protection.

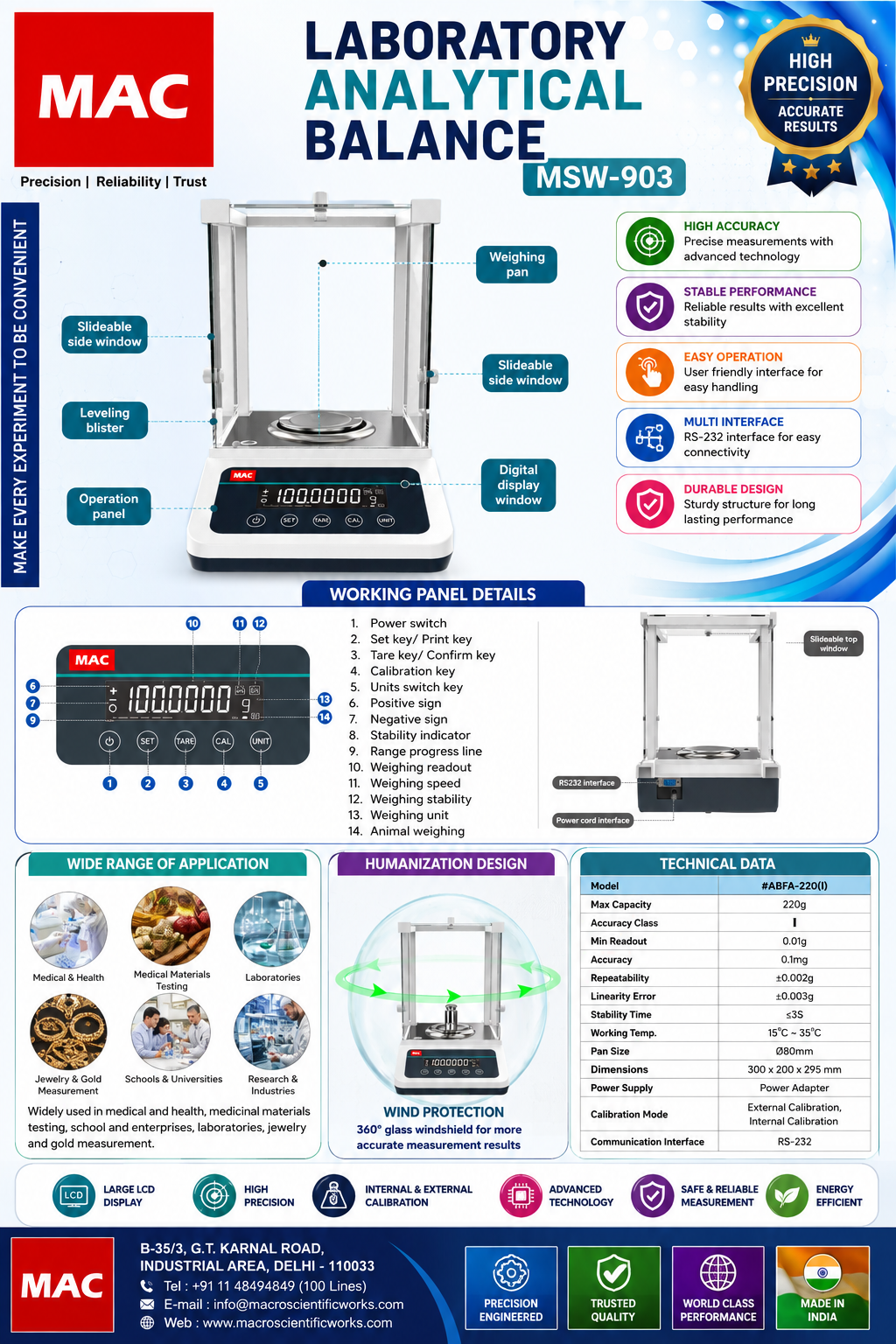

Working Panel Details
- 1. Zero mark and stability mark disappear after the balance weighing reaches stability
- 2. Zero mark
- 3. Sign of negative number
- 4. Tare sign, displayed when the tare weight exceeds 4% of the balance capacity
- 5. Battery level indicator
- 6. Optional units 6(g/kg/ct/TAR/dr/PKT/GN/TMR/gsm/tlJ/mo/dwt/oz/ib/tlT/ozt/tlH/%)
- 7. Power key
- 8. Counting key
- 9. Switch key
- 10. Tare / Calibration key
Technical data
Specifications and models
Model
#ABFA-220(I)
Max Capacity
220g
Accuracy Class
(I)
Min Readout
0.01g
Accuracy
0.1mg
Repeatability
±0.002g
Linearity Error
±0.003g
Stability Time
≤3S
Working Temperature
15°C ~ 35°C
Pan Size
Ø80mm
Dimensions
300 x 200 x 295 mm
Power Supply
Power Adapter
Calibration Mode
External Calibration, Internal Calibration
Communication Interface
RS – 232
| Model | Max Capacity |
|---|---|
| #LBFA-200(E) | 200g |
| #LBFA-300(E) | 300g |
| #LBFA-500(E) | 500g |
Accuracy Class
(II)
Min Readout
20mg
Accuracy
0.001g
Repeatability
±0.0002g
Linearity Error
±0.0002g
Pan Size
Ø90mm
Dimensions
320 x 195 x 280 mm
Power Supply
Power Adapter & 1.5V Dry Battery*4
Calibration Mode
External Calibration
