PRO SERIES
HANDHELD HIGH SPEED HOMOGENIZER “MAC” MSW-346
This is a small description
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
Description
- Ease of Using : Detachable blade replaceable and easy to use Stainless Steel Blade.

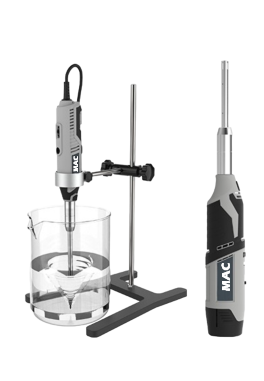

- Handheld & Tabletop More Convenient Operation : Optional stand, free your hands, hanging on the H-shaped could automatic operation bring more convenient experiments.
- Stepless Speed Control 6-Speed Equalization : 6-speed rotary speed control, easy to deal with a large range of different sizes of media, large range of rotating speeds.

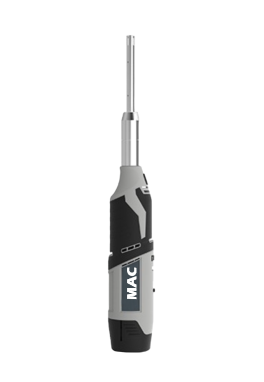

- Two Power storage Modes : Equipped with power plug Stable voltage and high working efficiency. Lithium battery power supply Convenient and long time use for outdoor experiment. #HSK-35K is suitable for plug-in operation in the laboratory. #HSK-25K is suitable for outdoor or moving operation with large-capacity battery, light and convenient to use.
Options
- SPARE (TO ORDER SEPARATELY)
- #HP-6AC, Capacity : 0.5 – 50 ml (Probe Ø 6 mm)
- #HP-8AC, Capacity : 1 – 100 ml (Probe Ø 8 mm)
- #HP-10AC, Capacity : 5 – 250 ml (Probe Ø 10 mm)
- #HP-6DC, Capacity : 0.5 – 50 ml (Probe Ø 6 mm)
- #HP-8DC, Capacity : 1 – 100 ml (Probe Ø 8 mm)
- #HP-10DC, Capacity : 5 – 250 ml (Probe Ø 10 mm)
Technical data
Specifications and models
| Model | Power Storage Method | Speed Range | Speed Control | Capacity | Dimension | Blade Specification | Blade Material | Work Process Type | Stand Material (Optional) | Allowed Ambient Humidity Temperature | Continuous Working Time | Power | Power Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| #HSH-35K | Plug-in Model | 5000 - 35000 rpm | Stepless speed control, 6-speed equalization | 0.5 - 250ml | 50 x 355 mm | Standard 10mm, Optional 6mm / 8mm | 316 Stainless Steel | Micro Batch Processing | 304 Stainless Steel Rod + Aluminum Alloy Base | 5°C – 40°C / 80% RH | < 10min | 160W | AC 220V / 50Hz |
| #HSH-2.5K | Charging Model | 0 - 25000 rpm | Stepless speed control, 6-speed equalization | 0.5 - 250ml | 50 x 375 mm | Standard 10mm, Optional 6mm / 8mm | 316 Stainless Steel | Micro Batch Processing | 304 Stainless Steel Rod + Aluminum Alloy Base | 5°C – 40°C / 80% RH | < 10min | 12V DC Charging Type Battery | AC 240 W |
