SIEVE SHAKER & TEST SIEVES

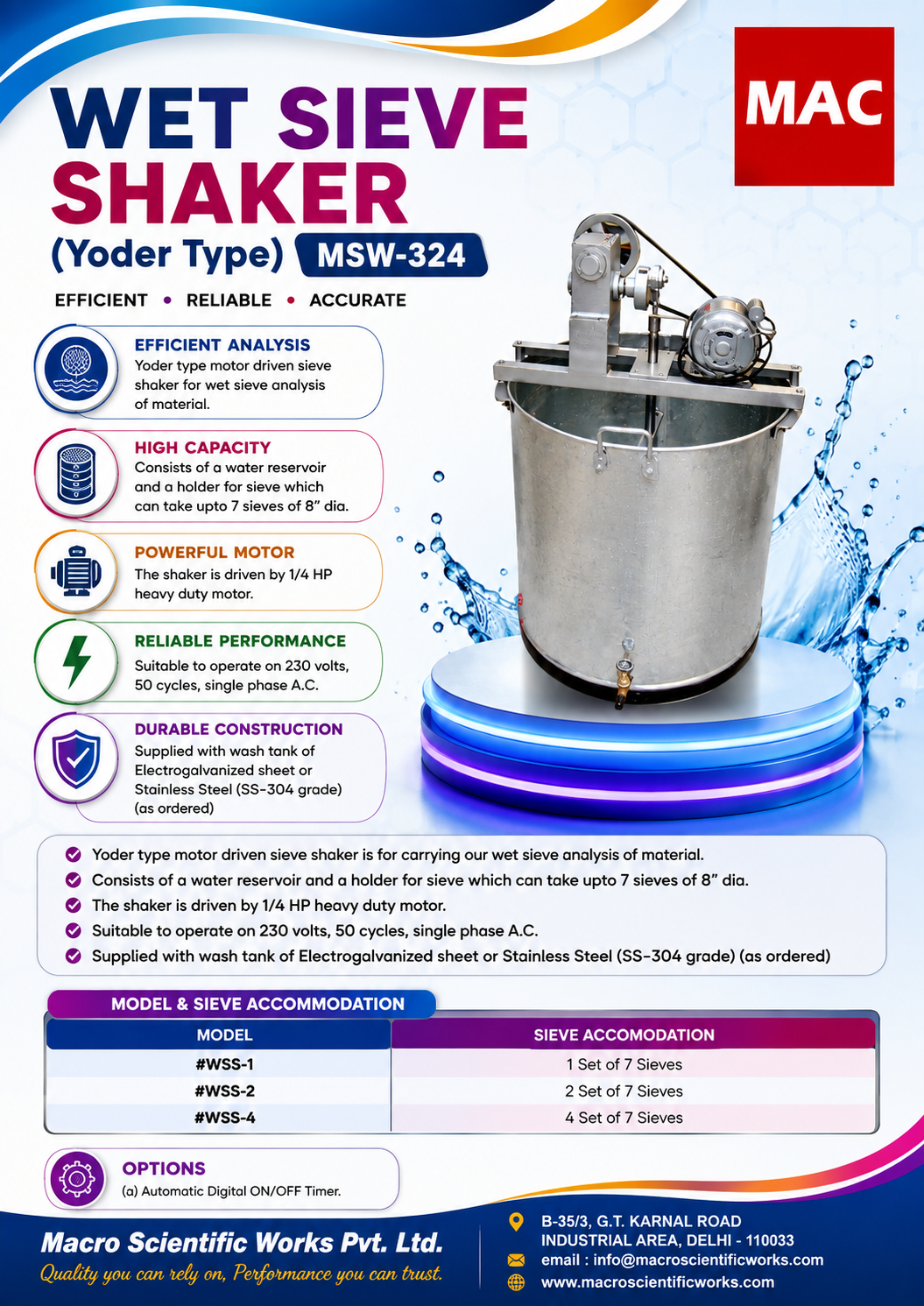

WET SIEVE SHAKER (YODER TYPE) “MAC” MSW-324
This is a small description
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
| FEATURES |
|---|
| Yoder type motor driven sieve shaker is for carrying our wet sieve analysis of material. |
| Consists of a water reservoir and a holder for sieve which can take upto 7 sieves of 8“ dia. |
| The shaker is driven by 1/4 HP motor through a belt drive. |
| Fitted with heavy duty motor. |
| Suitable to operate on 230 volts, 50 cycles, single phase A.C. |
| Supplied with wash tank of CRC Sheet or Stainless Steel (SS-304 Grade). |
| Supplied without test sieves. |
OPTIONS
- Automatic Digital ON/OFF Timer.
Technical data
Specifications and models
| MODEL | SET OF SIEVES (8” DIA) |
|---|---|
| #WSS-1 | 1 Set of 7 Sieves |
| #WSS-2 | 2 Set of 7 Sieves |
| #WSS-4 | 4 Set of 7 Sieves |
