WAX TRIMMER

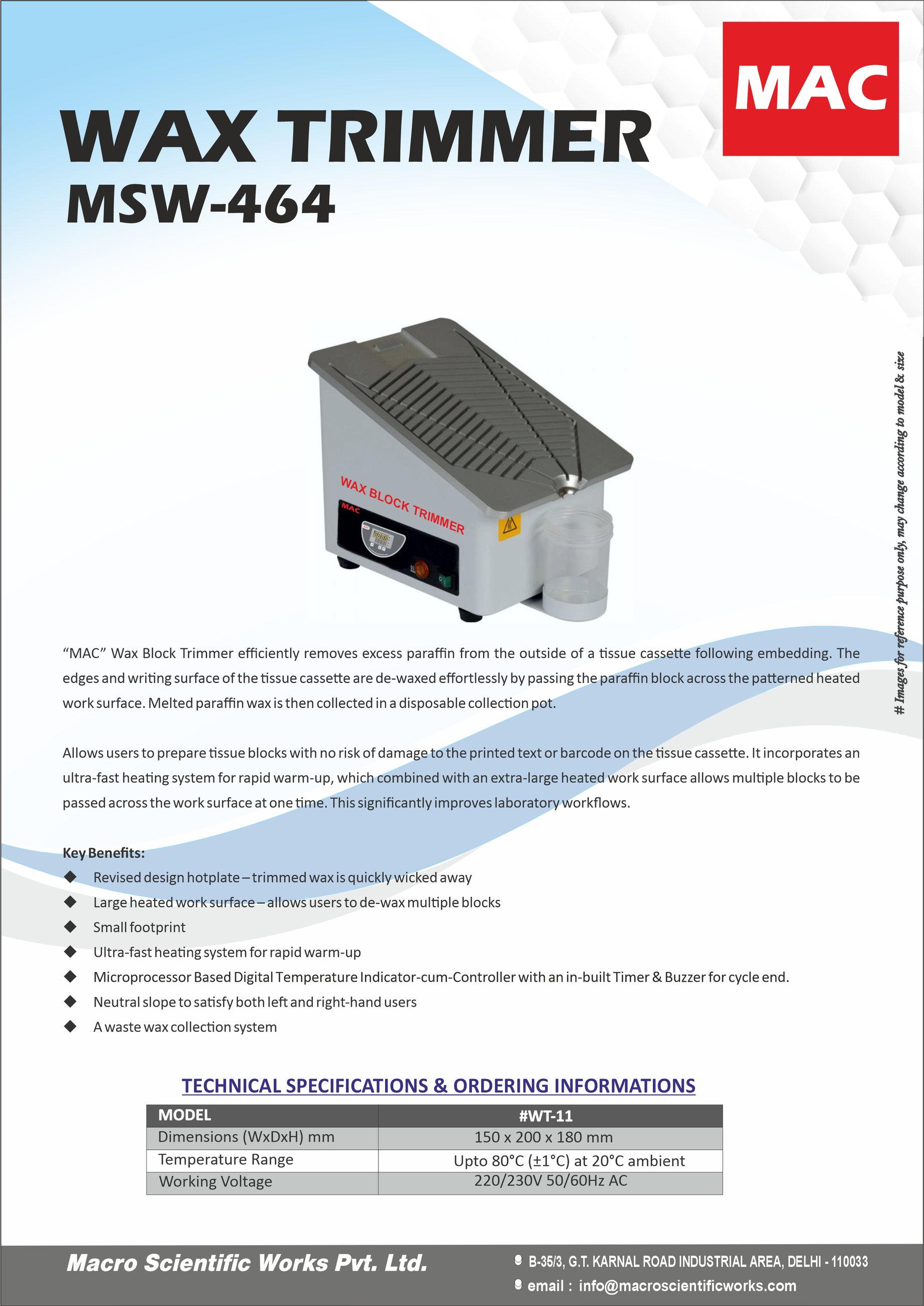

WAX TRIMMER “MAC” MSW-464
This is a small description
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
Description
- “MAC” Wax Block Trimmer efficiently removes excess paraffin from the outside of a tissue cassette following embedding. The edges and writing surface of the tissue cassette are de-waxed effortlessly by passing the paraffin block across the patterned heated work surface. Melted paraffin wax is then collected in a disposable collection pot.
- Allows users to prepare tissue blocks with no risk of damage to the printed text or barcode on the tissue cassette. It incorporates an ultra-fast heating system for rapid warm-up, which combined with an extra-large heated work surface allows multiple blocks to be passed across the work surface at one time. This significantly improves laboratory workflows.
Key Benefits
- Revised design hotplate – trimmed wax is quickly wicked away
- Large heated work surface – allows users to de-wax multiple blocks
- Small footprint
- Ultra-fast heating system for rapid warm-up
- Microprocessor Based Digital Temperature Indicator-cum-Controller with an in-built Timer & Buzzer for cycle end
- Neutral slope to satisfy both left and right-hand users
- A waste wax collection system.
Technical data
Specifications and models
| Model | #WT-11 |
|---|---|
| Dimensions (W x D x H) mm | 150 x 200 x 180 mm |
| Temperature Range | Upto 80°C (±1°C) at 20°C ambient |
