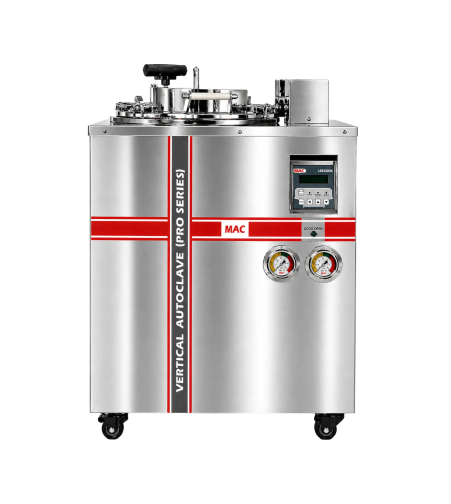

VERTICAL HIGH PRESSURE STEAM STERILIZER – TRIPLE WALLED “MAC” MSW-102(PROFAD)

Features

• Backed with 56 years of service to science and our expertise in steam pressure sterilization autoclaves. Our Top Loading PRO Series Autoclaves are the ideal companion for the modern microbiologists and institutes, pharma companies, hospitals etc.

Applications

• MAC Triple Walled High Pressure Automatic Digital Autoclaves are most ideal for critical applications requiring assured and reliable total destruction of all living micro-organisms.
• These are automatic models requiring tighter control of temperature and sterilizing time, thus eliminating any chances of under or over exposure of media/ samples with respect to temperature and hold time.
• Triple Walled High Pressure Vertical Autoclaves are used where Dry Sterilization is required.
• Leakproof silicon gasket
• Over pressure safety
• Safe and sturdy chamber manufactured from Stainless Steel (SS-304)
• Chamber is designed as per ASME guidelines.
• Low water level cut off for safety of heating elements.
• Independent safety for over temperature protection.
• Saves Power bills by upto 30%
• Outer body Stainless Steel.
• Electrical on/off safety switch
• Easy draining of chamber
• Easy portability and placement and movement
• With pressure interlock device. Heater will not start if cover is open.
• Audio visual alarm and heater cut off in case of low water for the safety of the heater elements.
• Smooth finished joint for crevice free internal chamber.
• Fitted with stainless steel pressure gauge with DUAL range dial pressure display in KPA & PSI.
• Sterilization hold time is settable in steps of 1 minutes each

Control Panel and Switchgears

• µProcessor based Controller with time and temperature settable by user.
• Operating range from 15 to 30 psi pressure. (adjustable)
• Dual Pt-100 sensor, enabling precise and accurate monitoring.
• Miniature Circuit Breaker for MAINS On/Off plus safety of control panel.
• Industrial grade energy efficient heaters reduce power bills drastically.
• To work on 430/440 Volts, 3 Phase AC supply.

Construction & Salient Features

• Sterilizing Chamber, Steam Jacket and outer chamber are made of stainless steel (SS-304 grade).
• Lid made of thick machined Stainless Steel plate.
• Radial locking lid ensures user safety and safe locking.
• Lid is fitted with Pressure Gauge, Spring Loaded Safety Valve, Manual Exhaust Valve, Vacuum Breaker-cum-Purge Valve as a safety device and audio/visual electronic water level indicator on panel.
• Drain Valve facilitates easy cleaning of the chamber.
• Moulded jointless silicon rubber gasket.
• All internal joints are argon arc welded.
• Mounting Legs, lifting rod and pedal mechanisms are made of stainless steel (SS-202).
• Control panel box of Stainless Steel (SS-202).

Usage Portability

• Single lever locking of lid for faster operations.
• Heater and pressure interlock for lid lock safety.
• Effortless lifting of lid with assisted spring push back support
• Accurate temperature control with user level flexibility. Display process and set values simultaneously.
• Microprocessor Based Fully Automatic Fuzzy Logic Control System with Alphanumeric Digital backlit LCD display.
• Automatic Steam purging and exhaust
• Fitted with AUTOMATIC DIGITAL MINUTE TIMER which starts automatically when set/desired value of temperature is achieved. When the set time period is over the heaters get switched off automatically with alarm for cycle end.
• Last cycle memory in case of abrupt power failure or accidental switch off.

Option

• TFT Touch Screen Display Controller in lieu of LCD display.

Gasket

Controller (PLC Based)

Controller

Buzzer (Cycle End)

Buzzer (Low Water Cut Off)

MOC (Sterilizing Chamber)

MOC (Steam Jacket)

MOC (External Wall)

MOC (Top Lid)

Sterilizing Pressure

Operating Pressure

Operating Parameters

Pressure Gauge

Exhaust of Pressure

Power Supply
