VERTICAL AUTOCLAVES

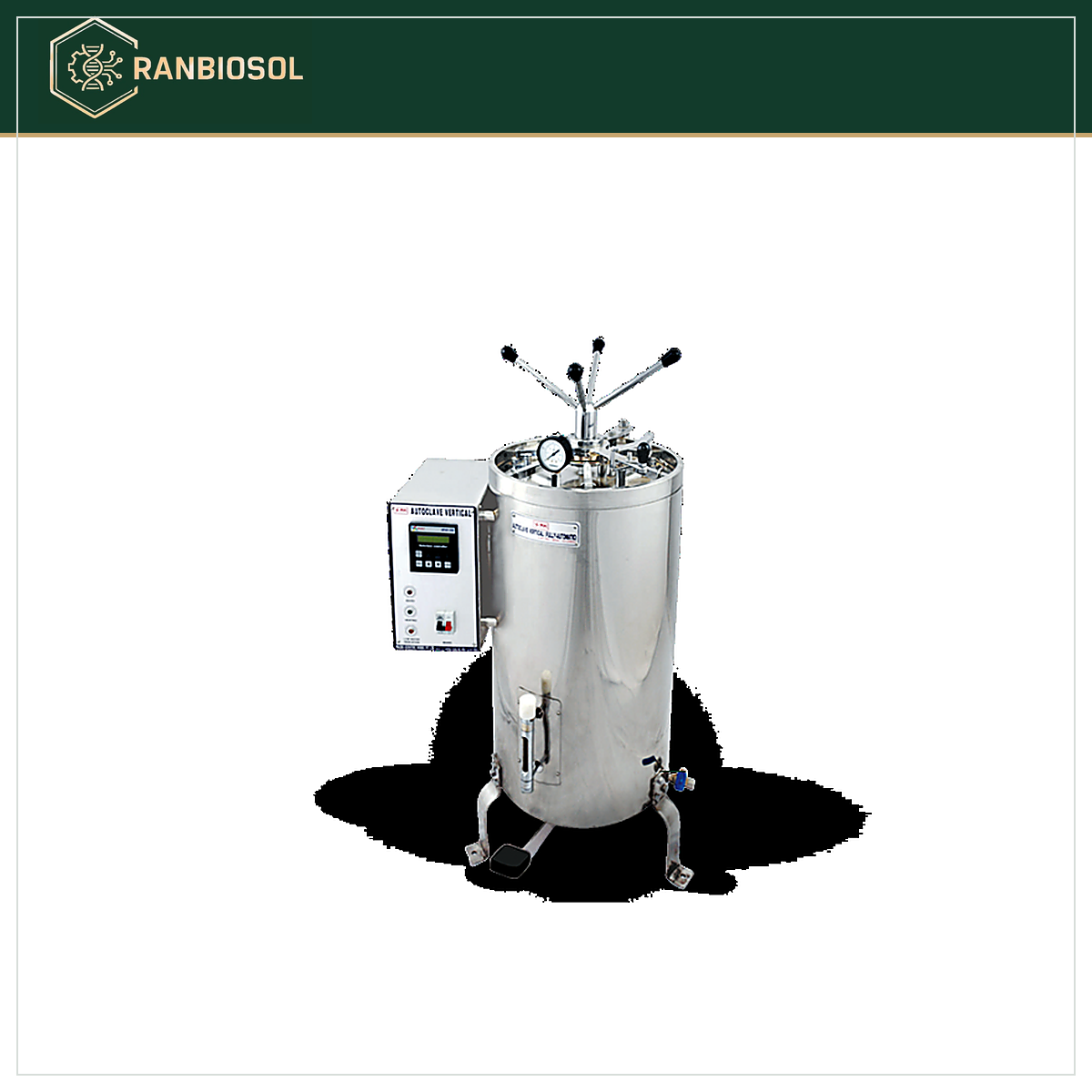

AUTOCLAVE VERTICAL (SEMI AUTOMATIC DIGITAL) “MAC” MSW-101(EX-SAD)
This is a small description
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
Features
- MAC Semi Automatic Digital Autoclaves are most ideal for critical applications requiring assured and reliable total destruction of all living micro-organisms.
- These are semi automatic models requiring tighter control of temperature and sterilizing time, thus eliminating any chances of under or over exposure of media/ samples with respect to temperature and hold time.
- Inner chamber is made of Stainless Steel (SS-304 grade).
- Outer body is made of Stainless Steel.
- Heaters cover stand and carrier/bucket are made of Stainless Steel.
- Lid made of thick machined Stainless Steel plate.
- Radial locking lid ensures user safety and safe locking.
- Radial arms are made of mild steel.
- Legs are made of mild steel.
- Rings & legs are made of mild steel.
- Lid is fitted with Pressure Gauge, Spring Loaded Safety Valve, extra Safety Valve, Manual Exhaust Valve, Vacuum Breaker-cum-Purge Valve as a safety device and water level indicator.
- Drain Valve facilitates easy cleaning of the chamber.
- Moulded jointless silicon rubber gasket.
- All internal joints are argon arc welded, ground and polished to give crevice free internals.
- µProcessor based Controller with time and temperature settable by user.
- Operating range from 15 to 22 psi pressure. (adjustable)
- Class ‘A’ Platinum (Pt-100) sensor, enabling precise and accurate monitoring in 0.1°C resolution and ±1°C accuracy.
- End of cycle buzzer to alert the user.
- Miniature Circuit Breaker for MAINS On/Off plus safety of control panel.
- Industrial grade energy efficient heaters reduce power bills drastically.
- Fitted with low water cut-off for general safety of heating elements.
- To work on 220/230Volts, 50/60 Hz AC supply.
Technical data
Specifications and models
| Model | Inner Dimensions (Dia x Height) | Capacity | Heater Load |
|---|---|---|---|
| #AVS-28(EX) | Ø250x450mm | 28/22 Ltrs. | 2.0 KW |
| #AVS-43(EX) | Ø300x500mm | 43/40 Ltrs. | 3.0 KW |
| #AVS-64(EX) | Ø350x550mm | 64/53 Ltrs. | 3.0 KW |
| #AVS-91(EX) | Ø400x600mm | 91/78 Ltrs. | 4.0 KW |
| #AVS-135(EX) | Ø450x710mm | 135/113 Ltrs. | 4.0 KW |
| #AVS-210(EX) | Ø550x760mm | 210/187 Ltrs. | 5.0 KW |
Gasket
Made of Jointless Silicon Rubber
Controller
Semi Automatic Digital temperature Indicator-cum-Controller
Display
Digital LED with Set Value (SV) and Process Value (PV)
Timer (Auto Time Control) & Buzzer
Fitted with AUTOMATIC DIGITAL MINUTE TIMER which starts automatically when set/desired value of temperature is achieved. When the set time period is over the heaters get switched off automatically
Buzzer
Alarm for cycle end
Sterilizing Pressure
1.2 kgf /cm² (15 psi) at 121ºC
Operating Pressure
From 15psi to 22 psi (Adjustable)
MOC (Pressure Vessel)
Stainless Steel (SS-304)
MOC (External Wall)
Stainless Steel
MOC (Top Lid)
Thick machined Stainless Steel plate
Basket
Stainless Steel (SS-304)
Exhaust Supply
Manually through a exhaust valve
Power Supply
220/230V AC, 50/60Hz
