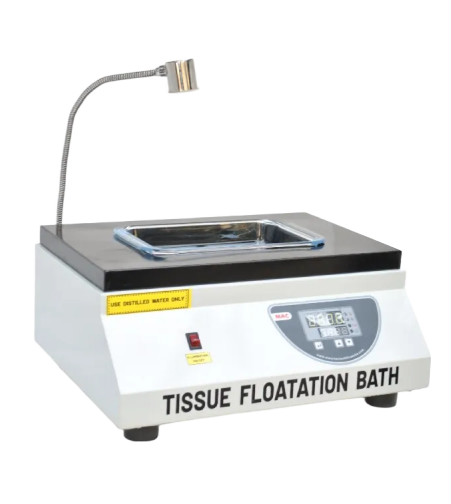

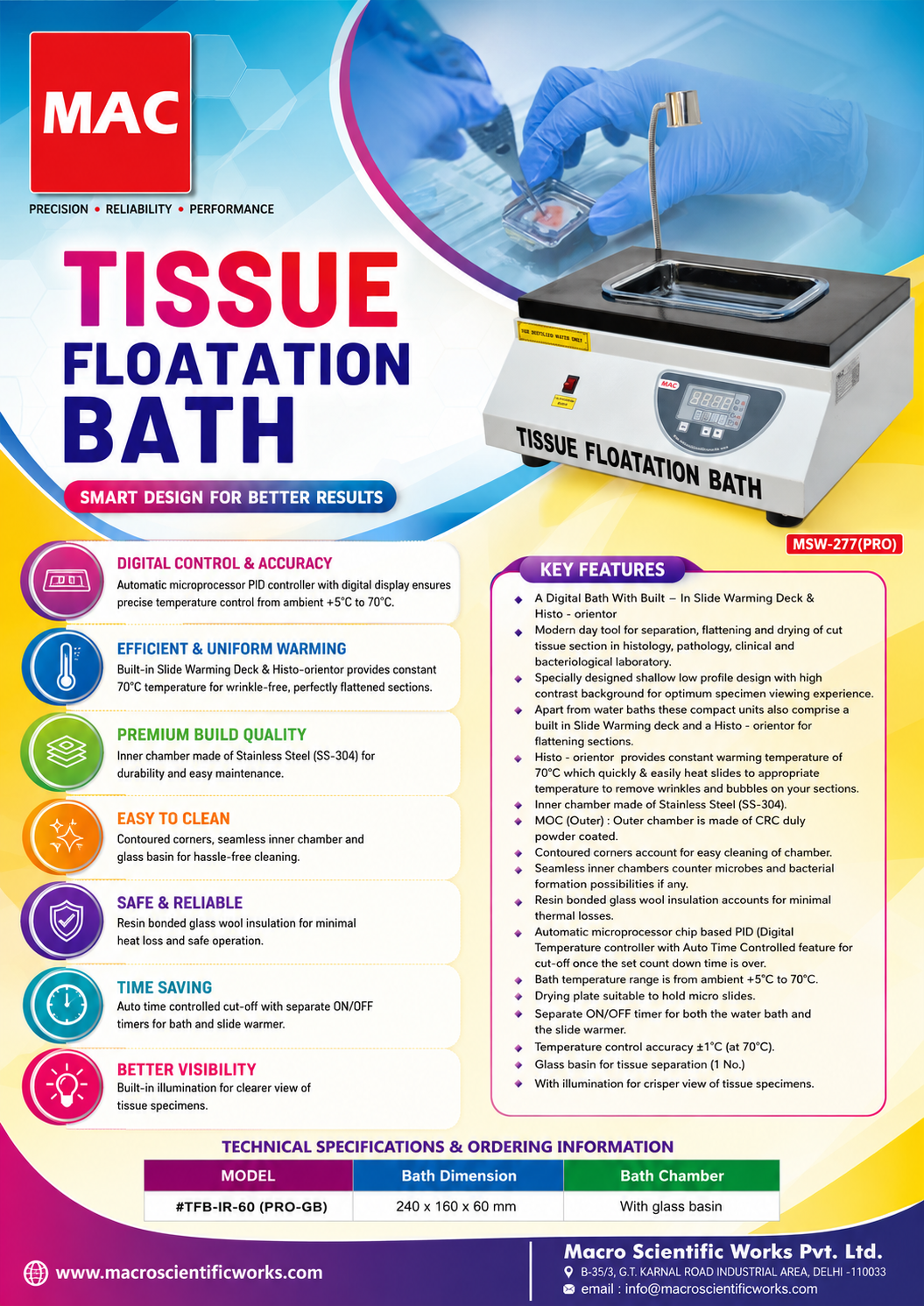

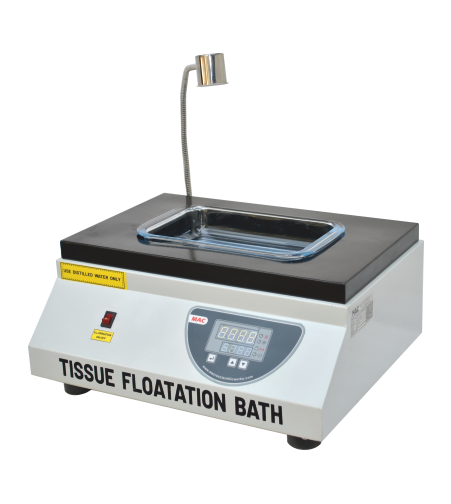

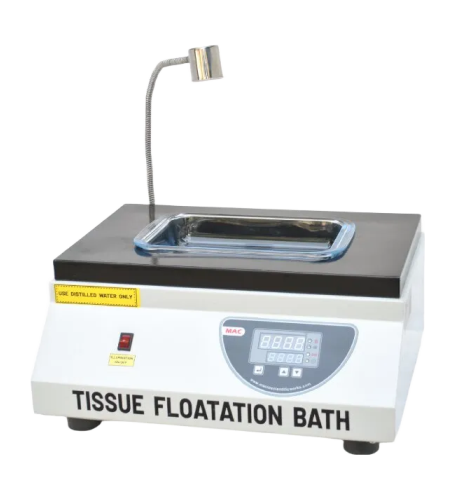

TISSUE FLOATATION BATH "MAC" MSW-277(PRO)
“MAC’ Tissue Floatation Baths is a modern day tool for separation, flattening out and drying of cut tissues section in histology, pathology, clinical and bacteriological laboratory.
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
Description
“MAC’ Tissue Floatation Baths is a modern day tool for separation, flattening out and drying of cut tissues section in histology, pathology, clinical and bacteriological laboratory.
features
- Specially designed shallow low profile design.
- Die pressed seamless leak-proof inner chamber of Stainless Steel (SS-304).
- Contoured corners account for easy cleaning of the chamber.
- Seamless inner chambers counter microbes and bacteria formation possibilities if any.
- Conventional drying slabs for pre-drying of slides.
- Resin bonded glass wood insulation accounts for minimal thermal losses
- Automatic microprocessor chip based PID Digital Temperature controller with AUTO TIME CONTROLLED feature for cut-off once the set count downtime is over.
- Temperature range from ambient +5° C to 70° C.
- Temperature control accuracy ±1° C (at 60° C)
- Dry run safety alarm.
- Inner bath chamber and lid made of Stainless Steel (SS-304 grade).
- Outer chamber made of CRC Sheet duly powder coated Or Stainless Steel (as ordered).
Technical data
Specifications and models
| MODEL | BATH DIMENTION(L x B x D) in mm | Bath Chamber |
|---|---|---|
| #TFB-IR-60(PRO) | 240x160x60 | With Glass Basin |
