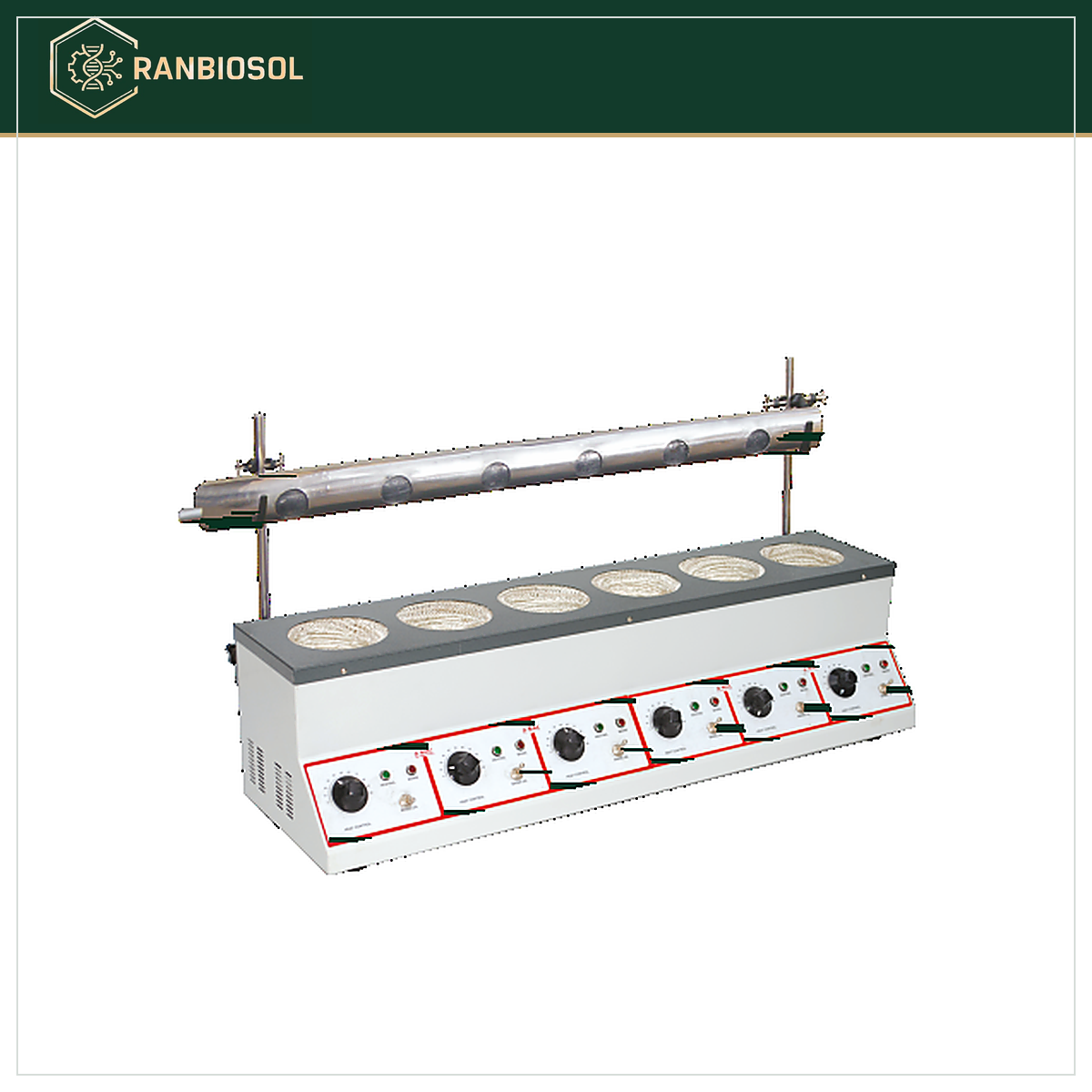

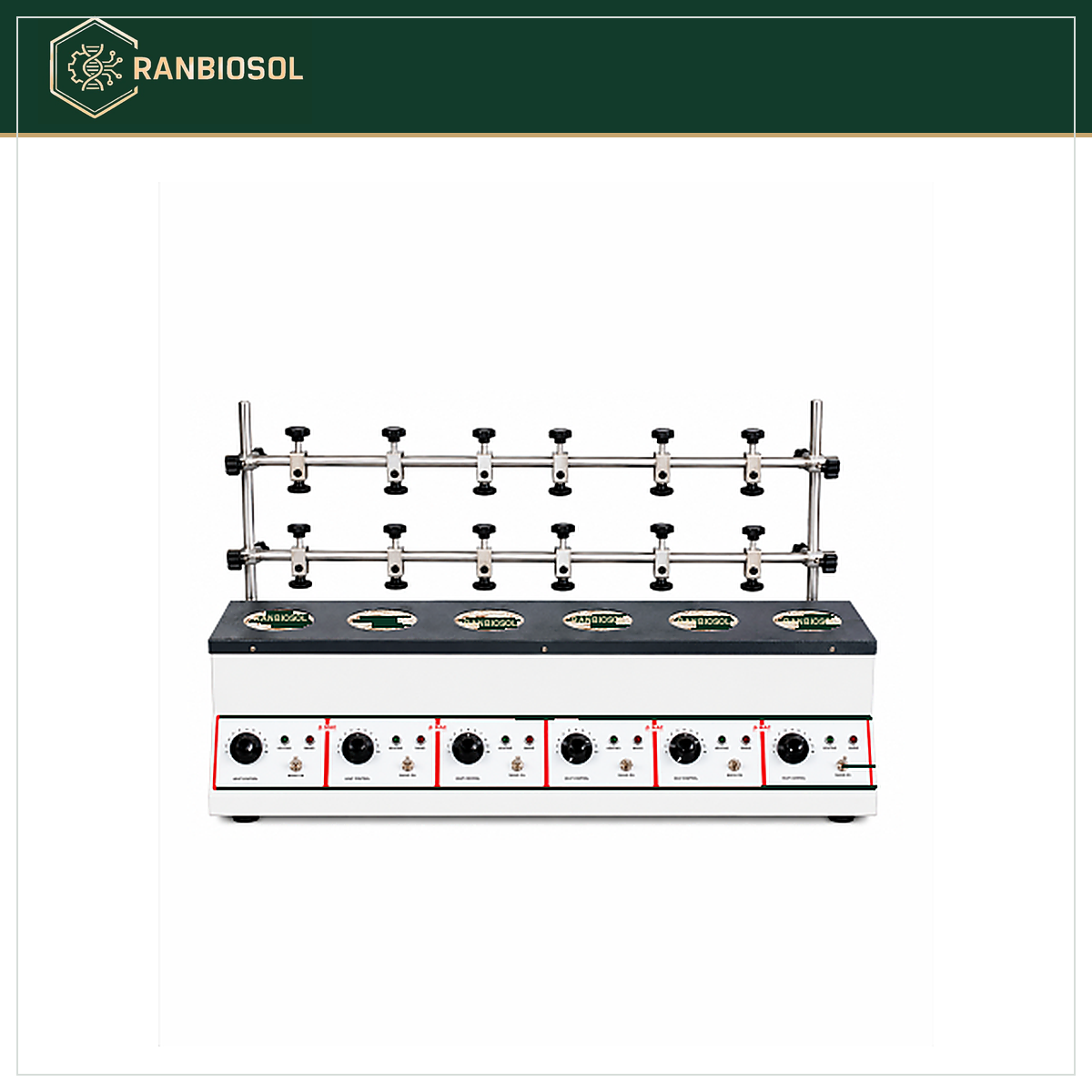

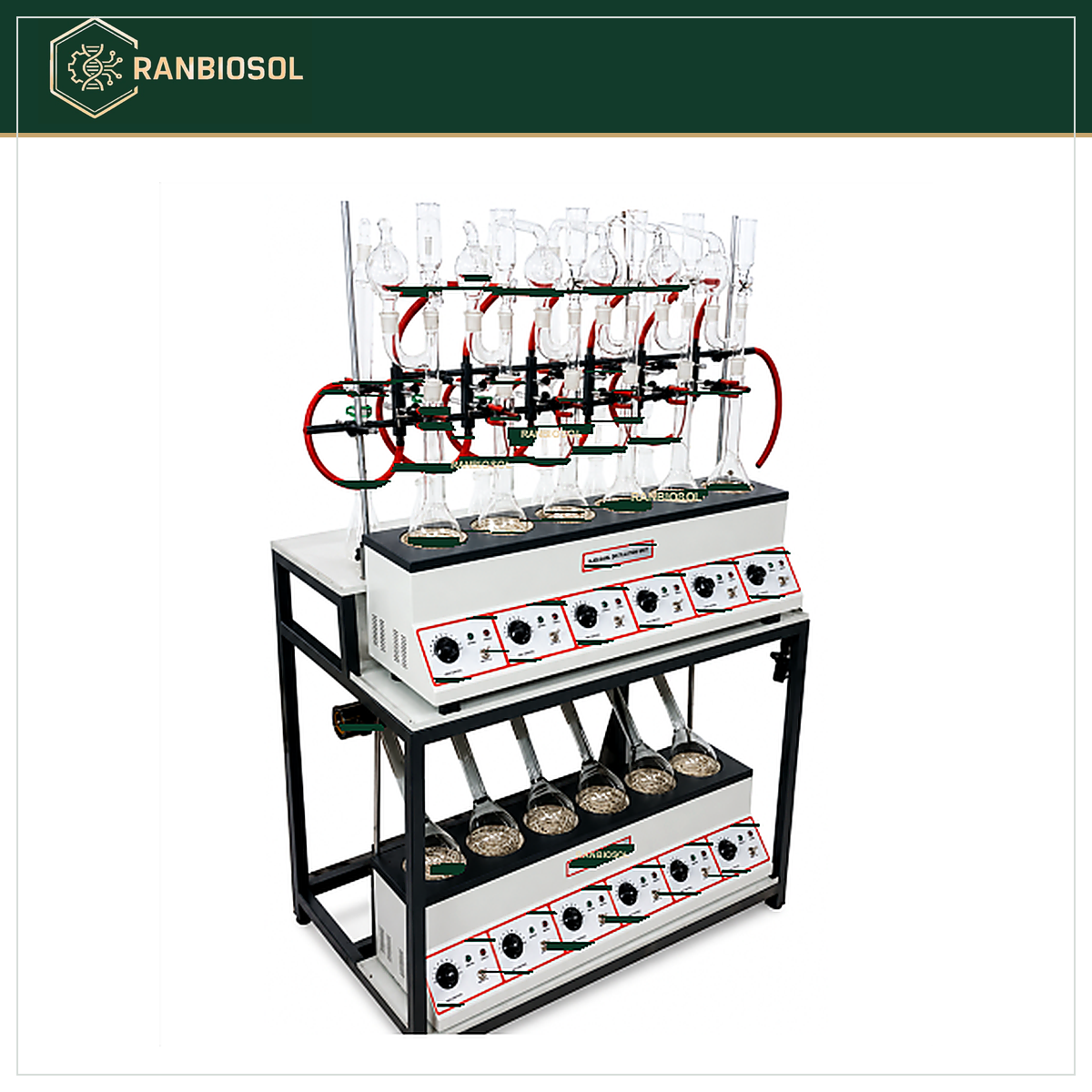

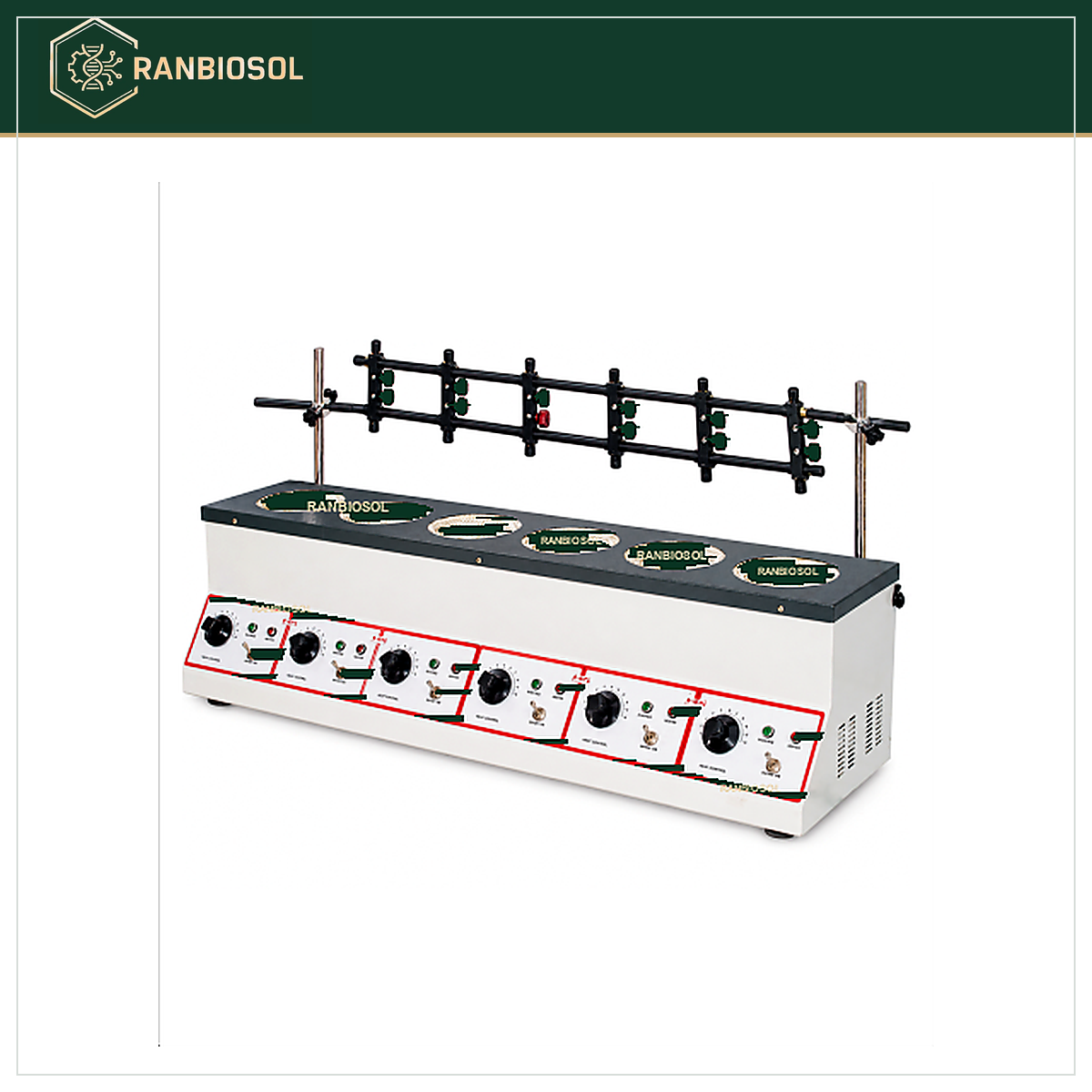

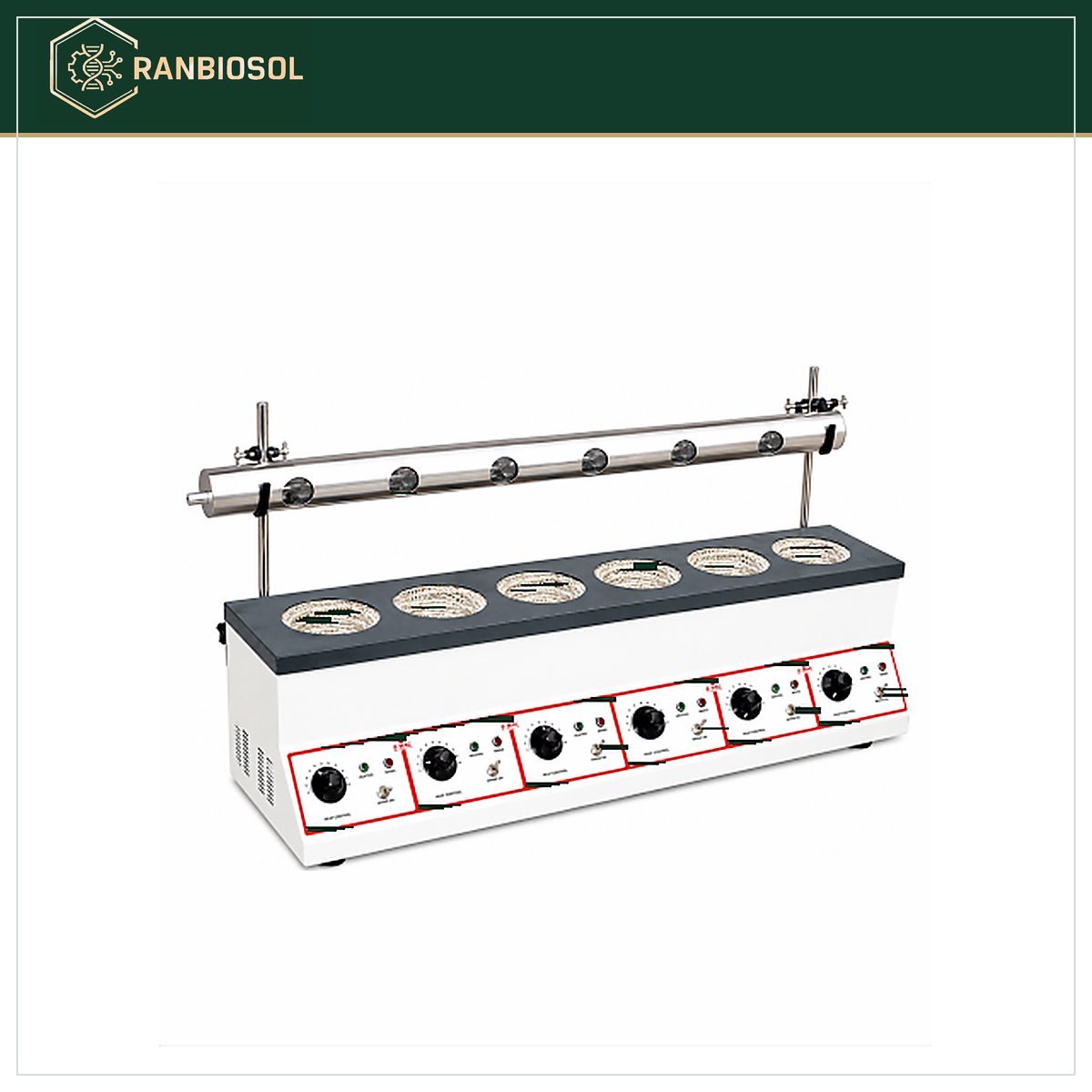

SOXHLET EXTRACTION UNIT RBS MSW-436
Ranbiosol Soxhlet Extraction Unit is elegantly designed which delivers safe heating and unmatched extraction process. Suitable for chemical analysis of volatile organic compounds /lipids obtained from solid test material such as grain, food, oil, bio-fuel and waste etc.
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
FEATURES
- Mantle Type heating system.
- Ideal heater for the extractors of Soxhlet and other types.
- Suitable to heat soxhlet flasks of 50-500ml.
- Consists of mild steel sheet housing, two vertical & two horizontal rods with adopters and screws to hold the flasks.
- Rating of each test: 200 Watts.
- Supplied with or without Glass Parts & Clamps. (as ordered)
- To work on 220 / 230 A.C. supply.
Technical data
Specifications and models
| MODEL | #RBS SEU-3 | #RBS SEU-6 |
|---|---|---|
| CAPACITY | 50-500 ml | 50-500 ml |
| MANIFOLD | Unit of 3 tests | Unit of 6 tests |
| HEATING SYSTEM | Mantle Type | Mantle Type |
| RATING EACH TEST | 200 Watts | 200 Watts |
