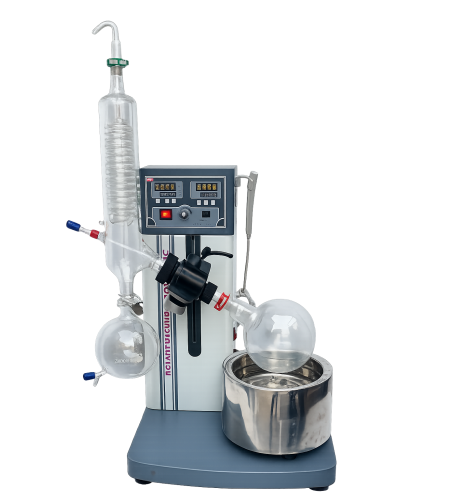

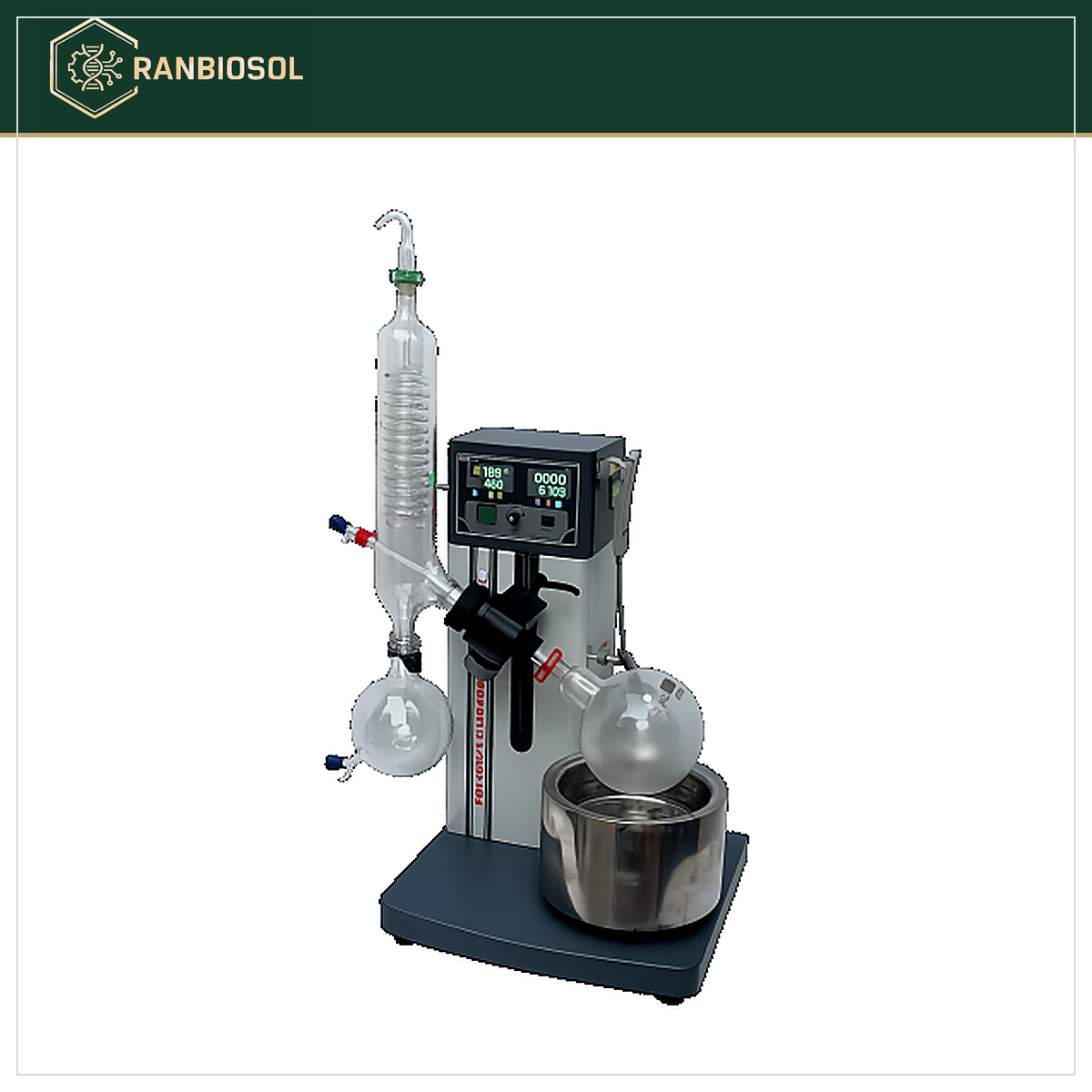

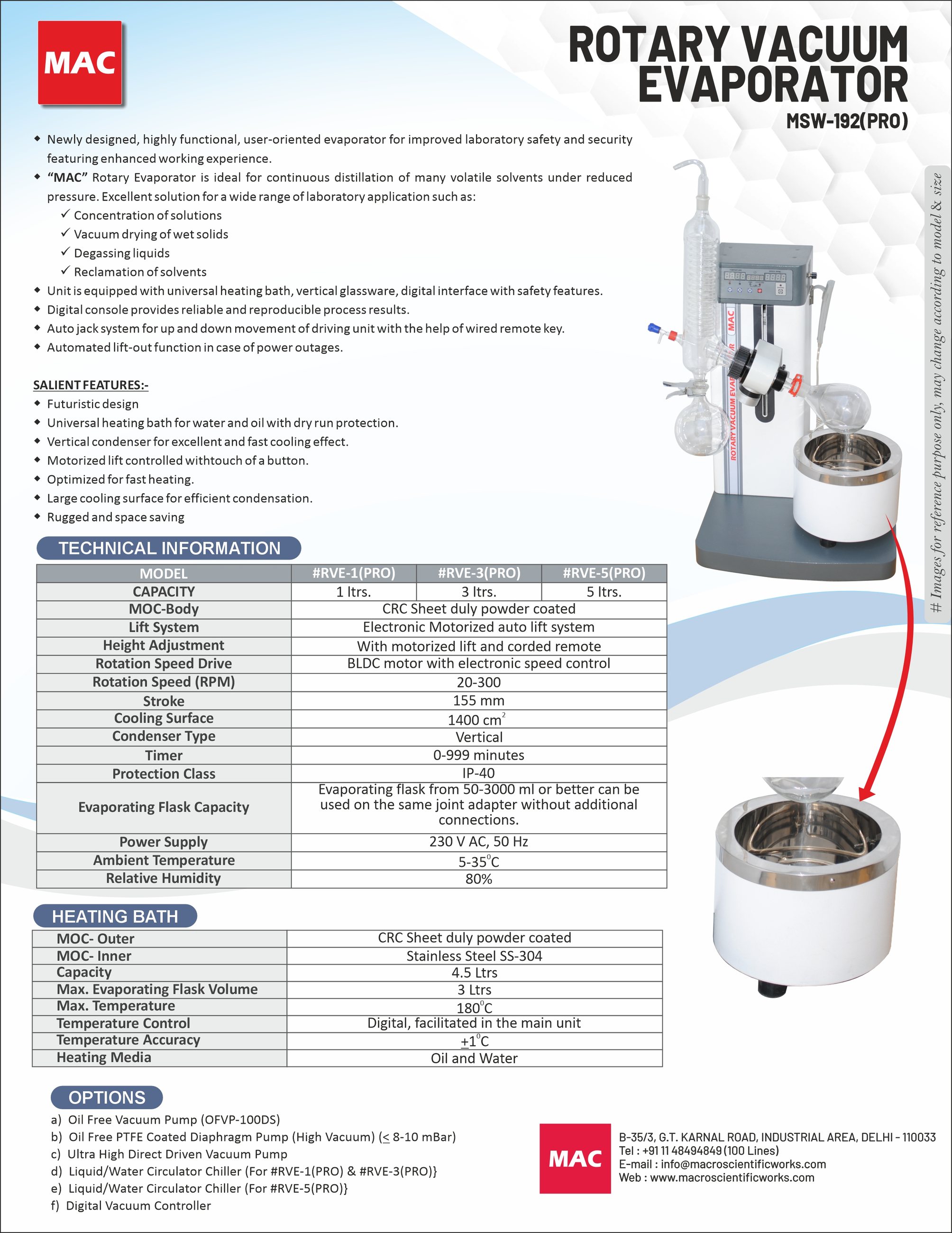

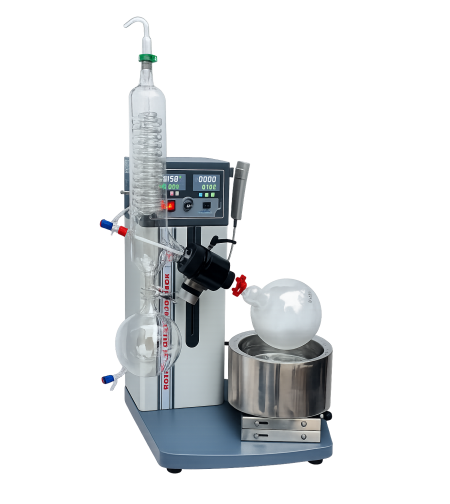

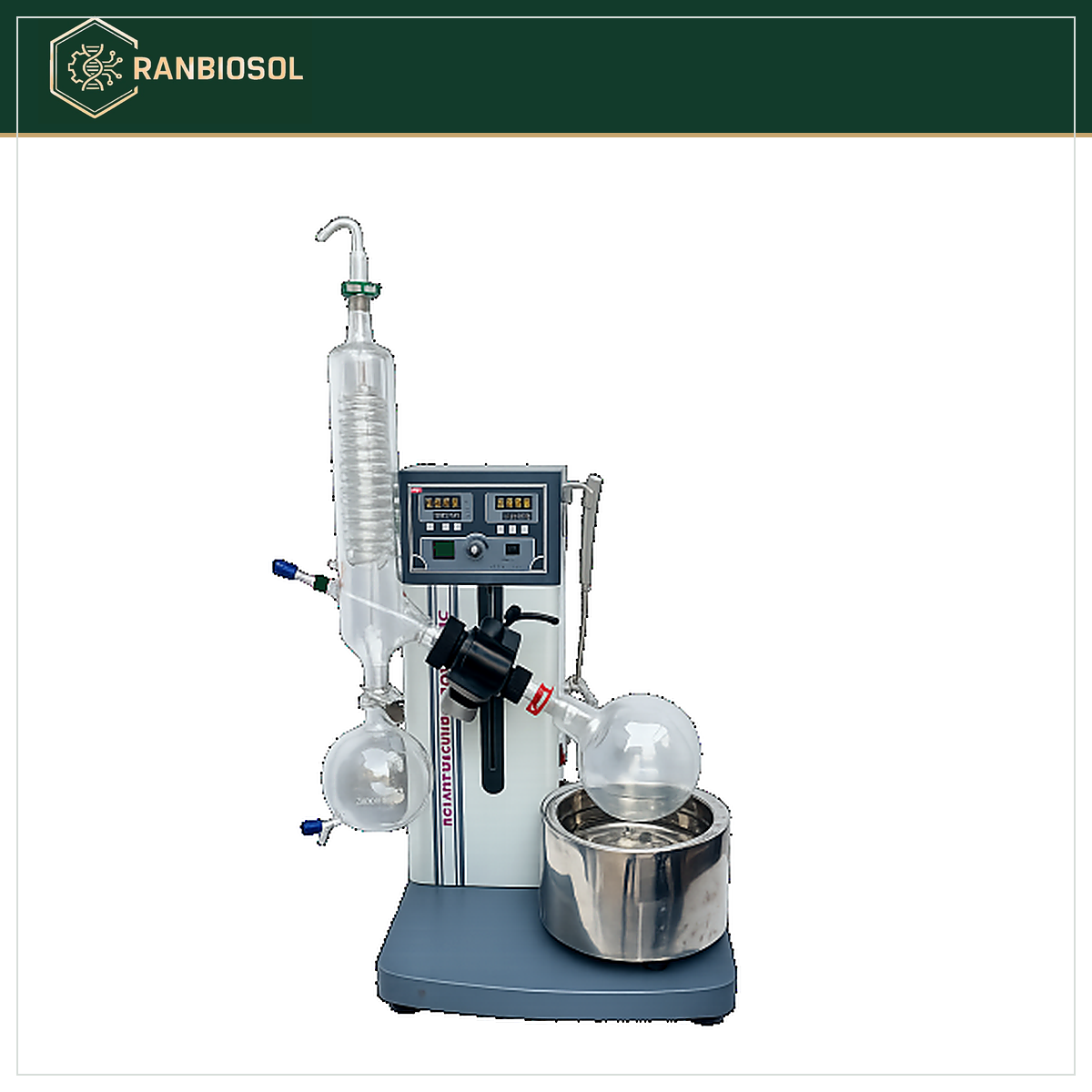

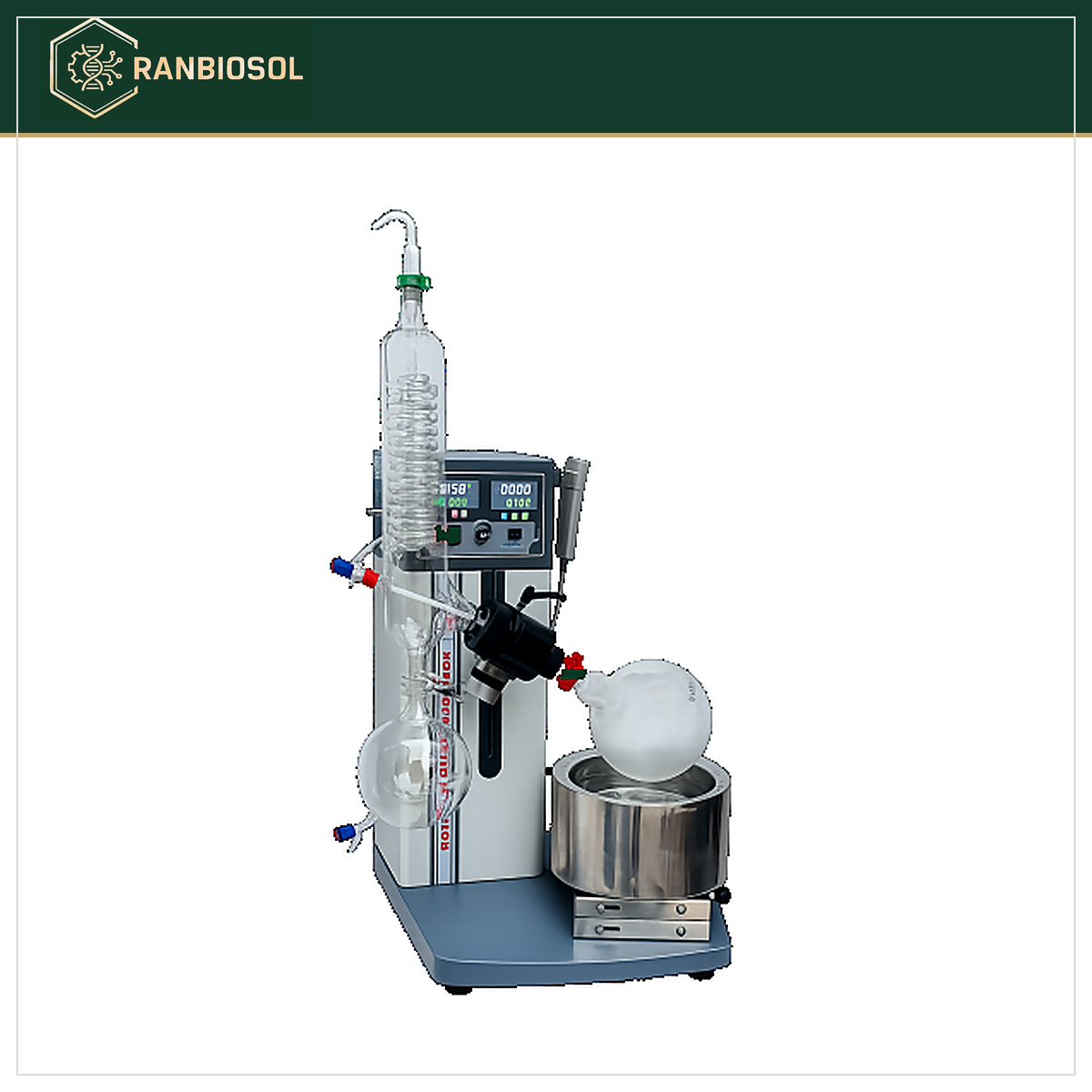

ROTARY VACUUM EVAPORATOR (DIGITAL MODEL WITH MOTORIZED LIFT) MSW-192(PRO)
Efficient PRO series makes evaporation and distillations under vacuum and rotation at controlled high/low temperatures with motorized lift with MICROPROCESSOR DIGITAL CONTROL PANELS.
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
Features
- Newly designed, highly functional, user-oriented evaporator for improved laboratory safety and security featuring enhanced working experience.
- MAC Rotary Evaporator is ideal for continuous distillation of many volatile solvents under reduced pressure. Excellent solution for a wide range of laboratory application such as:
- 1. Concentration of solutions.
- 2. Vacuum drying of wet solids
- 3. Degassing liquids
- 4. Reclamation of solvents
- Unit is equipped with universal heating bath, vertical glassware, digital interface with safety features.
- Digital console provides reliable and reproducible process results.
- Auto jack system for up and down movement of driving unit with the help of wired remote key.
- Automated lift-out function in case of power outages.
SALIENT FEATURES
- Futuristic design
- Universal heating bath for water and oil with dry run protection.
- Vertical condenser for excellent and fast cooling effect.
- Motorized lift controlled withtouch of a button.
- Optimized for fast heating.
- Large cooling surface of 1400cm2 for efficient condensation.
- Rugged and space saving
Optional
- Oil Free Vacuum Pump (OFVP-100DS)
- Oil Free PTFE Coated Diaphragm Pump (Ultra High Vacuum) (≤8–10 Mbar)
- Ultra High Direct Driven Vacuum Pump
- Liquid/Water Circulator Chiller {For #RVE-1(PRO) & #RVE-3(PRO)}
- Liquid/Water Circulator Chiller {For #RVE-5(PRO)}
- Digital Vacuum Controller
Technical data
Specifications and models
| Model | Capacity |
|---|---|
| #RVE-1(PRO) | 1 Ltr. |
| #RVE-3(PRO) | 3 Ltrs. |
| #RVE-5(PRO) | 5 Ltrs. |
MOC Body
- CRC Sheet duly powder coated
Lift System
- Electronic motorized auto lift system
Height Adjustment
- With motorized lift and corded remote
Rotation Speed Drive
- BLDC motor with electronic speed control
Rotation Speed (RPM)
- 20-300
Stroke
- 155 mm
Cooling Surface
- 1400 cm²
Condenser Type
- Vertical
Timer
- 0 - 999 minutes
Protection Class
- IP-40
Controller
- Microprocessor Based Digital Controller with LED Display
Evaporating Flask Capacity
- Evaporating flask from 50-3000 ml or better can be used on the same joint adapter without additional connections
Power supply
- 230V AC, 50 Hz
Ambient Temperature
- 5-35°C
Relative Humidity
- 80%
HEATING BATH
- .
MOC-Outer
- CRC Sheet duly powder coated.
MOC-Inner
- Stainless Steel SS-304.
Capacity
- 4.5 Ltrs.
Max. Evaporating Flask Volume
- 3 Ltrs.
Max. Temp.
- 180°C
Temperature Control
- Digital, facilitated in the main unit
Temperature Accuracy
- ±1°C
Heating Media
- Oil and Water
