FUME HOODS

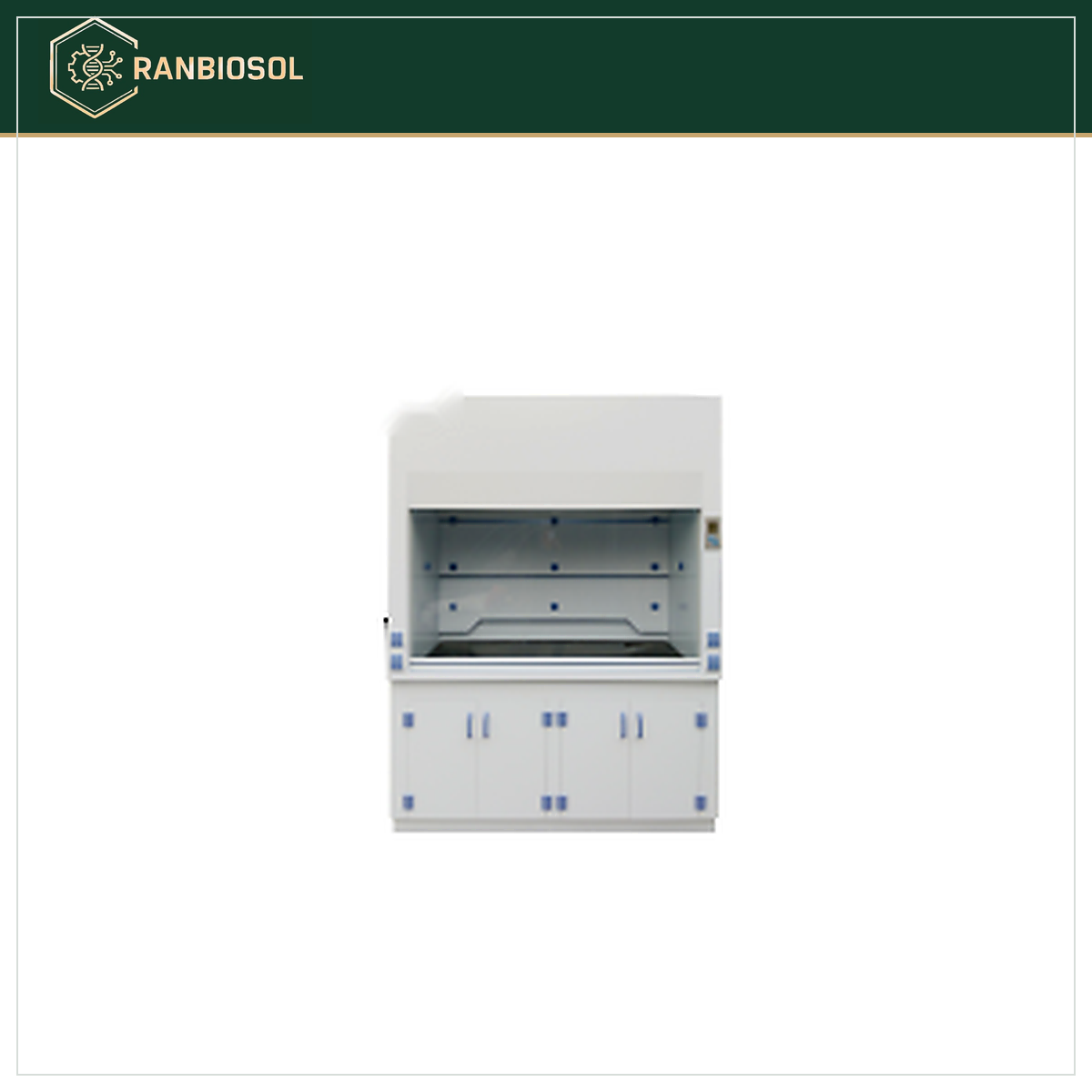

PP FUME HOOD MSW-167(PP)
This is a small description
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
Features
- Fume hood is a very important part of ventilation system in laboratory.
- Laboratory has a good ventilation environment to keep experimenters away from inhaling or swallowing hazardous gases, smoke, dust, mist and particulate matters or organisms etc.
- Fume hood is designed for removing these hazardous matters from laboratory.
- Fitted with exhaust blower assembly mounted on top of the unit.
Technical data
Specifications and models
| Model | Working Dimensions (WXDXH) (mm) | External Dimensions (WXDXH) (mm) | Main Material | Illumination | Gas Collecting Hood Size | Exhaust Air Rate |
|---|---|---|---|---|---|---|
| #PPFH-3 | 900x700x1100 | 1200x850x2350 | 5/6/8 mm PP Board | ≥300 LUX | Ø200 | 1200m³/h |
| #PPFH-4 | 1200x700x1100 | 1500x850x2350 | 5/6/8 mm PP Board | ≥300 LUX | Ø200 | 1500m³/h |
| #PPFH-5 | 1500x700x1100 | 1800x850x2350 | 5/6/8 mm PP Board | ≥300 LUX | Ø200 | 1800m³/h |
