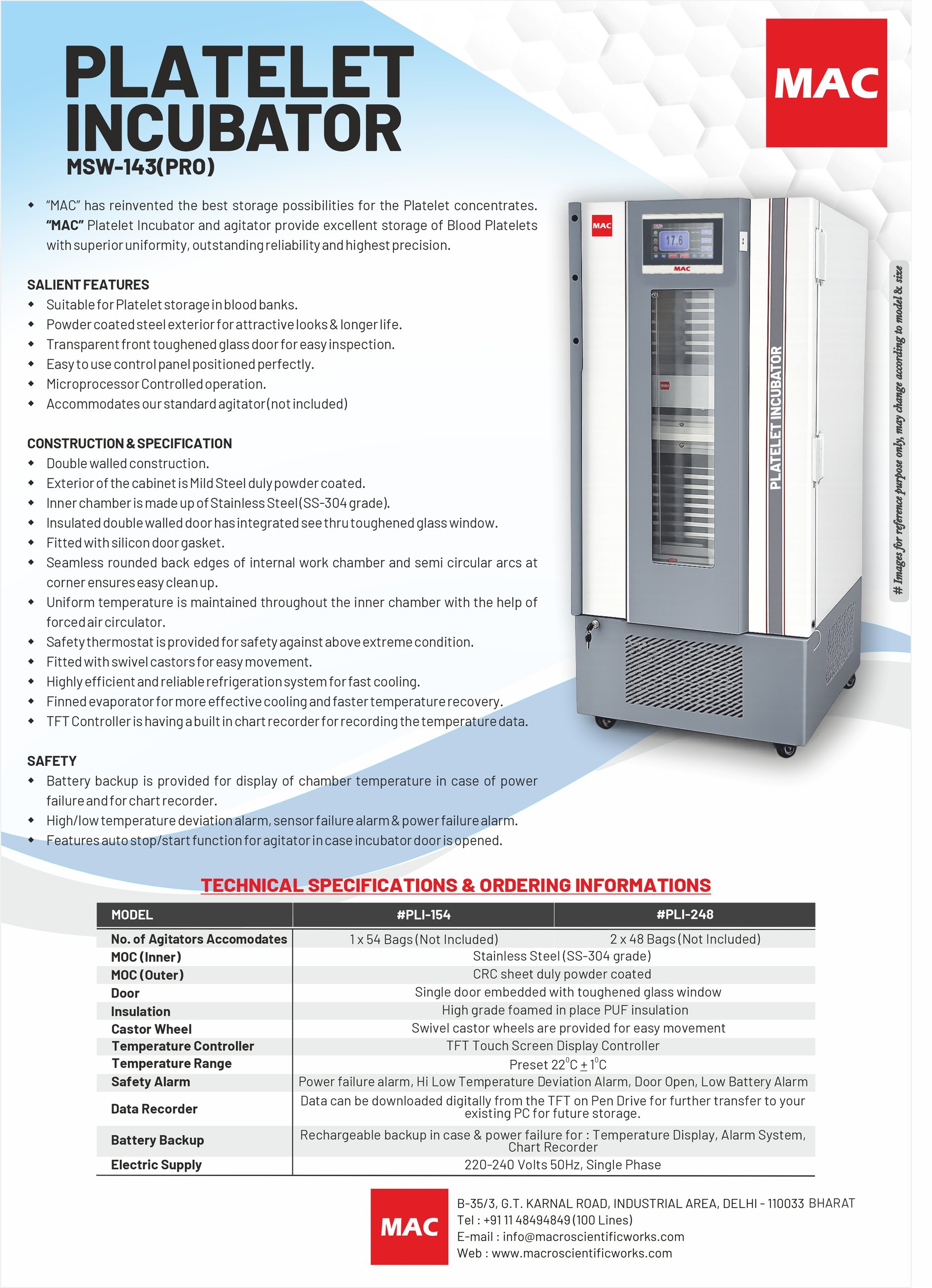

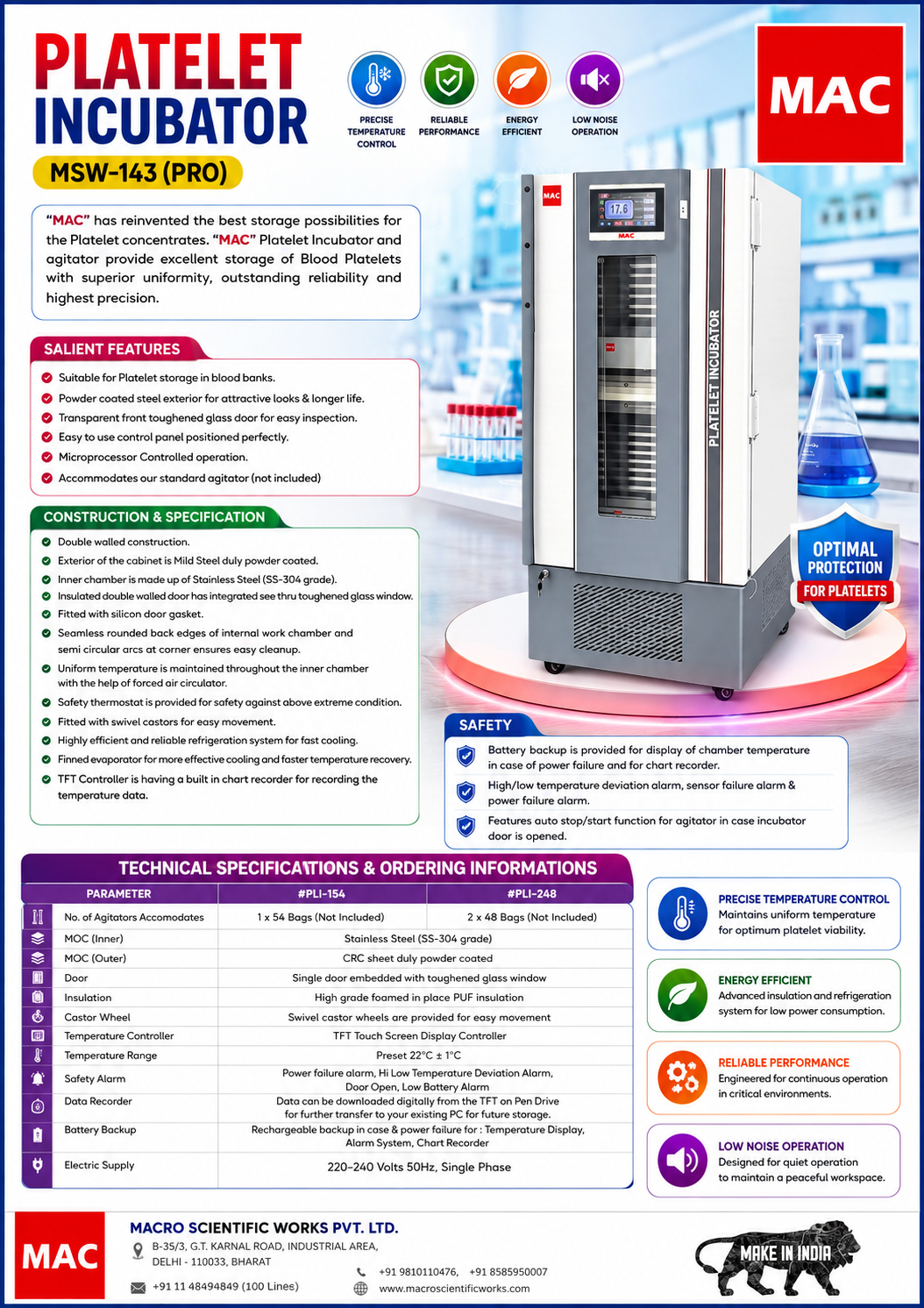

PLATELET INCUBATOR “MAC” MSW-143(PRO)

APPLICATION

• “MAC” has reinvented the best storage possibilities for the Platelet concentrates. “MAC” Platelet Incubator and agitator provide excellent storage of Blood Platelets with superior uniformity, outstanding reliability and highest precision.

SALIENT FEATURES

• Suitable for Platelet storage in blood banks.
• Powder coated steel exterior for attractive looks & longer life.
• Transparent front toughened glass door for easy inspection.
• Easy to use control panel positioned perfectly.
• Microprocessor Controlled operation.

CONSTRUCTION & SPECIFICATION

• Double walled construction.
• Exterior of the cabinet is Mild Steel duly powder coated.
• Inner chamber is made up of Stainless Steel (SS-304 grade).
• Insulated double walled door has integrated see thru toughened glass window.
• Fitted with silicon door gasket.
• Seamless rounded back edges of internal work chamber and semi circular arcs at corner ensures easy clean up.
• Uniform temperature is maintained throughout the inner chamber with the help of forced air circulator.
• Safety thermostat is provided for safety against above extreme condition.
• Fitted with swivel castors for easy movement.
• Highly efficient and reliable refrigeration system for fast cooling.
• Finned evaporator for more effective cooling and faster temperature recovery.
• Equipped with a built in circular chart recorder for recording the temperature data.
• With specially designed platform to hold platelet agitator.

SAFETY

• Battery backup is provided for display of chamber temperature in case of power failure and for chart recorder.
• High/low temperature deviation alarm, sensor failure alarm & power failure alarm.
• Features auto stop/start function for agitator in case incubator door is opened.

MOC (Inner)

MOC (Outer)

Door

Insulation

Caster Wheel

Temperature Controller

Temperature Range

Safety Alarm

Data Recorder

Battery Backup

Electric Supply
