SHAKERS

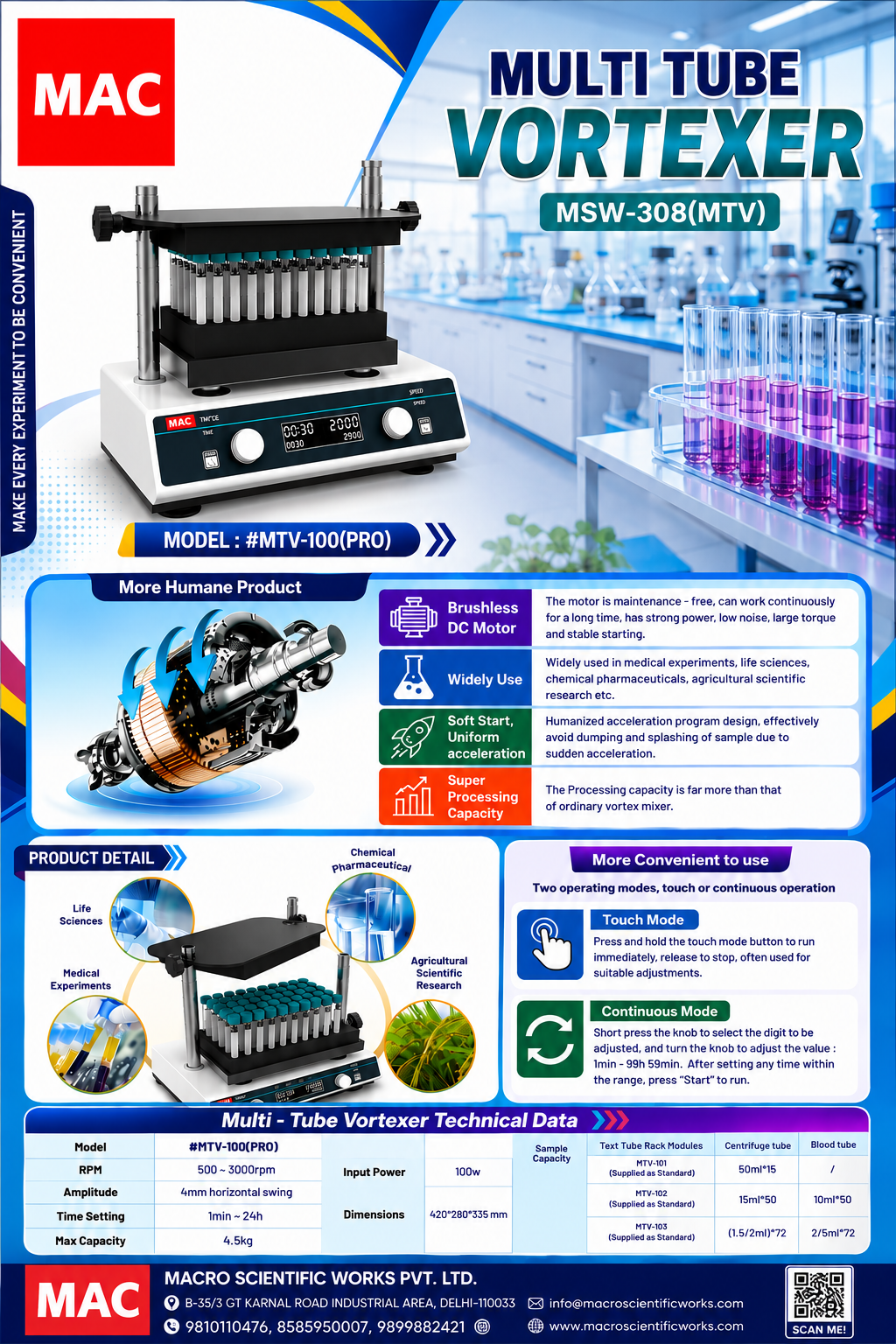

MULTI TUBE VORTEXER "MAC" MSW-308(MTV)
This is a small description
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
Two Operating Modes, Touch or Continuous Operation
- Touch Mode : Press and hold the touch mode button to run immediately release to stop, often used for suitable adjustments.
- Continuous Mode : Short press the knob to select the digital to be adjusted, and turn the knob to adjust the value : 1min-99h 59min. After setting any time within the range press “Start” to run.
- Brushless DC Motor : The motor is maintenance –free, can work continuously for a long time, has strong power, low noise, large torque and stable starting.
- Widely Use : Widely used in medical experiments, life sciences, chemical pharmaceuticals, agricultural scientific research etc.
- Soft Start, Uniform Acceleration : Humanized acceleration program design, effectively avoid dumping and splashing of sample due to sudden acceleration.
- Super Processing Capacity : The processing capacity is far more than that of ordinary vortex mixer.
Technical data
Specifications and models
Model
#MTV-100(PRO)
Speed Range
500 ~ 3000 rpm
Amplitude
4mm Horizontal Swing
Timing / Time
1 min - 24 Hrs.
Max Capacity
4.5 Kg
Input Power
100 W
Dimensions
420 x 280 x 335 mm
| Sample Capacity | Sample Capacity 1 | Sample Capacity 2 | Sample Capacity 3 |
|---|---|---|---|
| Test Tube Rack Modules | MTV-101 (Supplied as Standard) | MTV-102 (Supplied as Standard) | MTV-103 (Supplied as Standard) |
| Centrifuge Tube | 50ml x 15 | 15ml x 50 | 1.5 / 2ml x 72 |
| Blood Tube | / | 10ml x 50 | 2 / 5ml x 72 |
