STIRRER

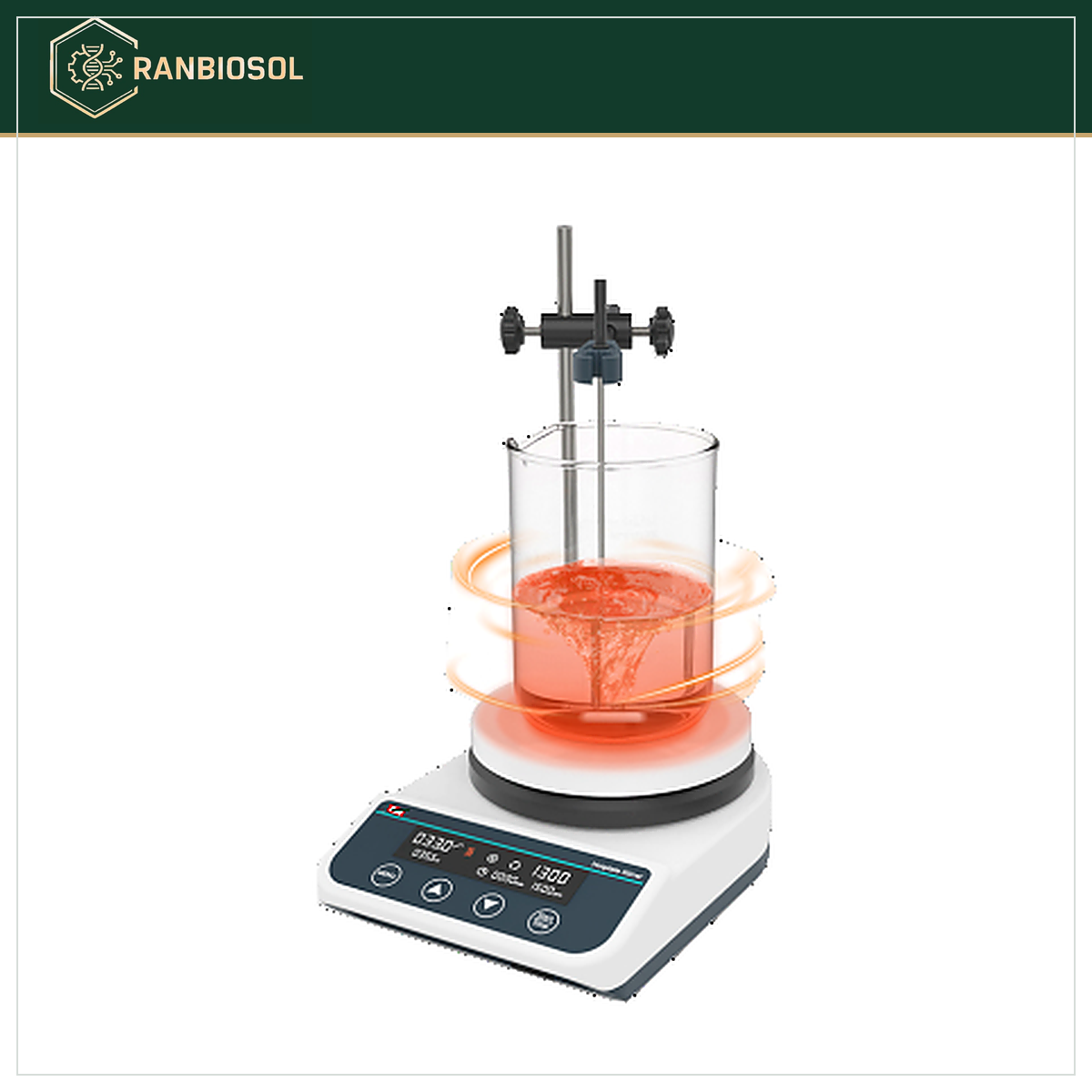

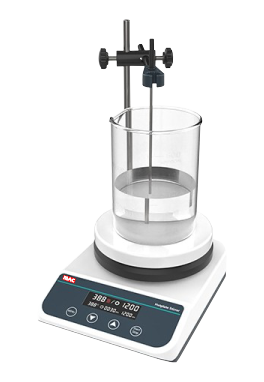

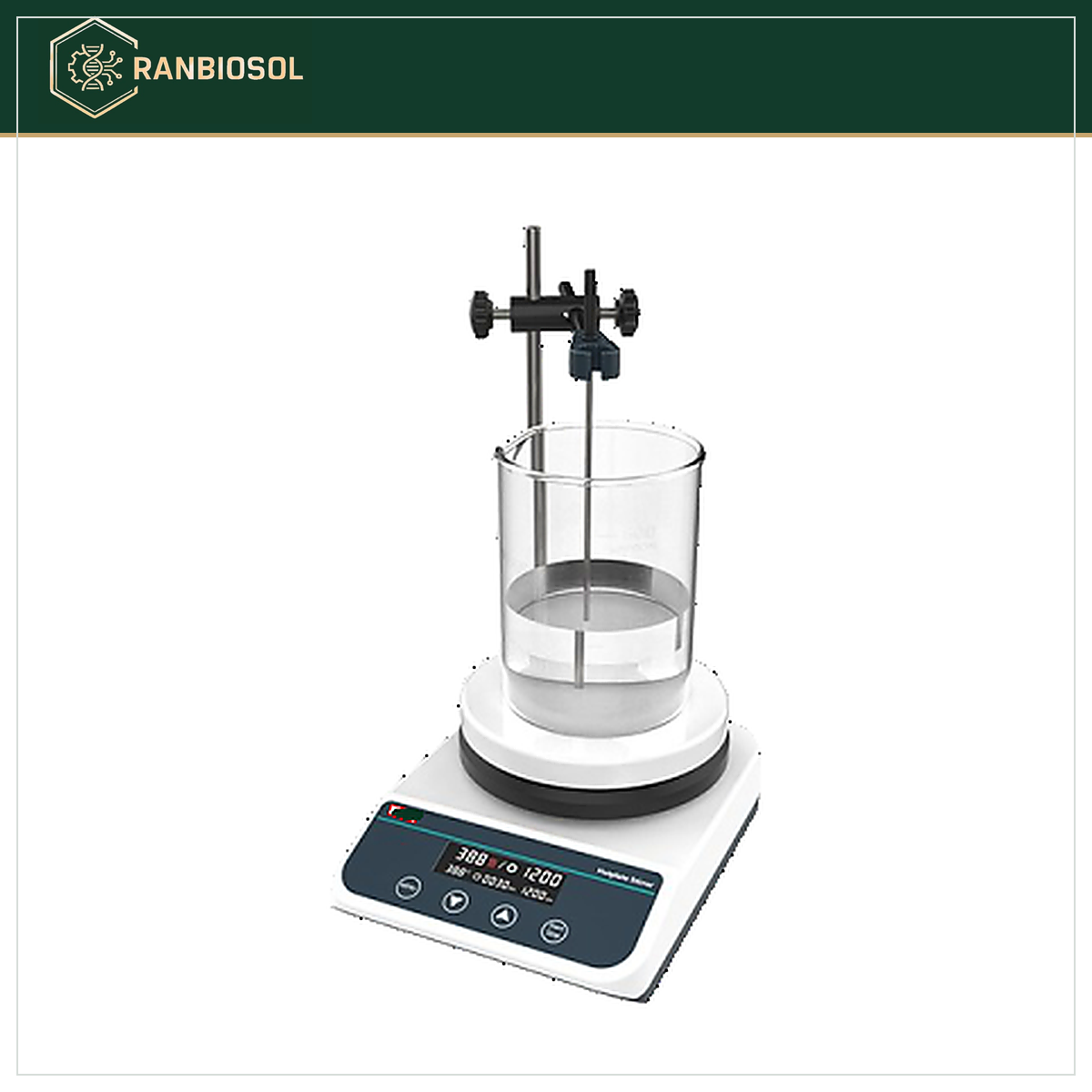

MAGNETIC STIRRER HOTPLATE "MAC" MSW-313(PRO)
This is a small description
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
Description
- Fast Heating-Anti Corrosion Plate : Die-cast aluminum heating plate for rapid heating and precise temperature control. Ceramic coating, corrosion resistance.
- Three-Hole Probe Clamp : Porous design, can hold temperature probe, PH Meter, Acidity Meter, etc.
- Over Temperature Protection : Automatic power off when the safe temperature is exceeded, which is safer.
- Two Temperature Control Mode : Insert temperature probe, display liquid temperature, Remove the temperature probe, display the hot plate temperature.
Options
- External PT-100 sensor and clamping rod for measuring sample temperature
- PTFE coated magnetised stirrering paddle Size (Dia x Length) : 7 x 12 mm
- PTFE coated magnetised stirrering paddle Size (Dia x Length) : 7 x 15 mm
- PTFE coated magnetised stirrering paddle Size (Dia x Length) : 9 x 25 mm
- PTFE coated magnetised stirrering paddle Size (Dia x Length) : 9 x 35 mm
- PTFE coated magnetised stirrering paddle Size (Dia x Length) : 13 x 35 mm
- PTFE coated magnetised stirrering paddle Size (Dia x Length) : 13 x 50 mm
Technical data
Specifications and models
| Model | Motor Type | Speed | Max Stirring Volume | Max Temp. of Hot Plate | Hot Plate | Timing Range | Control Methods | Magnetic Stirring Bar Size | Dimensions | Direction | Temperature Display Accuracy / Increment | Temperature Sensor | Power | Power Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| #MSHP-2M(PRO) | Brushless Motor | 200 – 1500 rpm | 2 L (H₂O) | 310°C | φ135mm SS coating | 1min – 12hrs | Digital Display + Keypad | 50mm linear shape | 225x155x90mm | Anticlockwise | 0.1°C /1°C | PT-1000 / Outside PT-1000 (Optional) | 400 W | AC 220V - 240V |
| #MSHP-5L(PRO) | Brushless Motor | 100 – 1500 rpm | 5 L (H₂O) | 310°C | Square Plate 160x160mm | 1min – 12hrs | Digital Display & Knob & Button | 50mm linear shape | 285x180x90mm | Reversible | 0.1°C /1°C | PT-1000 / Outside PT-1000 (Optional) | 500 W | AC 220V - 240V |
| #MSHP-10H(PRO) | Brushless Motor | 100 – 1500 rpm | 10 L (H₂O) | 550°C | Square Plate 160x160mm | --------- | Digital Display + Knob | 50mm linear shape | 360x215x112mm | Anticlockwise | 0.1°C /1°C | PT-1000 / Outside PT-1000 (Optional) | 900 W | AC 220V - 240V |
| #MSHP-20H(PRO) | Brushless Motor | 100 – 1500 rpm | 20 L (H₂O) | 550°C | Square Plate 184x184mm | --------- | Digital Display + Knob | 50mm linear shape | 360x215x112mm | Anticlockwise | 0.1°C /1°C | PT-1000 / Outside PT-1000 (Optional) | 1000 W | AC 220V - 240V |
