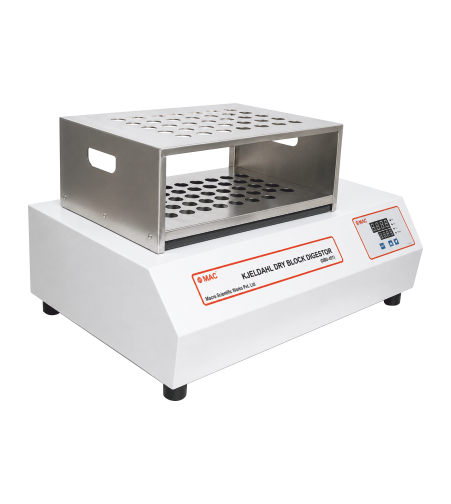

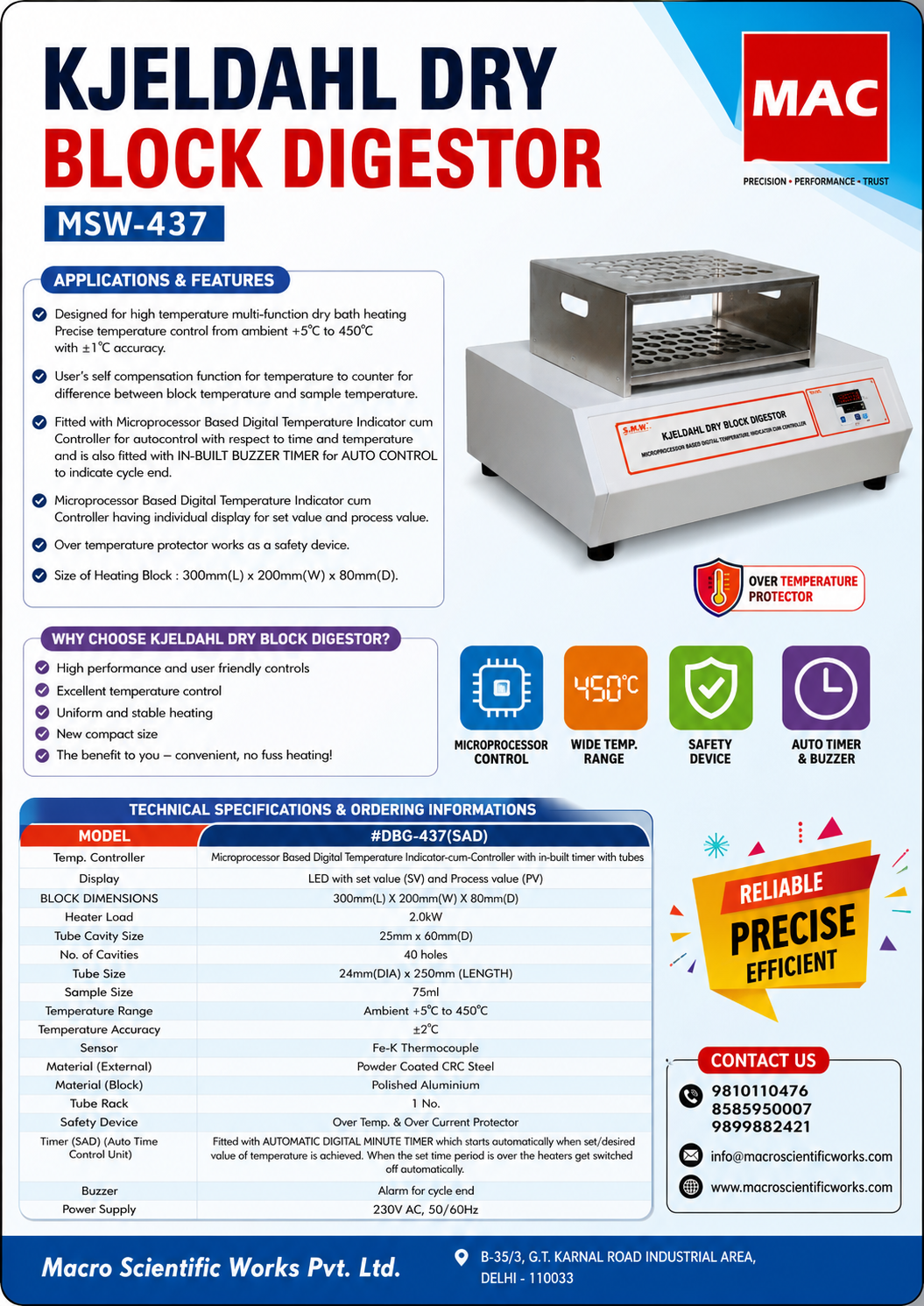

KJELDAHL DRY BLOCK DIGESTOR “MAC” MSW-437
Specially designed for high temperature digestion applications food testing labs in soil test labs and research labs etc. with capacity to accommodate 40 test samples to work upto 450 degree C.
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
FEATURES
- Casted top with room for heating 40 digestion tubes each of size 24 mm (dia) x 250 mm (long).
- Heating elements are spread uniformly in the entire block.
- Temperature range is up to 450˚C.
- Fitted with Microprocessor Based Digital Temperature Controller.
- Also available with an inbuilt timer to control the temperature.
- Supplied with glass parts.
Technical data
Specifications and models
| MODEL | Controller | Display | BLOCK DIMENSIONS | Heater Load | Tube Cavity Size | No. of Cavities | No. of Cavities | Tube Size | Sample Size | Temperature Range | Temperature Accuracy | Sensor | Material (External) | Material (Block) | Tube Rack | Safety Device | Timer (SAD) (Auto Time Control Unit) | Buzzer | Power supply |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| #DBG-437(SAD) | Microprocessor Based Digital Temperature Indicator-cum-Controller with in-built timer with tubes | LED with set value (SV) and Process Value (PV) | 300mm(L) x 200mm(W) x 80mm(D) | 2.0 KW | 25m x 60m(D) | 25m x 60m(D) | 40 holes | 24mm x 250mm (LENGTH) | 75 ml | Ambient +5˚C to 450 ˚C | ±2˚C | Fe-K Thermocouple | Powder Coated CRC Steel | Polished Aluminium | 1 No. | Over Temp. & Over Current Protector | Fitted with AUTOMATIC DIGITAL MINUTE TIMER which starts automatically when set/desired value of temperature is achieved. When the set time period is over the heaters get switched off automatically | Alarm for cycle end | 230V AC, 50/60Hz |
