KJELDAHL DISTILLATION & DIGESTION

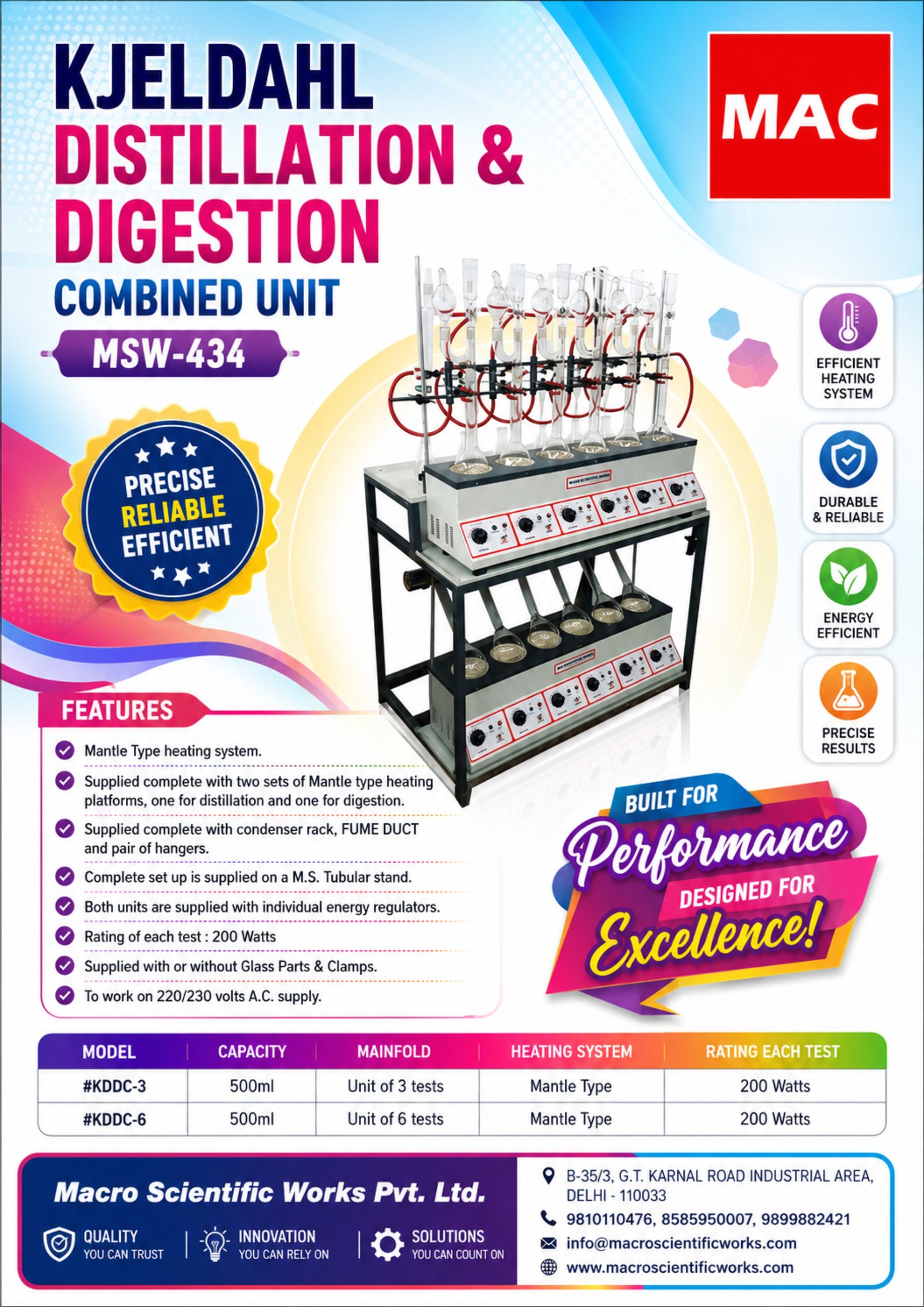

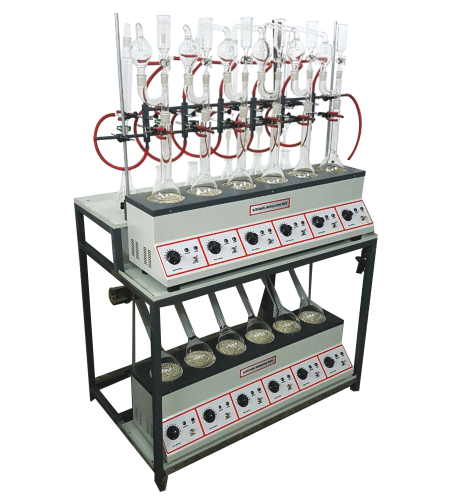

KJELDAHL DISTILLATION & DIGESTION COMBINED UNIT “MAC” MSW-434
Designed to determine protein, nitrogen and ammonia content. Each unit has 3 or 6 heating mantles with individual energy regulators, supporting rods and clamps and a fume duct.
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
FEATURES
- Mantle Type heating system.
- Supplied complete with two sets of Mantle type heating platforms, one for distillation and one for digestion.
- Supplied complete with condenser rack, FUME DUCT and pair of hangers.
- Complete set up is supplied on an M.S. Tubular stand.
- Both units are supplied with individual energy regulators.
- Rating of each test: 200 Watts
- Supplied with or without Glass Parts & Clamps.
- To work on 220/230 volts A.C. supply.
Technical data
Specifications and models
| MODEL | CAPACITY | MANIFOLD | HEATING SYSTEM | RATING EACH TEST |
|---|---|---|---|---|
| #KDDC-3 | 500 ml | Unit of 3 tests | Mantle Type | 200 Watts |
| #KDDC-6 | 500 ml | Unit of 6 tests | Mantle Type | 200 Watts |
