HORIZONTAL AUTOCLAVES

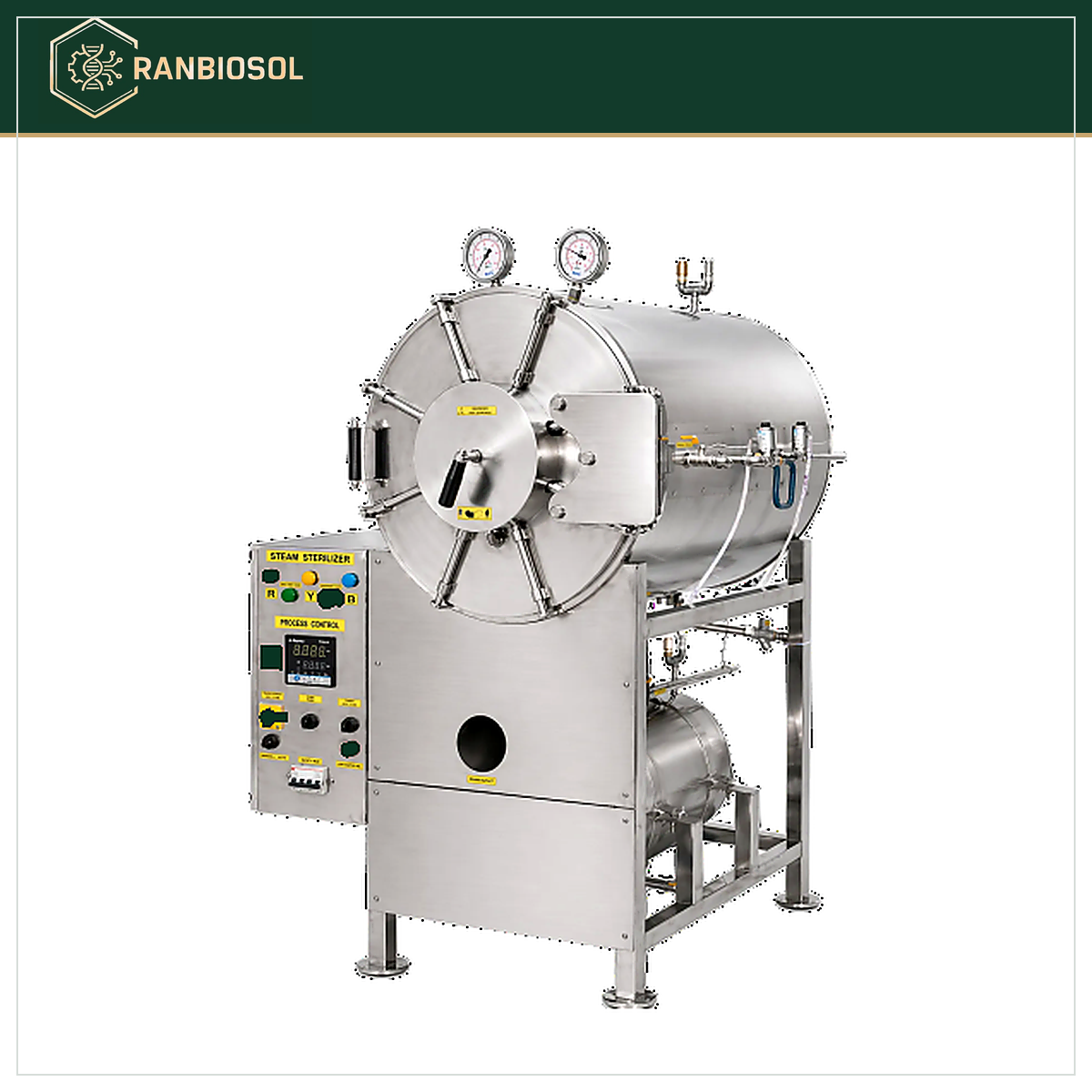

HORIZONTAL CYLINDRICAL H.P. STEAM STERILIZER (SEMI AUTOMATIC DIGITAL MODEL) RBS MSW-104(SAD)
Horizontal Front Loading Cylindrical triple-walled models for high-pressure sterilization.
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
CONSTRUCTIONAL FEATURE
- MOC (Inner Chamber): SS-304
- MOC (Jacket): SS-304
- MOC (Outer Cover): SS-304
- MOC (Door & Ring): SS-304
- Door Type /Locking: Single Radial Type Locking Door
- Door Gasket: Silicon
- MOC (Stand): Heavy duty all SS Frame – 304
- MOC (Control Panel): Heavy duty SS-304
AUTOMATION & CONTROL
- Self-Locking Safety Door: Under pressure and heat resistant SILICON door gasket.
- Water Level Gauge Glass: Show water level with SENSOR
- Safety Valves: Spring loaded valve in jacket for over pressure protection, Weight safety valve in jacket for over pressure protection
- Pressure Switch: For Pressure cut off & low power consumption
- Low Water Cut Off: To protect electric heaters (Safety For Heating Element)
- Earth Safety System: For safety of operator and machine (Safety For Human Life)
- Steam Deflector: For better vacuum and dryness
- Air Vent / Steam Trap: Moisture trap
- Pressure Gauge: To indicate steam pressure of jacket
- Compound Gauge: To indicate chamber steam pressure and vacuum
- Alarm System: Process completion buzzer system
- Display: Steam pressure/ temp.
- Insulation: High heat proof miniral wool
- Working Cycle: 1 - Standard Speed Working Pressure (121°C) 2- High Speed Working Pressure (134°C) (1.2 kg) to (2.5 kg)
- Operating System (For Manual): Multiport Valve (Pre Vacuum, Sterilizer, Fast Exhaust, Vacuum)
- Additional Accessories: Water Level Gauge Glass
- Working Temperature: 121°C / 134°C
- Working Pressure: 25 Lbs To 32 Lbs
Option
- Automatic water feed system can be incorporated in the boiler, so that at higher level it switched off the water pump and restart it at lower level automatically.
- Vacuum pulsing through a closed coupled water ring high vacuum pump for creating forced vacuum and fast drying process.
- TFT Touch Screen Display Controller in lieu of LED /LCD Controller.
- Printer Port (Dot Matrix) with data logger and USB Port for taking data (Paperless Data Recording) and Saving ON PC. (Dot Matrix Printer to customer scope)
- Double Door to cost extra.
Technical data
Specifications and models
| Specification | SEMI AUTOMATIC DIGITAL MODEL | ||||||
|---|---|---|---|---|---|---|---|
| MODEL | #RBS HCSS-88(D) | #RBS HCSS-100(D) | #RBS HCSS-135(D) | #RBS HCSS-165(D) | #RBS HCSS-200(D) | #RBS HCSS-250(D) | #RBS HCSS-300(D) |
| Capacity | 88 ltrs | 100 ltrs | 135 ltrs | 165 ltrs | 200 ltrs | 250 ltrs | 300 ltrs |
| Heater Load | 9.0 KW | 9.0 KW | 9.0 KW | 9.0 KW | 9.0 KW | 12.0 KW | 12.0 KW |
| Controller | Semi Automatic Digital Temperature Indicator-cum-Controller | ||||||
| Display | Digital LED display with set value (SV) and process value (PV) | ||||||
| Timer (Auto Time Control) & Buzzer | Fitted with AUTOMATIC DIGITAL MINUTE TIMER which starts automatically when set/desired value of temperature is achieved. When the set time period is over the heaters get switched off automatically | ||||||
| Power Supply | 440V AC, 3 Phase Supply | ||||||
