HORIZONTAL AUTOCLAVES

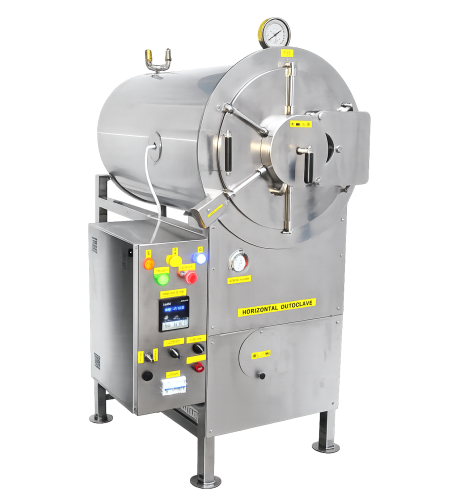

HORIZONTAL CYLINDRICAL AUTOCLAVE (DOUBLE WALLED – FULLY AUTOMATIC DIGITAL) “MAC” MSW-103(FAD)
This is a small description
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
Features
- MAC Horizontal Double Walled Autoclaves are most ideal for critical applications requiring assured and reliable total destruction of all living micro-organisms.
- An ideal tool for Laboratories, hospitals, nursing homes, R & D labs etc.
- Double walled unit horizontally mounted on a sturdy, heavy M.S. duly painted.
- Both inner chamber and outer wall made of S.S.
- Pressure is adjustable from 10-20 psi.
- Fitted with pressure gauge, safety valve and steam release valve.
- Available with separate boiler.
- For units fitted with S.S. Boiler, separate valves for injecting the steam into the main chamber and releasing the steam in atmosphere after use are provided.
- Automatic vacuum breaker is provided to break the vacuum in case of formation of vacuum due to steam condensation.
- Automatic Low Water Level Cut-Off Device fitted for general safety of the element.
- Lid is made of thick machined stainless steel plate.
- Solenoid Valve for automatic purging and exhaust (user settable).
- Supplied without jacket (Double walled chamber but with separate boiler).
- Industrial grade energy efficient heaters reduce power bills drastically.
Option
- Automatic water feed system can be incorporated in the boiler, so that at higher level it switched off the water pump and restart it at lower level automatically.
- Vacuum pulsing through a closed coupled water ring high vacuum pump for creating forced vacuum and fast drying process.
- TFT Touch Screen Display Controller in lieu of LED /LCD Controller.
- Printer Port (Dot Matrix) with data logger and USB Port for taking data (Paperless Data Recording) and Saving ON PC. (Dot Matrix Printer to customer scope)
- Double Door to cost extra.
Technical data
Specifications and models
| Model | Capacity | Heater Load |
|---|---|---|
| #HCA-88(FAD) | 88 ltrs | 9.0 KW |
| #HCA-100(FAD) | 100 ltrs | 9.0 KW |
| #HCA-135(FAD) | 135 ltrs | 9.0 KW |
| #HCA-165(FAD) | 165 ltrs | 9.0 KW |
| #HCA-200(FAD) | 200 ltrs | 9.0 KW |
| #HCA-250(FAD) | 250 ltrs | 12.0 KW |
| #HCA-300(FAD) | 300 ltrs | 12.0 KW |
Controller
Microprocessor based Fully Automatic Fuzzy Logic Control system with timer buzzer (AUTO TIME CONTROL). It is fitted with low water cut-off for general safety of heating element. Available with automatic purging facility and exhaust valve. With scaled Digital Pressure Indicator displayed directly on the main control panel
Display
A separate temperature indicator is provided
Exhaust of Pressure
Automatic through a manual exhaust valve
Gasket
Made of Jointless Silicon Rubber
Sterilizing Pressure
1.2 kgf /cm² (15 psi) at 121°C
Operating Pressure
From 15 Psi to 20 psi
Pressure Gauge
0-2.1 kgf /cm² (30 psi)
MOC (Pressure Vessel)
Stainless Steel (SS-304)
MOC (Boiler)
Stainless Steel (SS-304)
MOC (External Wall)
Stainless Steel (SS-304)
MOC (Lid)
Made of thick machined Stainless Steel plate
Tubular Stand and Support Ring
Made of mild steel
Power supply
220/230V AC, 50/60Hz or 430/440 Volts, 3 Phase Supply
