FUMIGATION CHAMBER

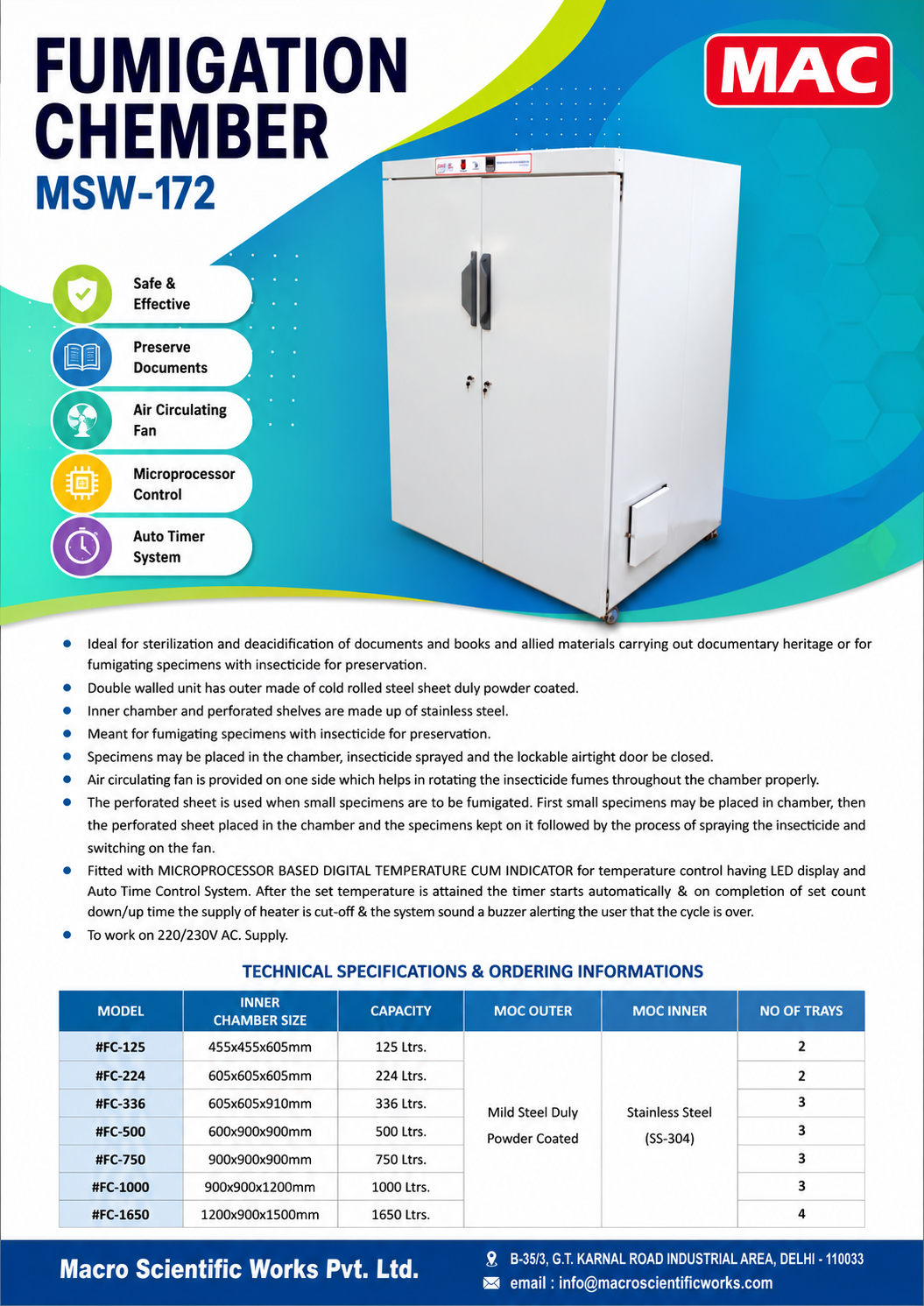

FUMIGATION CHAMBER MSW-172

Name: FUMIGATION CHAMBER MSW-172
SKU: MSW-172

This is a small description

Product details

Features and construction

Ideal for sterilization and deacidification of documents and books and allied materials carrying out documentary heritage or for fumigating specimens with insecticide for preservation.
Double walled unit has outer made of cold rolled steel sheet duly powder coated.
Inner chamber and perforated shelves are made up of stainless steel.
Meant for fumigating specimens with insecticide for preservation.
Specimens may be placed in the chamber, insecticide sprayed and the lockable airtight door be closed.
Air circulating fan is provided on one side which helps in rotating the insecticide fumes throughout the chamber properly.
The perforated sheet is used when small specimens are to be fumigated. First small specimens may be placed in chamber, then the perforated sheet placed in the chamber and the specimens kept on it followed by the process of spraying the insecticide and switching on the fan.
Fitted with MICROPROCESSOR BASED DIGITAL TEMPERATURE CUM INDICATOR for temperature control having LED display and Auto Time Control System. After the set temperature is attained the timer starts automatically & on completion of set count down/up time the supply of heater is cut-off & the system sound a buzzer alerting the user that the cycle is over.
To work on 220/230V AC. Supply.

Technical data

Model	Inner Chamber Size (mm)	Capacity	No. of Trays
#FC-125	455x455x605	125 Ltrs.	2
#FC -224	605x605x605	224 Ltrs.	2
#FC -336	605x605x910	336 Ltrs.	3
#FC-500	600x900x900	500 Ltrs.	3
#FC-750	900x900x900	750 Ltrs.	3
#FC-1000	900x900x1200	1000 Ltrs.	3
#FC-1650	1200x900x1500	1650 Ltrs.	4
