ROTARY MICROTOME

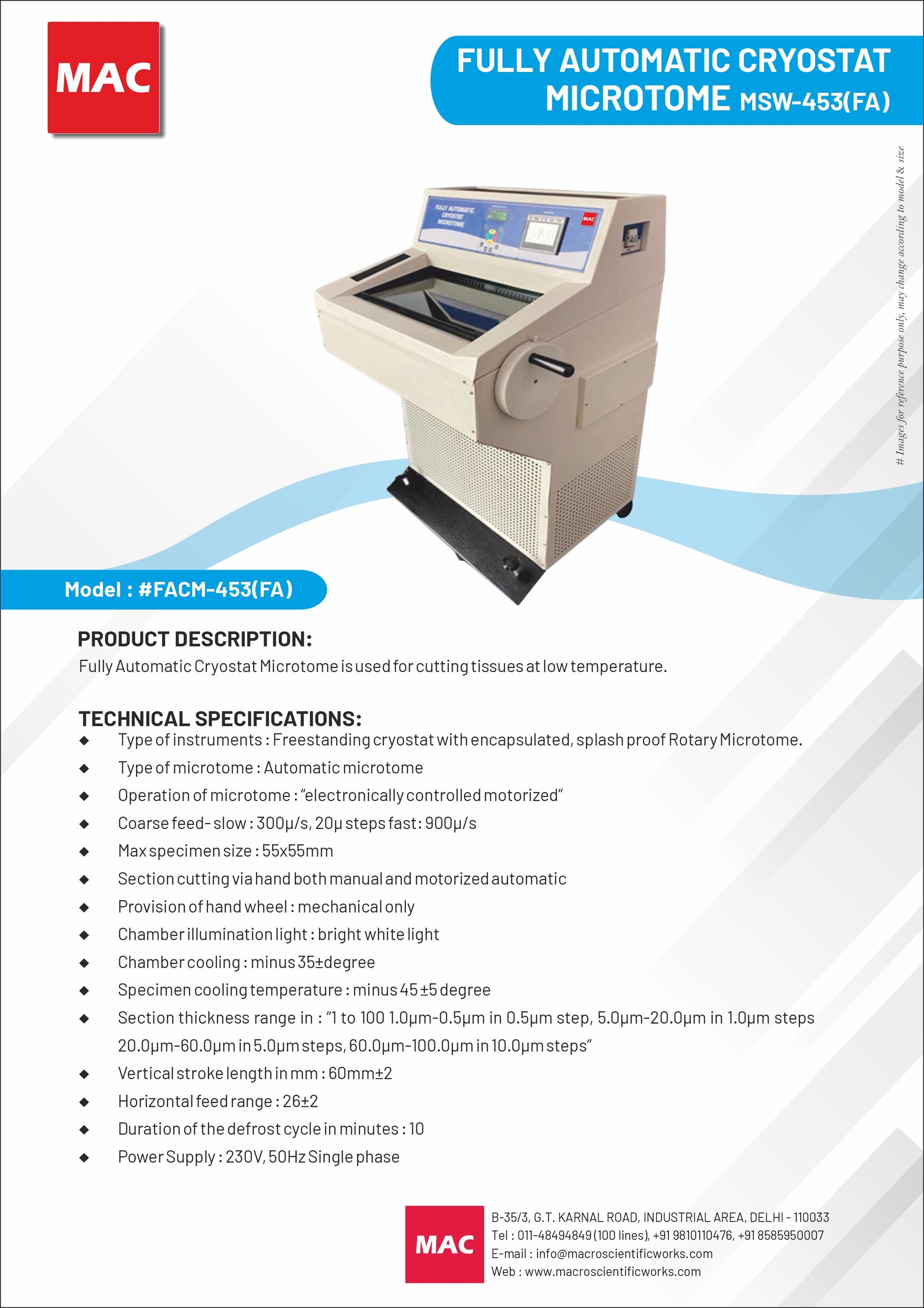

FULLY AUTOMATIC CRYOSTAT MICROTOME “MAC” MSW-453(FA)
This is a small description
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
Product Description
- Fully automatic cryostat microtome is used for cutting Tissues at Low Temperature.
Technical Specifications
- Type of instruments : Free standing cryostat with encapsulated, splash proof Rotary Microtome.
- Type of microtome : Automatic microtome
- Operation of microtome : “electronically controlled motorized”
- Coarse feed- slow :300μ/s, 20μ steps fast: 900μ/s
- Max specimen size : 55x55mm
- Section cutting via hand both manual and motorized automatic
- Provision of hand wheel : mechanical only
- Chamber illumination light : bright white light
- Chamber cooling : minus 35±degree
- Specimen cooling temperature : minus 45±5 degree
- Section thickness range in : “1 to 100 1.0μm-0.5μm in 0.5μm step, 5.0μm-20.0μm in 1.0μm steps 20.0μm-60.0μm in 5.0μm steps, 60.0μm-100.0μm in 10.0μm steps”
- Vertical stroke length in mm : 60mm±2
- Horizontal feed range : 26±2
- Duration of the defrost cycle in minutes : 10
- Power Supply : 230V, 50Hz Single phase.
Technical data
Specifications and models
| Model | Type |
|---|---|
| #FACM-453(FA) | Fully Automatic |
