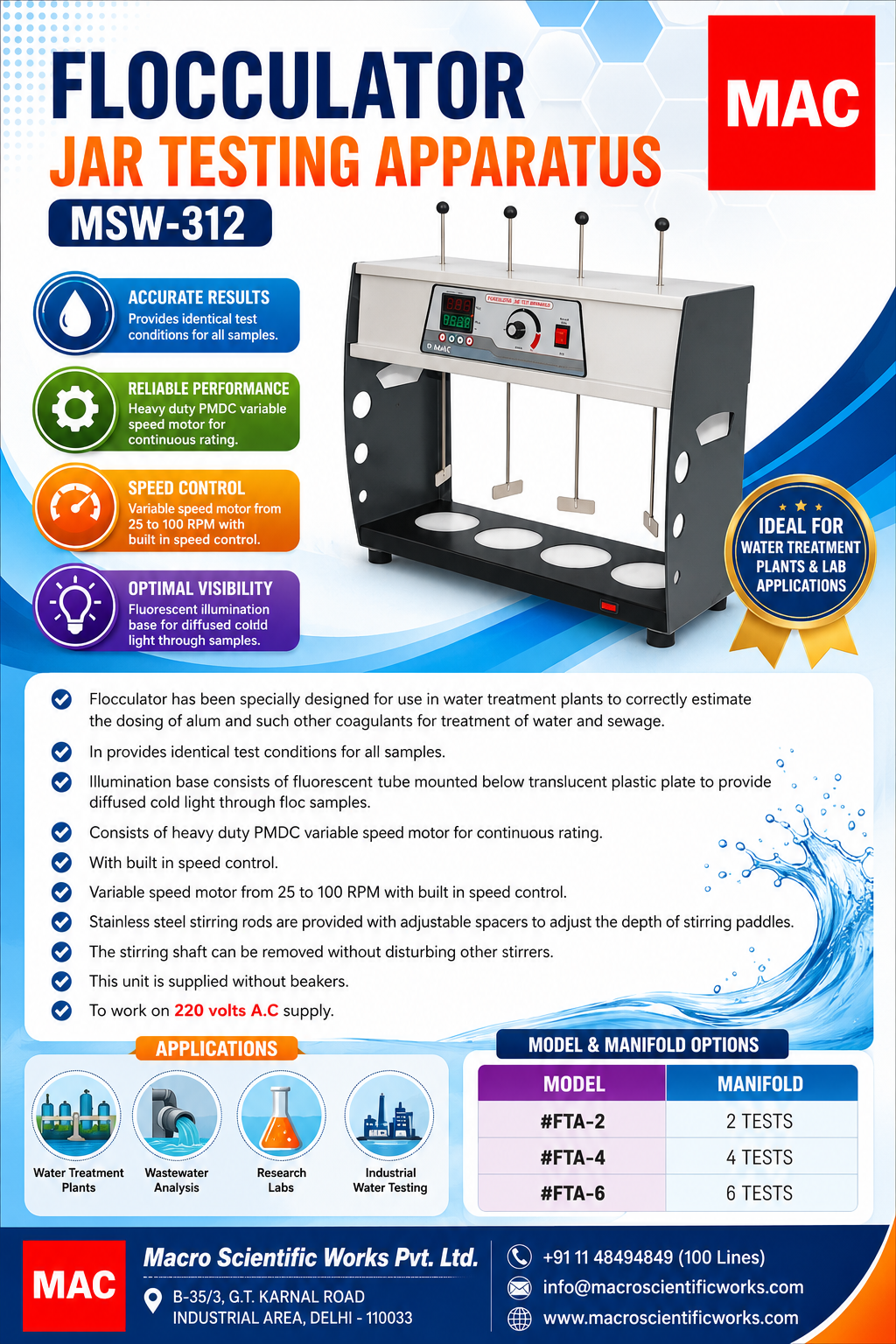

FLOCCULATOR - JAR TESTING APPARATUS (MULTI-SPINDLE STIRRER) “MAC” MSW-312
This is a small description
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
| FEATURES |
|---|
| Flocculator has been specially designed for use in water treatment plants to correctly estimate the dosing of alum and such other coagulants for treatment of water and sewage. |
| In provides identical test conditions for all samples. |
| Illumination base consists of fluorescent tube mounted below translucent plastic plate to provide diffused cold light through floc samples. |
| Consists of heavy duty PMDC variable speed motor for continuous rating |
| With built in speed control. |
| Variable speed motor from 25 to 100 RPM with built in speed control. |
| Stainless steel stirring rods are provided with adjustable spacers to adjust the depth of stirring paddles. |
| The stirring shaft can be removed without disturbing other stirrers. |
| This unit is supplied without beakers. |
| To work on 220 volts A.C supply |
OPTIONS
- Coagulant dispenser for feeding does to all stirring units simultaneously.
Technical data
Specifications and models
| MODEL | CAPACITY |
|---|---|
| #FTA-2 | 2 Tests |
| #FTA-4 | 4 Tests |
| #FTA-6 | 6 Tests |
