ENVIRONMENTAL CHAMBER

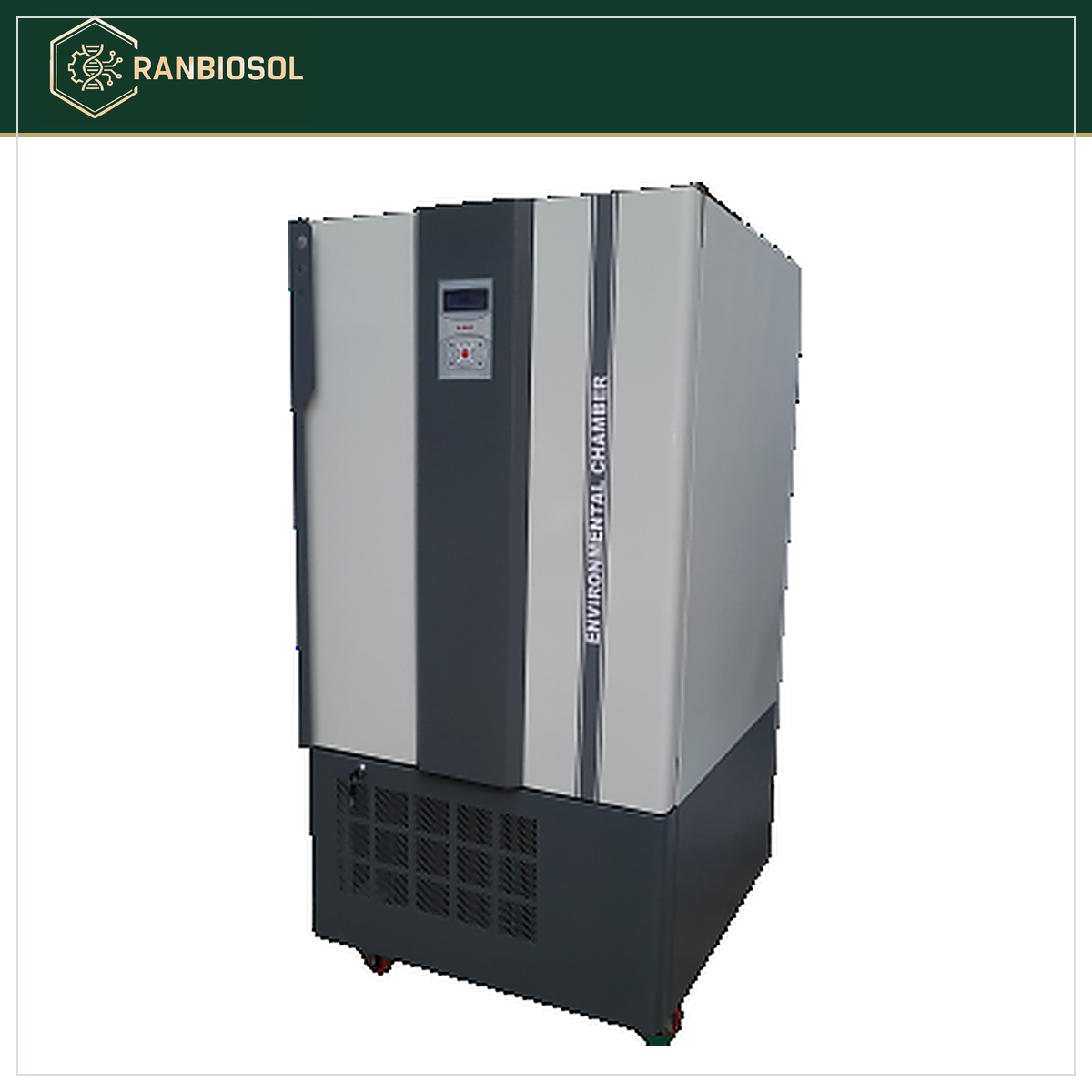

ENVIRONMENTAL CHAMBER (COOLED STABILITY CHAMBER) MSW-127(PRO)
This is a small description
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
Description
- Suitable for carrying out different quality control tests under controlled conditions of temperature and humidity.
- The excellent quality of magnetic gum packing for the external door.
- User oriented design of shelves makes you adjust each space of shelves without difficulty.
- Inner chamber is made of stainless steel (S.S.-304 Grade) and outer wall made of CRC sheet duly powder coated.
- High grade Polyurethane Foam (PUF) insulation between outer and inner chamber for minimal thermal loss.
- Front double walled door is provided with lock and key arrangement.
- A self-cooled air circulation fan is fitted to maintain uniform temperature and humidity condition throughout the chamber.
- Humidity is created through steam generation tank.
- Provided with refrigeration system to control temperature range from 10°C to 60°C ±1°C and humidity 5% above ambient from 40% to 95% RH ±3% RH at Cool Temperature.
- CFC free friendly compressor.
TECHNICAL SPECIFICATIONS
- Type : Forced Convection Type
- Temperature Range : 10°C to 60°C
- Temperature Accuracy : ±1°C (at 37°C)
- Humidity Range : 5% above ambient from 40% to 95%RH at cool temperatures.
- Humidity Accuracy : ±3%RH
- Temperature Controller : Microprocessor Based Digital Temperature Indicator-Cum-Controller with LCD Display OR HMI - PLC Based TFT Touch Screen Colour Display Controller
- Humidity Controller : Digital Temperature Humidity Indicator-Cum-Controller.
- Electrical Supply : 220/230V AC, 50/60Hz.
options
- Interior illumination arrangement with a cyclic timer to control cyclic illumination conditions.
Technical data
Specifications and models
MICROPROCESSOR DIGITAL CONTROLLER WITH LCD DISPLAY
| Model | #EC-4(LCD) | #EC-6(LCD) | #EC-10(LCD) | #EC-12(LCD) | #EC-16(LCD) | #EC-20(LCD) | #EC-28(LCD) | #EC-35(LCD) |
|---|---|---|---|---|---|---|---|---|
| Display Type | LCD | LCD | LCD | LCD | LCD | LCD | LCD | LCD |
| Capacity | 112 ltrs. | 171 ltrs. | 285 ltrs. | 340 ltrs. | 450 ltrs. | 560 ltrs. | 800 ltrs. | 1000 ltrs. |
| Volume | 4.0 Cuft | 6.1 Cuft | 10.0 Cuft | 12.0 Cuft | 16.0 Cuft | 20.0 Cuft | 28.0 Cuft | 35.0 Cuft |
| No of shelves | 2 | 2 | 3 | 3 | 4 | 4 | 6 | 6 |
TFT TOUCH SCREEN DISPLAY CONTROLLER
| Model | #EC-4(TFT) | #EC-6(TFT) | #EC-10(TFT) | #EC-12(TFT) | #EC-16(TFT) | #EC-20(TFT) | #EC-28(TFT) | #EC-35(TFT) |
|---|---|---|---|---|---|---|---|---|
| Display Type | TFT | TFT | TFT | TFT | TFT | TFT | TFT | TFT |
| Capacity | 112 ltrs. | 171 ltrs. | 285 ltrs. | 340 ltrs. | 450 ltrs. | 560 ltrs. | 800 ltrs. | 1000 ltrs. |
| Volume | 4.0 Cuft | 6.1 Cuft | 10.0 Cuft | 12.0 Cuft | 16.0 Cuft | 20.0 Cuft | 28.0 Cuft | 35.0 Cuft |
| No of shelves | 2 | 2 | 3 | 3 | 4 | 4 | 6 | 6 |
