DRY BATH INCUBATOR "MAC"
DRY BATH INCUBATOR "MAC"

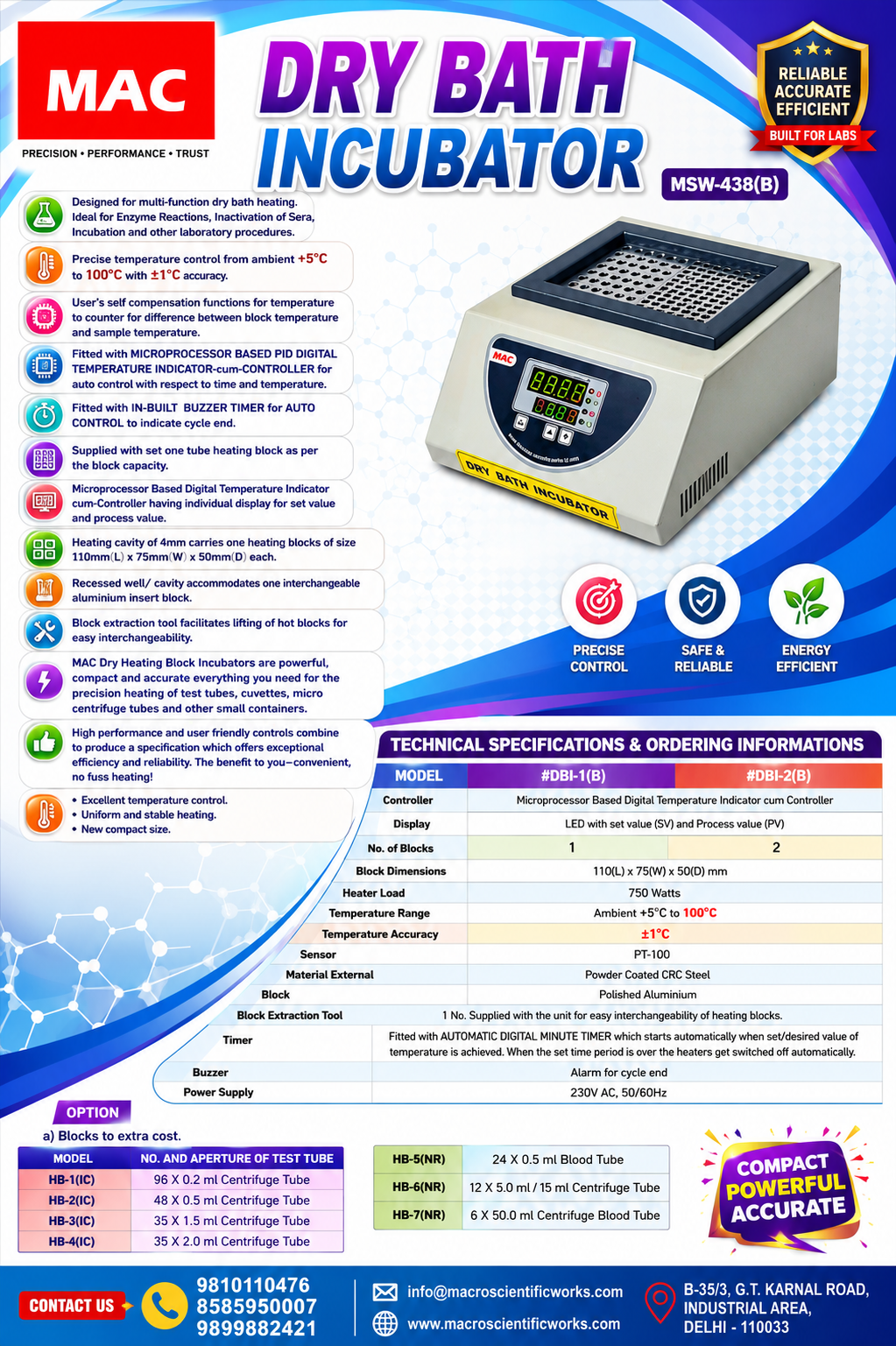

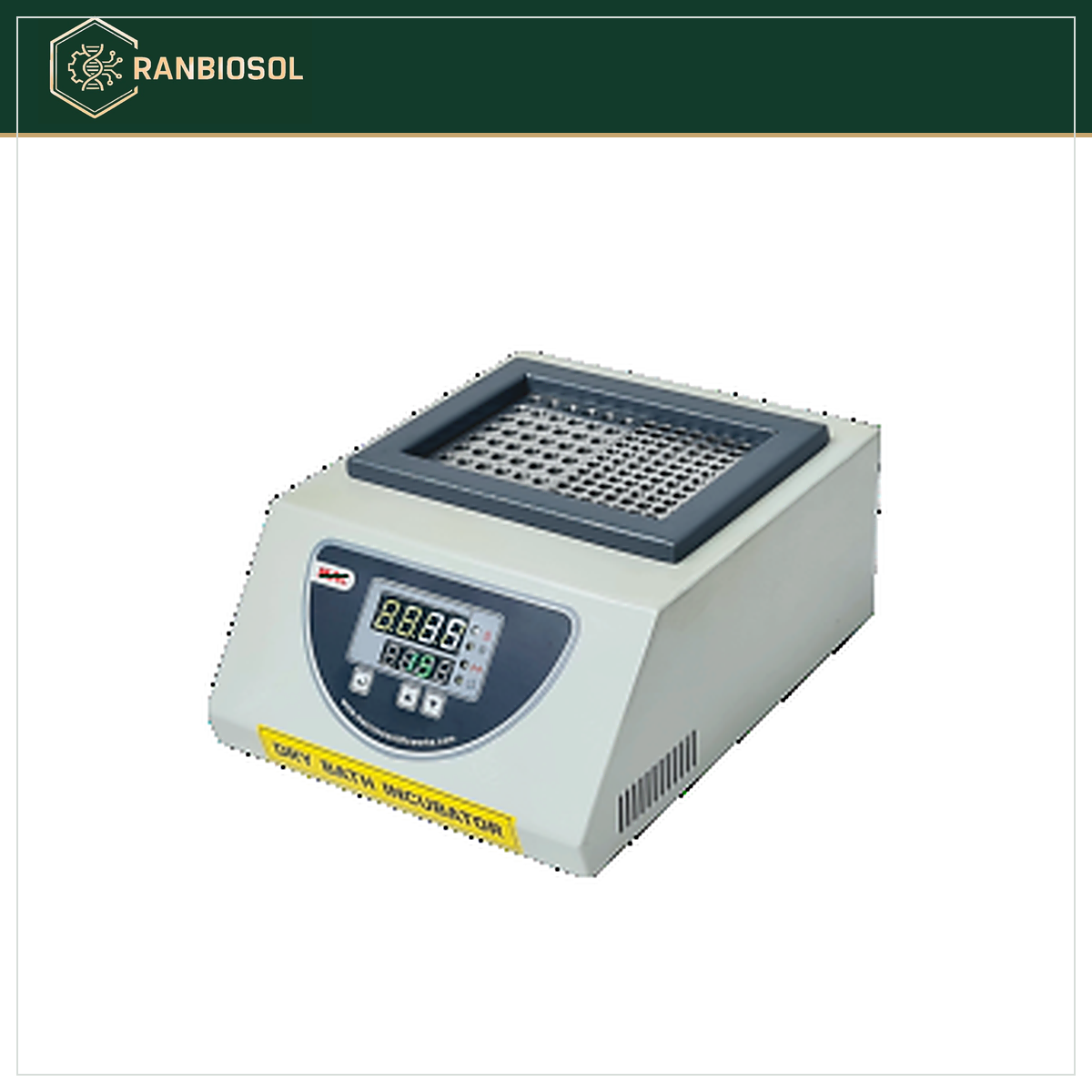

DRY BATH INCUBATOR (HEATING BLOCK INCUBATOR) “MAC” MSW-438(B)
This is a small description
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
Description
- Designed for multi-function dry bath heating.
- Ideal for Enzyme Reactions, Inactivation of Sera, Incubation and other laboratory procedures.
- Precise temperature control from ambient +50C to 1000C with +10C accuracy.
- User’s self compensation functions for temperature to counter for difference between block temperature and sample temperature.
- Fitted with MICROPROCESSOR BASED PID DIGITIAL TEMPERATURE INDICATOR-cum-CONTROLLER for auto control with respect to time and temperature and is also fitted with IN-BUILT BUZER TIMER for AUTO CONTROL to indicate cycle end.
- Supplied with set one tube heating block as per the block capacity.
- Microprocessor Based Digital Temperature Indicator cum-Controller having individual display for set value and process value.
- Heating cavity of 49mm carries one heating blocks of size 110mm (L) x 75mm (W) x 50mm (D) each.
- Recessed well/ cavity accommodates one interchangeable aluminium insert block.
- Block extraction tool facilitates lifting of hot blocks for easy interchangeability.
- MAC Dry Heating Block Incubators are powerful, compact and accurate everything you need for the precision heating of test tubes, cuvettes, micro centrifuge tubes and other small containers.
- High performance and user friendly controls combine to produce a specification which offers exceptional efficiency and reliability. The benefit to you-convenient, no fuss heating!
- Excellent temperature control.
- Uniform and stable heating.
- New compact size.
Options
- Blocks to cost extra {#DBI-1(B) & #DBI-2(B)}.
- HB-1(IC) : 96 X 0.2 ml Centrifuge Tube
- HB-2(IC) : 54 X 0.5 ml Centrifuge Tube
- HB-3(IC) : 35 X 1.5 ml Centrifuge Tube
- HB-4(IC) : 5 X 2.0 ml Centrifuge Tube
- HB-5(NR) : 24 X 5.0 ml Blood Tube
- HB-6(NR) : 12 X 5.0/15.0 ml Centrifuge Tube
- HB-7(NR) : 50 X 6.0 ml Centrifuge Blood Tube
Technical data
Specifications and models
| Model |
|---|
| #DBI-1(B) |
| #DBI-2(B) |
Controller
Microprocessor Based Digital Temperature Indicator cum-Controller with in-built timer
Display
LED with set value (SV) and Process Value (PV)
Block Dimension (LxWxD)
110mm (L) x 75mm (W) x 50mm (D)
| No. of Blocks |
|---|
| 1 |
| 2 |
Heater Load
750 Watts
Temperature Range
Ambient +5°C to 100°C
Temperature Accuracy
±1°C
Sensor
PT-100
Material External
Powder Coated CRC Steel
Block
Polished Aluminium
Block Extraction Tool
1 No. Supplied with the unit for easy interchangeability of heating blocks
Timer (SAD)
Fitted with AUTOMATIC DIGITAL MINUTE TIMER which starts automatically when set/desired value of temperature is achieved. When the set time period is over the heaters get switched off automatically
Buzzer
Alarm for cycle end
Power Supply
230V AC, 50/60 Hz
