FREEZERS

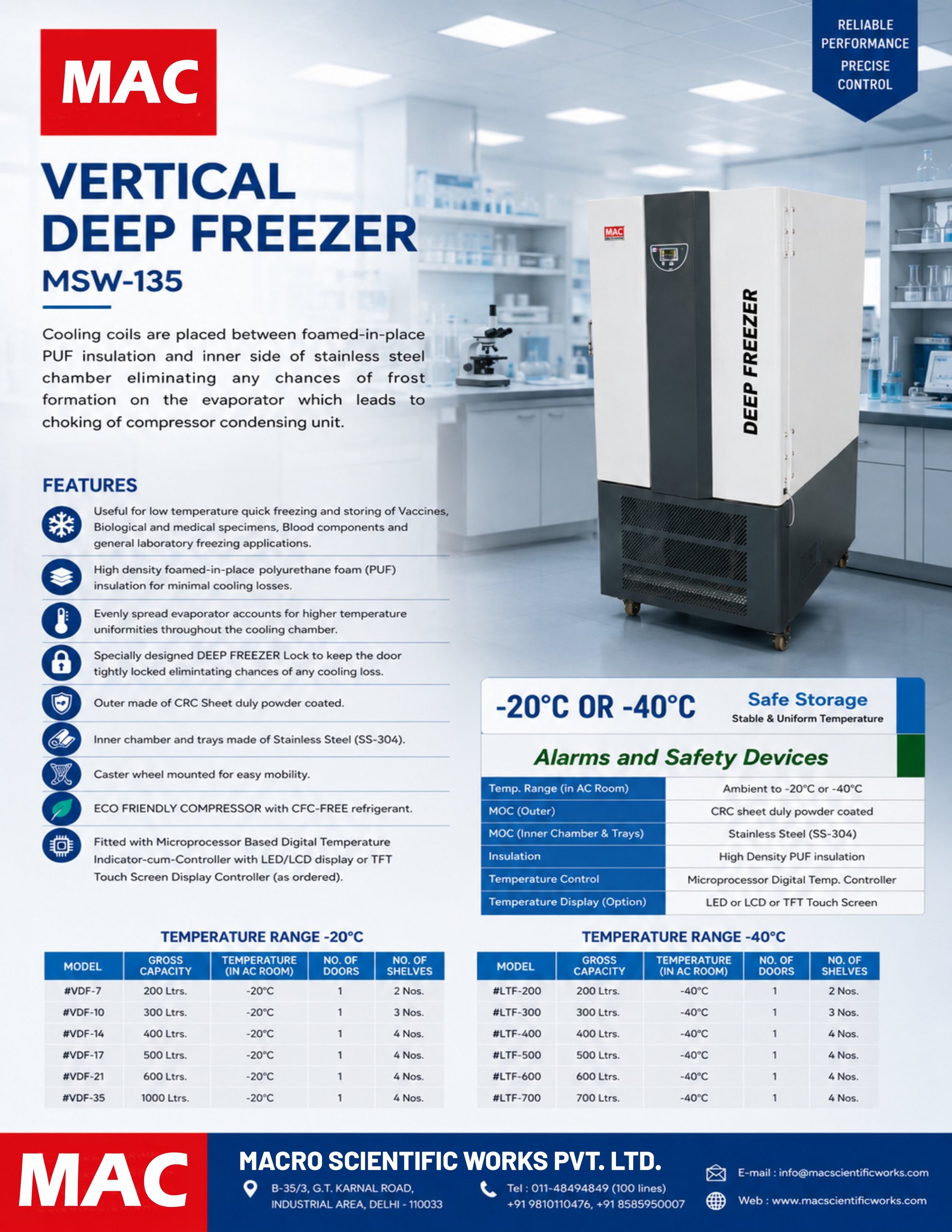

DEEP FREEZER VERTICAL "MAC" MSW-135(V)
This is a small description
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
Description
- Cooling coils are placed between foamed-in-place PUF insulation and inner side of stainless steel chamber eliminating any chances of FROST FORMATION on the evaporator which leads to choking of COMPRESSOR/ CONDENSING UNIT.
APPLICATIONS & KEY FEATURES
- Useful for low temperature quick freezing and storing of Vaccines, Biological and medical specimens, Blood Components and general laboratory freezing applications.
- High density foamed-in-place polyurethane foam (PUF) insulation for minimal cooling losses.
- Evenly spread evaporator accounts for higher temperature uniformities throughout the cooling chamber.
- Specially designed DEEP FREEZER VERTICAL LATCHES to keep the door tightly locked eliminating chances of any cooling loss.
- Outer made of CRC steel sheet duly powder coated.
- Inner chamber made of plastic moulded liner /stainless steel (SS-304).
- Caster wheel mounted for easy mobility.
- ECO FRIENDLY COMPRESSOR with CFC-FREE refrigerant.
- Fitted with Microprocessor Based Digital Temperature Indicator-cum-Controller
TECHNICAL SPECIFICATIONS & ORDERING INFORMATIONS
- Temperature range (in AC Room) : Ambient to -20°C OR -40°C (as ordered)
- MOC Outer : CRC steel sheet duly powder coated
- MOC Inner : Chamber made of plastic moulded liner /stainless steel (SS-304)
- Insulation: High Density PUF insulation for tighter temperature controls
- Temperature Control : Microprocessor based Digital Temperature Indicator-cum-controller with LED/LCD display OR TFT Touch Screen Display Controller (as ordered)
- Display : Digital LED / LCD Set value (SV) & Process value (PV) OR TFT Color Display (as ordered)
Technical data
Specifications and models
DEEP FREEZER VERTICAL TEMPERATURE RANGE UPTO – 20°C
| Model | #VDF-7 | #VDF-10 | #VDF-14 | #VDF-17 | #VDF-21 | #VDF-35 |
|---|---|---|---|---|---|---|
| TEMPERATURE (IN AC ROOM) | – 20°C | – 20°C | – 20°C | – 20°C | – 20°C | – 20°C |
| GROSS CHAMBER CAPACITY | 200 ltrs | 300 ltrs | 400 ltrs | 500 ltrs | 600 ltrs | 1000 ltrs |
| MOC INNER / OUTER | S.S. / CRC Powder Coated | S.S. / CRC Powder Coated | S.S. / CRC Powder Coated | S.S. / CRC Powder Coated | S.S. / CRC Powder Coated | S.S. / CRC Powder Coated |
| NO. OF SHELVES | 2 Nos. | 3 Nos. | 4 Nos. | 4 Nos. | 4 Nos. | 4 Nos. |
| NO. OF DOORS | 1 | 1 | 1 | 1 | 1 | 1 |
DEEP FREEZER VERTICAL TEMPERATURE RANGE UPTO – 40°C
| Model | #LTF-200 | #LTF-300 | #LTF-400 | #LTF-500 | #LTF-600 | #LTF-700 |
|---|---|---|---|---|---|---|
| TEMPERATURE (IN AC ROOM) | – 40°C | – 40°C | – 40°C | – 40°C | – 40°C | – 40°C |
| GROSS CHAMBER CAPACITY | 200 ltrs | 300 ltrs | 400 ltrs | 500 ltrs | 600 ltrs | 700 ltrs |
| MOC INNER / OUTER | S.S. / CRC Powder Coated | S.S. / CRC Powder Coated | S.S. / CRC Powder Coated | S.S. / CRC Powder Coated | S.S. / CRC Powder Coated | S.S. / CRC Powder Coated |
| NO. OF SHELVES | 2 Nos. | 3 Nos. | 4 Nos. | 4 Nos. | 4 Nos. | 4 Nos. |
| NO. OF DOORS | 1 | 1 | 1 | 1 | 1 | 1 |
