ORBITAL SHAKING INCUBATORS

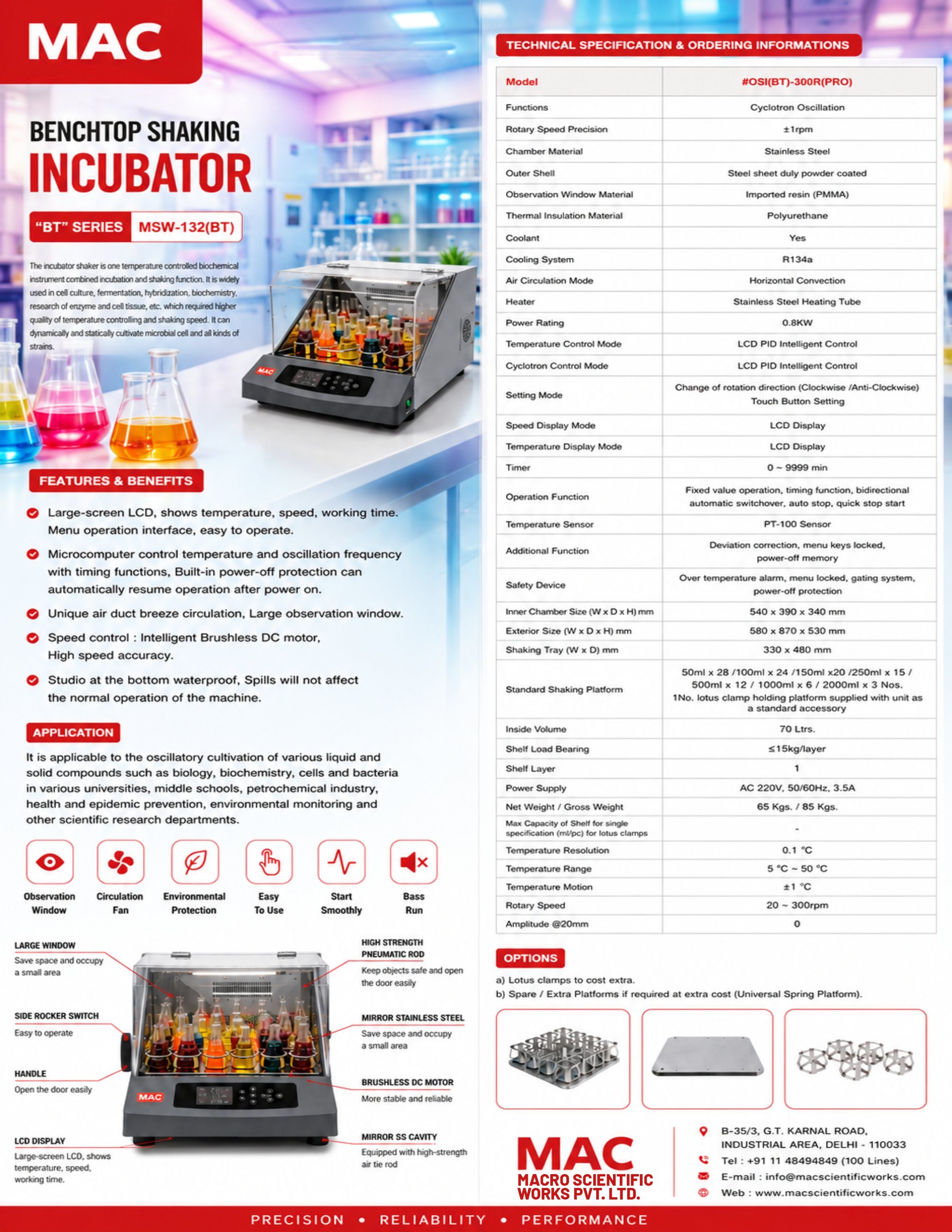

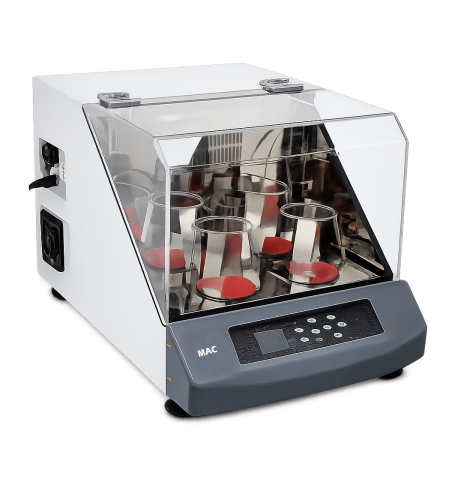

BENCHTOP SHAKING INCUBATOR "MAC" MSW-132(BT)
This is a small description
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
features
- The incubator shaker is one temperature controlled biochemical instrument combined incubation and shaking function. It is widely used in cell culture, fermentation, hybridization, biochemistry, research of enzyme and cell tissue, etc. which required higher quality of temperature controlling and shaking speed. It can dynamically and statically cultivate microbial cell and all kinds of strains.
- It is applicable to the oscillatory cultivation of various liquid and solid compounds such as biology, biochemistry, cells and bacteria in various universities, middle schools, petrochemical industry, health and epidemic prevention, environmental monitoring and other scientific research departments.
FEATURES AND BENEFITS
- Large-screen LCD, shows temperature, speed, working time. Menu operation interface, easy to operate.
- Microcomputer control temperature and oscillation frequency with timing functions, Built-in power-off protection can automatically resume operation after power on.
- Speed control : Intelligent Brushless DC motor, High speed accuracy.
- Studio at the bottom waterproof, Spills will not affect the normal operation of the machine.
Options
- Lotus clamps to cost extra. 50 ml (28 Nos.), 100 ml (24 Nos.), 150 ml (20 Nos.), 250 ml (15 Nos.), 500 ml (12 Nos.), 1000 ml (6 Nos.), 2000 ml (3 Nos.)
- Spare / Extra Platforms if required to cost extra.
Technical data
Specifications and models
Model
#OSI(BT)-300R(PRO)
Functions
Cyclotron Oscillation
Amplitude
Ø20mm
Temperature Resolution
0.1° C
Temperature Motion
±1° C
Temperature Range
5°C ~ 50°C
Rotary Speed
20 ~ 300rpm
Rotary Speed Precision
±1rpm
Chamber Material
Stainless Steel
Outer Shell
Steel sheet duly powder coated
Observation Window Material
Imported resin (PMMA)
Thermal Insulation Material
Polyurethane
Cooling System
Yes
Coolant
R134a
Heater
Stainless Steel Heating Tube
Air Circulation Mode
Horizontal Convection
Power Rating
0.8KW
Temperature Control Mode
LCD PID Intelligent Control
Cyclotron Control Mode
LCD PID Intelligent Control
Setting Mode
Change of rotation direction (Clockwise /Anti-Clockwise)
Temperature Display Mode
Touch Button Setting
Speed Display Mode
LCD Display
Timer
0 ~ 9999 min
Operation Function
Fixed value operation, timing function, bidirectional automatic switchover, auto stop, quick stop start
Temperature Sensor
PT-100 Sensor
Additional Function
Deviation correction, menu keys locked, power-off memory
Safety Device
Over temperature alarm, menu locked, gating system, power-off protection
Inner Chamber Size (W x D x H) mm
540 x 390 x 340 mm
Exterior Size (W x D x H) mm
580 x 870 x 530 mm
Shaking tray (W x D) mm
330 x 480 mm
Max Capacity of Shelf for single specification (ml/pc) for lotus clamps
50ml x 28 /100ml x 24 /150ml x20 /250ml x 15 / 500ml x 12 / 1000ml x 6 / 2000ml x 3 Nos.
Standard Shaking Platform
1No. lotus clamp holding platform supplied with unit as a standard accessory
Inside Volume
70 Ltrs.
Shelf Load Bearing
≤15kg/layer
Shelf Layer
1
Power Supply
AC 220V, 50/60Hz, 3.5A
Net Weight / Gross Weight
65 Kgs. / 85 Kgs.
