PORTABLE AUTOCLAVES

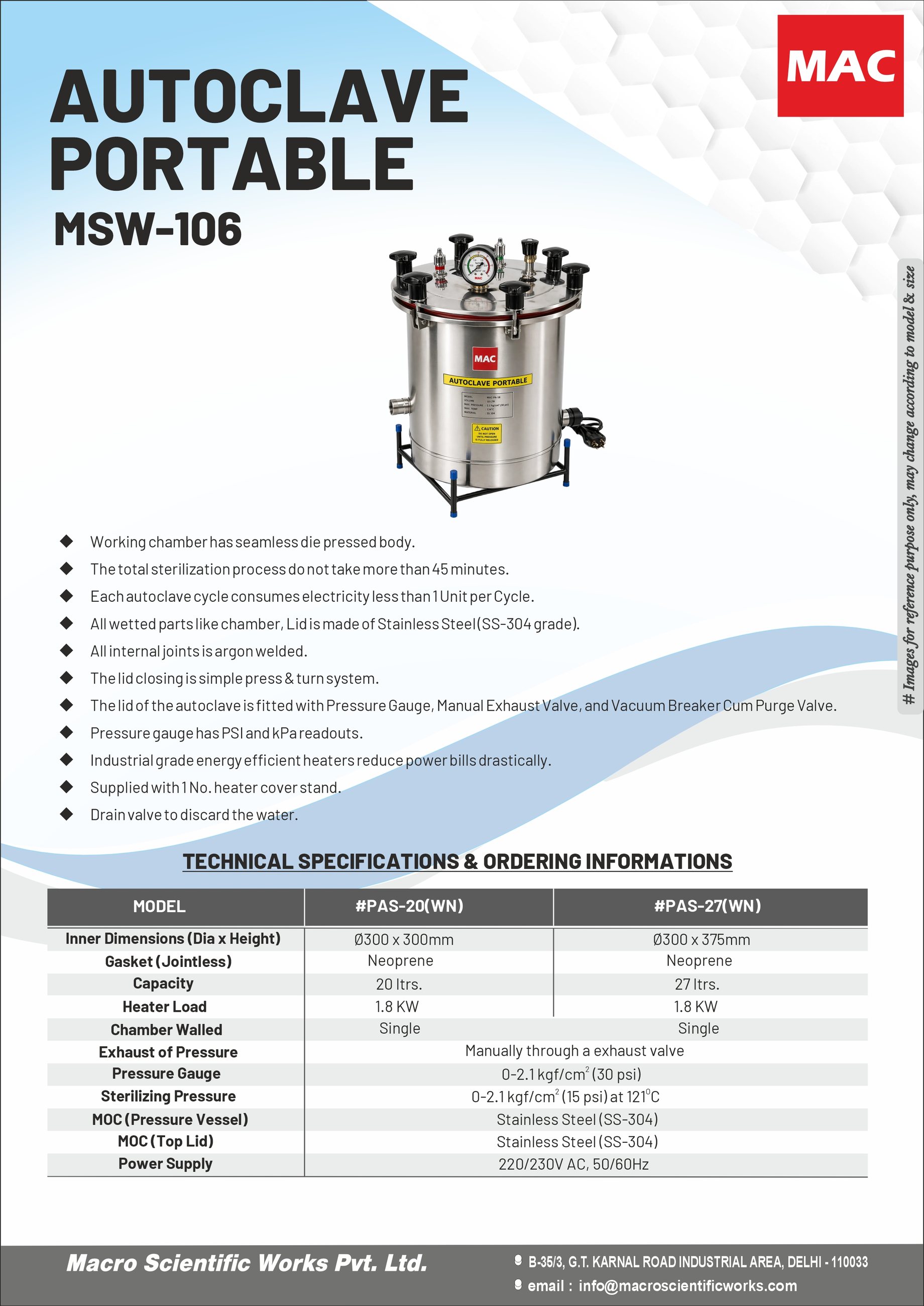

AUTOCLAVE PORTABLE (MANUAL ANALOGUE) “MAC” MSW-106
Standard single-walled Stainless Steel analog model for general sterilizing requirements fully with safety valve, exhaust valve, and pressure gauge
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
Features
- Our portable Autoclaves are most ideal for doctors, nursing homes, laboratories, dentists, etc.
- Most ideal for general laboratory requirement where samples in small batches are required to be sterilized.
- Hydraulically tested up to 40psi for user safety.
- Spring-loaded safety valve for pressure adjustment and a dead weight valve works as a safety device.
- Economy at your fingertips with low power consumptions.
- A seamless (joint less) body for single-walled units provides a sturdy and safe operation for the user.
- Low sterilization process time accounts for a higher number of batches accounting for the economy and faster results.
- Body, lid & heater cover made of Single-Walled Stainless Steel (SS-304).
- Simple and easy “Press & turn” system of the closing lid for single-walled units.
- Lid is fitted with Pressure Gauge, Safety Valve, Manual Exhaust Valve.
- Vacuum breaker-cum-purge valve works as a safety device.
- Moulded neoprene rubber gasket.
- Heater cover stand made of stainless steel (SS-304)
- Industrial grade energy efficient heaters reduce power bills drastically
Technical data
Specifications and models
| Model | Inner Dimensions (Dia x Height) | Gasket (Jointless) | Capacity | Heater Load |
|---|---|---|---|---|
| #PAS-20(WN) | 300x300mm | Neoprene | 20 Ltrs | 2.0 KW |
| #PAS-27(WN) | 300x375mm | Neoprene | 27 Ltrs | 2.0 KW |
Chamber Wall
Single
Exhaust of Pressure
Manually through a exhaust valve
Pressure Gauge
0-2.1 kgf/cm²(30 psi)
Sterilizing Pressure
0-2.1 kgf/cm² (15 psi) at 121°C
MOC (Pressure Vessel)
Stainless Steel (SS-304)
MOC (Top Lid)
Stainless Steel (SS-304)
Power Supply
220/230V AC, 50/60Hz
